API Parking Adaptors

The PA800 Series of parking adaptors for API couplers ensures bottom loading arms are correctly stowed and secured when not in use.

Parking adaptors can also be supplied to be used in conjunction with a proximity sensor (supplied separately). The proximity sensor once actuated can enable system interlocks.

Suitable for:

Features & Benefits
  • All parking adaptors have built in stops to ensure the coupler can not be opened whilst parked.
  • Parking adaptors can be supplied with a proximity switch to enable system interlocks.
Technical Information

Materials
Nose cone - Aluminium
Spring - Stainless Steel
Slider - Acetal
Stand - Painted Steel

Adjustment
PA801: None
PA811: Where Proximity is used, periodically grease sliding proximity switch (where supplied) by using grease nipple visible from face of nosecone.

Mounting
PA801 & PA811 bolt onto bracket supplied by customer.
PAx80x & PAx81x are free standing (bolt to concrete or skid floor).

Weight
PA801 - 0.9kg.
For other weights contact Liquip.

Ordering Information

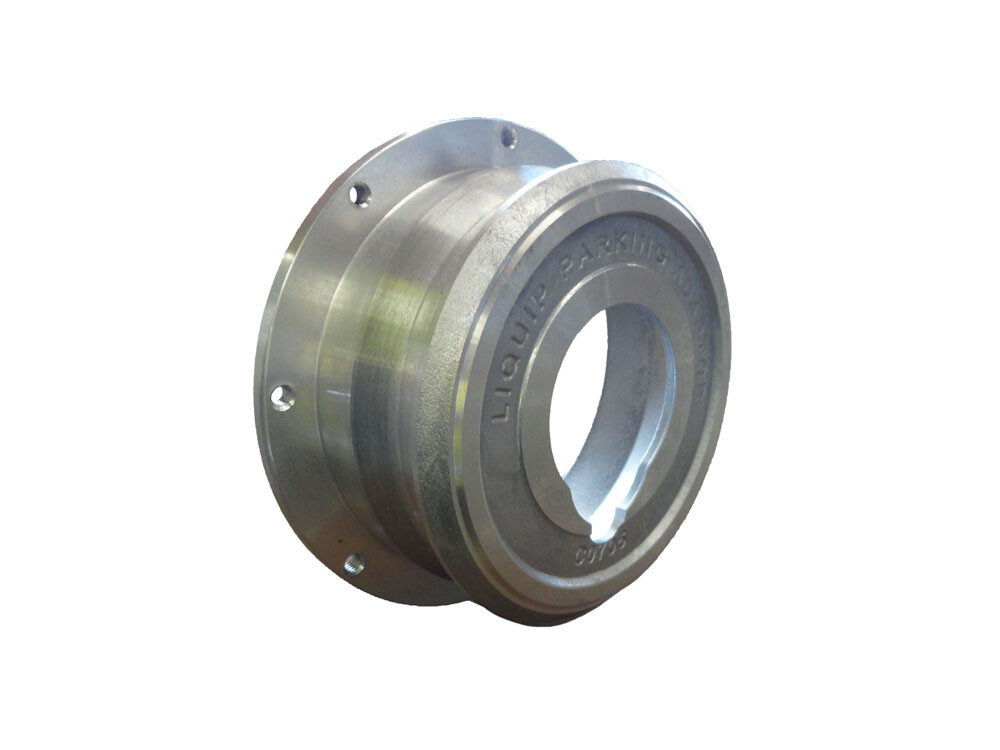

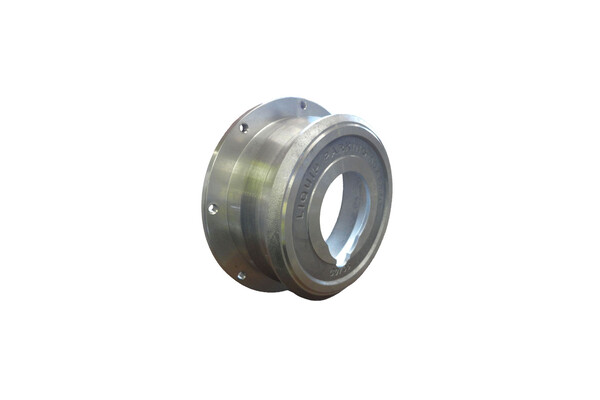

PA801: API Parking Adaptor.

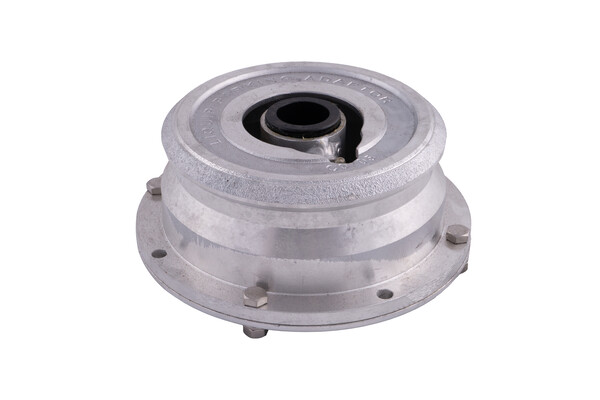

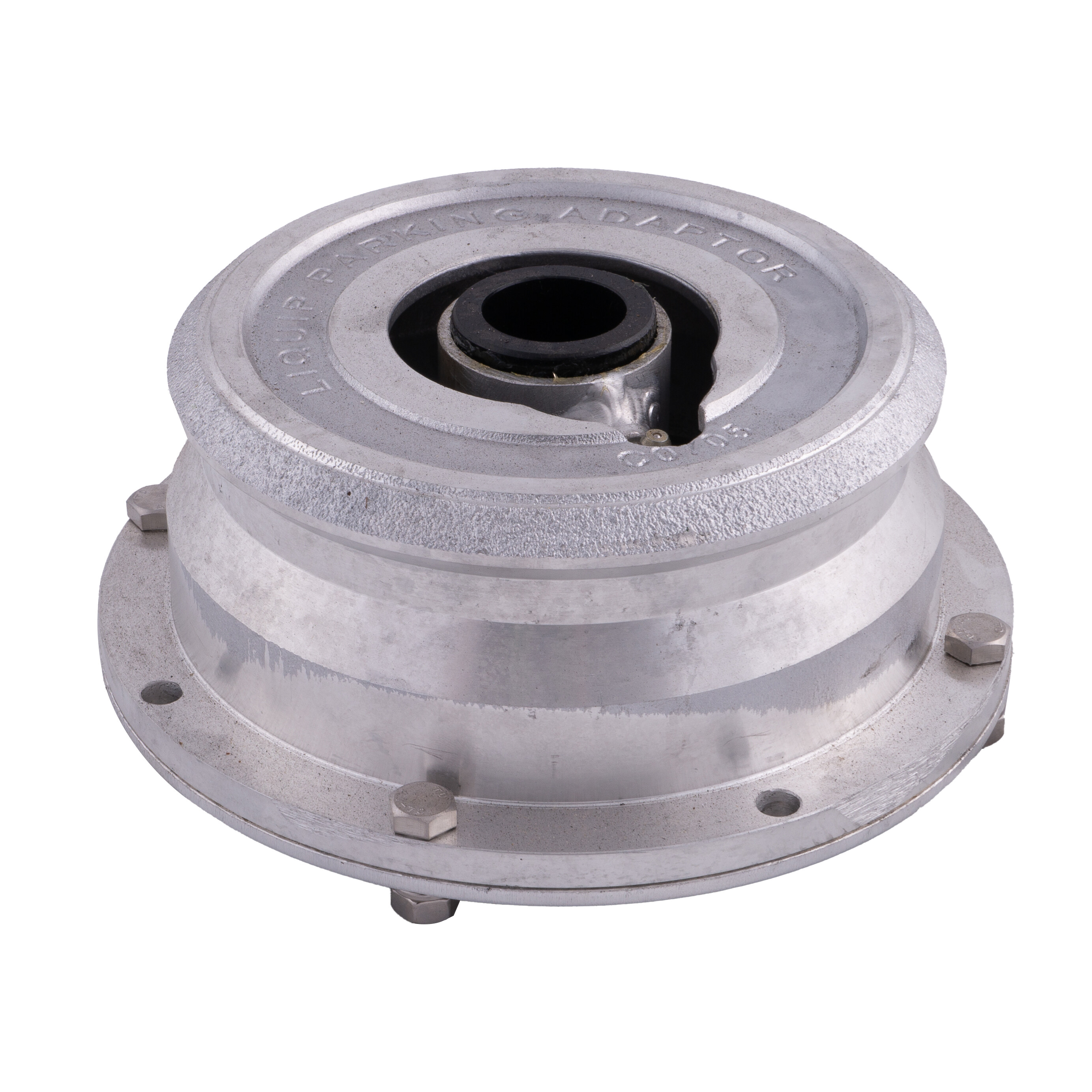

PA811: API Parking Adaptor with Proximity Sensor Holder.

PAS801: PA801 with Stand, Straight.

PAS811: PA811 with Stand, Straight.

PAA801: PA801 with Stand, Angled.

PAA811: PA811 with Stand, Angled.

Associated Equipment

5544: Proximity Switch Sensor.

LYNX Series Dry Break Coupler.
