AdBlue Dispensing Systems

AdBlue Dispensing Bowser by Liquip Victoria

Our speciality is the design, manufacturing and installation of customised AdBlue dispensing bowsers and systems.

When it comes to AdBlue dispensing solutions Liquip Victoria can assist commercial sites, fuel depots and service stations with standalone dispensers or integrated solutions part of our AdBlue tank solutions. We also design, build and install AdBlue Pumping Systems that support these dispensers.

Importantly our dispensers can be NMI certified for resale use and can also be fitted to Road Tankers or bulk mobile equipment. We can also custom design, manufacture, supply and fit these AdBlue Dispensing Systems to meet septic requirements. Liquip Victoria also has access to a number of pre-made solutions we can source and install should you have such a need.

CONTACT US

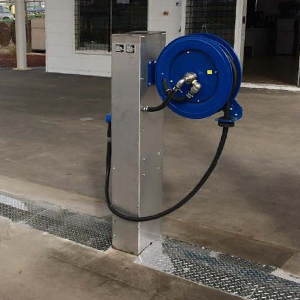

Private Commercial AdBlue Dispensing Systems

Our own designed and manufactured AdBlue 240 Volt Dispenser with full Stainless steel cabinet is made to be installed remotely to the tank or integrated into the tank package.

There are a number of
configurations to choose from:
► Standard dispenser with single
5 metre hose and display.
► Dispenser with dual
hose and dual display.
► Optional hose reel with
8 metres of hose.
► Hi Masts – 4 metre hose
masts with 8 metre hoses.
► Hazardous area approved option.

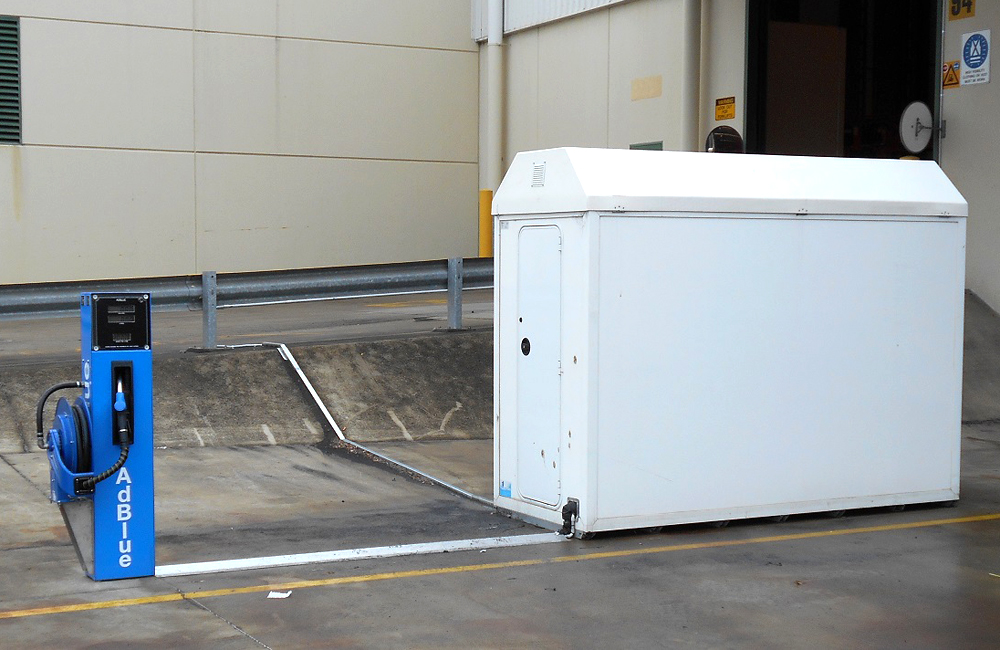

Retail AdBlue Dispensing Systems

This Retail AdBlue 240 Volt Dispenser (in an all stainless steel cabinet with an inbuilt NMI approved meter for resale use) is a robust, highly visible blue colour and small footprint solution for new or retrofit applications.

The small foot print (only 315 x 315mm) is designed for installing between existing fuel pumps or close to canopy poles or other smaller areas often found on existing service station sites where other standard large dispensers are difficult to install.

The unique design AdBlue dispenser can be installed directly onto concrete or similar so that power, data and product piping can be accessed directly into the side of the dispenser, which provides a very economical solution to excavating concrete. Alternatively, the AdBlue dispenser can be installed on a sump to access underground piping and wiring.

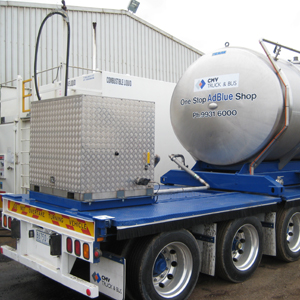

Road Tanker AdBlue Dispensing Systems

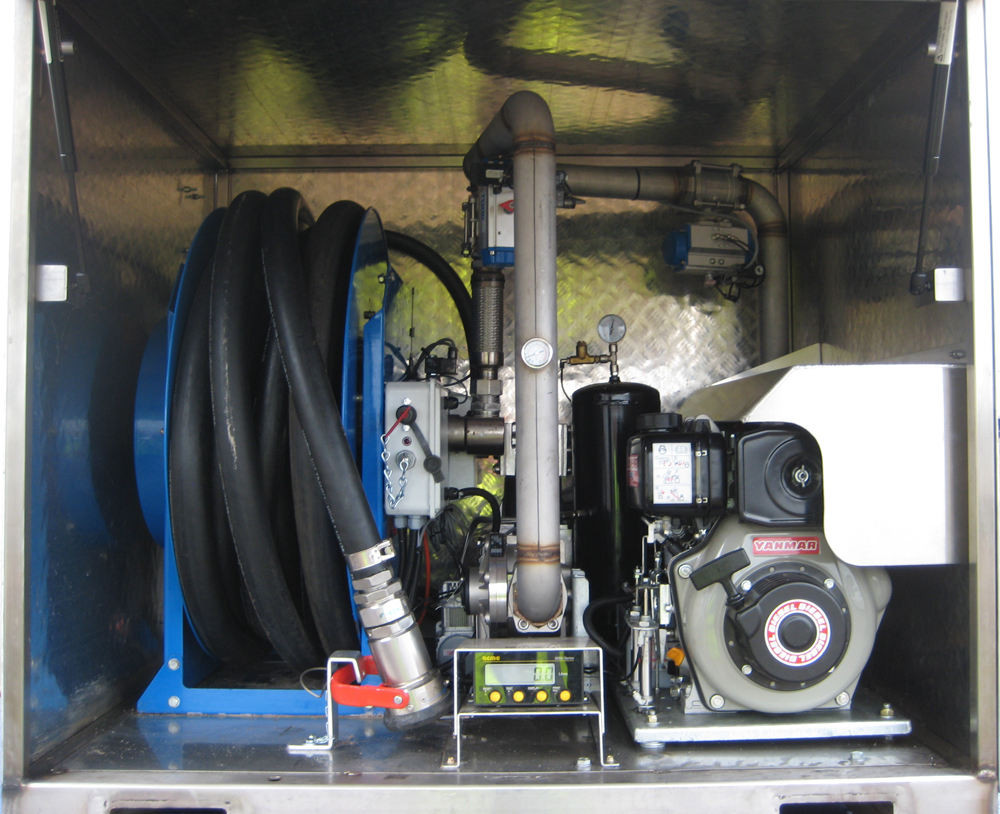

These Truck AdBlue Dispensing Systems, designed for road tankers or ISO containers are produced to be mounted underneath the tanker belly, behind the vehicle cabin or on a containers twist lock at the rear of ISO container Skel trailers.

Powered by a diesel pump engine, the pump delivers fast unloading of bulk tanks through a hose reel and drybreak connection. The retail system, with NMI approval for resale or non-retail package, all use high quality Stainless Steel components, meters and valves and are all installed in an enclosure to protect and provide a quiet operating solution.

Need to learn more about our AdBlue solutions?

For more information about our range of AdBlue Dispensing solutions please contact our dedicated AdBlue sales team.

CONTACT US

Frequently Asked Questions

  • What equipment do I need to dispense AdBlue on-site?

    To dispense AdBlue on-site you need a dedicated AdBlue storage tank (minimum 1,000L for most commercial operations), an AdBlue-compatible pump (standard fuel pumps are not suitable due to material incompatibility), a hose reel, and an AdBlue-rated nozzle. Liquip Victoria supplies complete AdBlue dispensing packages including tank, pump, hose reel, and nozzle as a turnkey system.

  • Can I store AdBlue in the same bunded area as diesel?

    No. AdBlue (diesel exhaust fluid) must be stored separately from diesel and other fuels. Crosscontamination of AdBlue with diesel is a serious problem — even small amounts of diesel can destroy an engine's SCR system. AdBlue storage tanks, pumps, and nozzles must be clearly marked and kept in a dedicated area away from fuel storage

  • :What is the shelf life of AdBlue and how should it be stored?

    AdBlue has a shelf life of approximately 12 months when stored correctly between 5degC and 25degC. It should be stored out of direct sunlight and away from extreme temperatures. Above 30degC, AdBlue degrades more rapidly. Tanks should be clearly labelled with the fill date. Liquip Victoria can advise on the correct storage setup to maximise AdBlue quality and shelf life.

  • What materials are compatible with AdBlue storage and dispensing equipment?

    AdBlue is highly corrosive to certain metals. Equipment must use materials compatible with urea-based solutions: HDPE (polyethylene) tanks are suitable; stainless steel is acceptable; copper, zinc, brass, and certain aluminium alloys are not compatible and will contaminate the fluid. All AdBlue dispensing equipment supplied by Liquip Victoria is manufactured from AdBlue-compatible materials.

  • What size AdBlue storage tank do I need for a fleet depot?

    For a depot with 5-10 trucks, a 1,000L to 5,000L AdBlue tank is typically sufficient when replenished regularly. Larger fleets of 20+ vehicles may require 10,000L to 25,000L bulk storage to reduce delivery frequency and cost. Liquip Victoria can advise based on your fleet size and daily AdBlue consumption.

  • Is on-site AdBlue dispensing cost-effective compared to buying drums

    Yes, significantly. Bulk AdBlue purchased in tank deliveries typically costs 30-50% less per litre compared to retail drums or jugs. For fleets consuming more than 500L per month, on-site bulk storage with a dispensing system typically pays for itself within 6-12 months. Liquip Victoria can provide a cost-benefit analysis based on your fleet's AdBlue consumption.
