Aviation Self Bunded Fuel Storage Tanks

Liquip Victoria HOST Aviation Self Bunded Tanks for Jet Fuel and AVGas

Store and dispense Jetfuel and AVGAS safely and effectively in a HOST Aviation Self Bunded Tank on a private airstrip, airport or airfield.



Today, our HOST Aviation Self Bunded Fuel Storage Tank range is designed to give you more value for money. Based on the proven HOST ISO Classic SBT design, they offer the lowest dollar per litre of storage for any Self Bunded Storage Tank available on the market. This range of tanks also complement the many other aviation airfield solutions offered by Liquip Victoria such as refuelling vehicles and refuelling skids.

 Built to UL142, AS1940, AS1692, AS1657
► Durable, modular and robust design
 Offers a more usable fuel volume
 Can store and dispense AVGAS and Jet Fuel
 Pumping solutions can be fitted: 40 – 800 L/pm
► Fuel Management Packages also available
 Complement your airfield with a Liquip Victoria Refuelling solution

Aviation Fuel Tanks

Liquip Victoria offers top-notch aviation fuel tanks in Australia. Our expertise in designing and supplying reliable aviation fuel storage solutions ensures the safety and efficiency of your operations.

Aviation Fuel Storage Tanks

Explore Liquip Victoria's range of high-quality aviation fuel tanks for sale. We provide industry-leading solutions that meet rigorous standards, guaranteeing secure and compliant storage for aviation fuel in Australia.

DOWNLOAD OUR HOST ISO CLASSIC SELF BUNDED TANK BROCHURE TO REFERENCE FROM


Interested in learning about the benefits and key advantages of on-site bulk liquid storage? Then read our article, 'Seven ways on-site bulk liquid storage saves time and money'


Introducing the
perfect match.

The HOST Aviation Self Bunded Tank fitted with a custom pumping and dispensing solution by Liquip Victoria



Self Bunded Tank Certifications

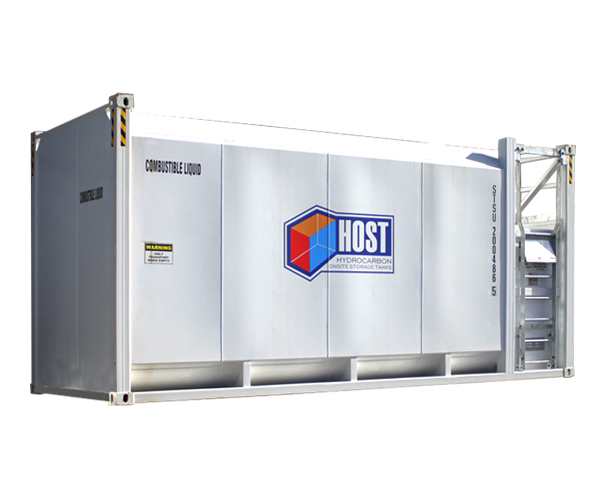

HOST Aviation Self Bunded AVGAS and Jet Fuel Tank

Based on the HOST ISO Classic range these tanks are a result of us listening to our customers and investing a great deal of engineering resources to address design shortfalls with other containerised tanks, whilst providing an even more economical solution to fuel storage than ever before.

Ultimate & Proven Design

The HOST Aviation Tanks Range offer:
► Single tanks to multi-million litre tank farms
ISO container design – 10’, 20’, 40’ and 48’ for ease of transportation
Designed to hold and dispense Jet Fuel and AVGAS
Ideally suited for use at airports or small or private aviation fields and remote landing strips

The range builds upon acquired knowledge and experiences and include key features that deliver you huge benefits, such as:
► Clean rounded lines on the inner tank eliminate stress points and areas for contamination to collect
Floor drains to a low point at the front of the tank for water removal
All tanks are intermodal. Standard containers can be transported by standard trucks or trains and moved by shipping container handling equipment, without cranes.

Ultimate Safety

Certified and tested to the highest global standards for bulk fuel storage, UL142, these tanks exceed all relevant Australian Standards for storage of flammable and combustible liquids. When empty, the tank is also an approved, truly intermodal container as classified by CSC to IMO standards.

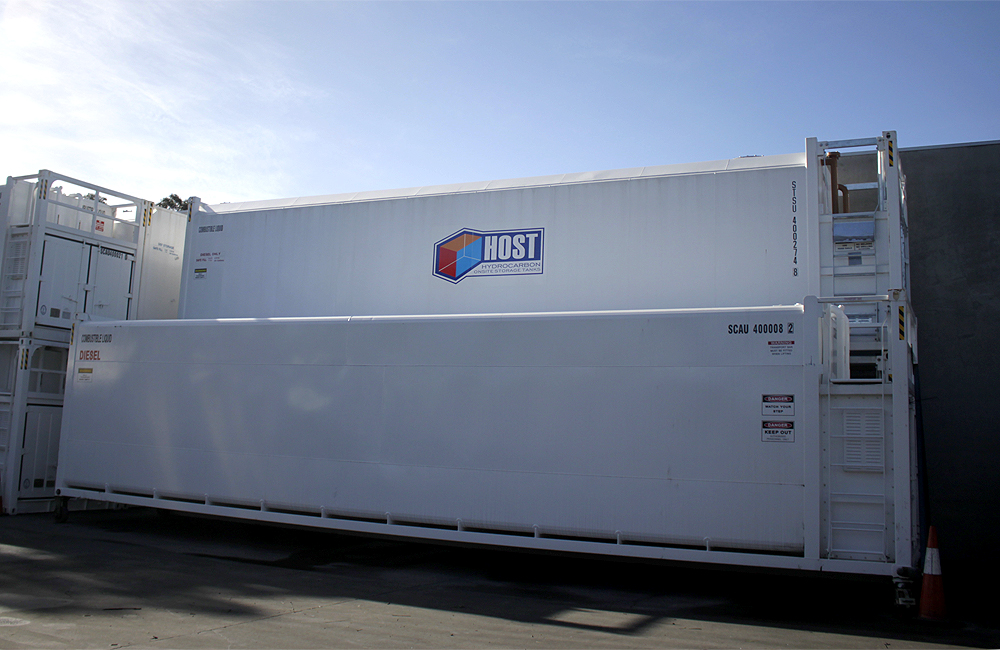

HOST Aviation Self Bunded Storage Tanks

Liquip Victoria HOST Aviation Self Bunded Tank

Standard Tank Features

> All tanks are built to UL approval (PLUS AS1940, AS1692, AS1657. A heavier duty design and structure than the Australian Standard).
> All tanks have rounded corners on both the top and bottom of the tank, providing extra strength in the construction and more importantly does not allow debris or water pooling in the corners or the bottom of the tank.
> Tanks have sloping floors (from the back to the front and from the sides to the middle). It ensures all water is pooling at the water well. Flat bottom tanks do not provide this benefit, this can result in water pooling and algae growth in the tank, potentially leading to a contaminated product. The water well has a suction tube installed for removal of water through the top of the tank.
> Tanks come standard with emergency vents on the primary tank and interstitial section or bunded part.
> All tanks are designed to be viewed from underneath as per AS1940 and more importantly to provide air flow to the base of the tank. The tank floor is elevated off the ground and is open at the sides allowing visual inspection and air flow to prevent moisture build up, which promotes corrosion on the bottom of the tank. Standard flat tanks don’t allow this type of airflow to naturally occur.
> Overfill valve, Anti-syphon valves and High Level Alarms are supplied as standard on all tanks.
> The fill line has a standard stainless steel 80 mm Isolation valve and Check valve fitted.
> All tanks come with an Anodised Dipstick.
> The pressure or suction pipe is fitted with an 80 mm Isolation valve.
> The tanks roof is designed to cascade water off its surface, reducing corrosion.


HOST Self Bunded Aviation Tank Sizes

Our standard Self Bunded Bulk Liquip Storage Tank packages


What can be included in you tank and the sizes available



Tank Sizes & Standards

Sizes range  from 12,000 to 115,000 litres, and all tanks are manufactured to UL142 (which exceeds AS1940, AS1692 and AS1657).

Fitting options

PUMPS
- Light Vehicle – 80 L/pm
- Heavy Vehicle or high flow – 160 L/pm
- Mining Equipment – 800 L/pm
- Ebsray Unloading Pump – up to 1000 L/pm

FUEL MANAGEMENT SYSTEMS
- Smartfill, Compac, Transponder and others
- White Card / Company Cards
- CCDCA (Credit Cards)
- Remote Reporting via Web (No Fees)

TANK GAUGES
- OPW Nano Tank Gauging
- Remote viewing of tank volumes
- High and Low Alarms

METERS
- Electronic or Mechanical Registers
- TCS meters or other

BULK DISPENSING EQUIPMENT
- Liquip Loading Arms – up to 1800 L/pm)
- Liquip Control Consoles and Metering
- Liquip Over Fill Control Systems
- Liquip Dead Man Switch


Did you know?

When you buy an SBT from Liquip Victoria, you are not just buying a tank, you’re buying a complete bulk liquid storage solution. Not to mention that we offer a complete turnkey solution as part of the purchase.

This includes:
► Selection and advice on the best suited tank solution
► Custom tailored pump dispensing and monitoring system design with multiple options to choose from
► Fit-out of pump dispensing equipment and systems onto the tank
► Delivery, installation and set-up of the tank on-site, along with commissioning
► Option of on-going servicing and maintenance of tank on-site.


To discover more about our complete range of HOST petrochemical storage solutions please contact a member of our sales team. With HOST you can cost-effectively dispense in a more productive, safe and efficient way.
