In-line Strainers

Liquip offers a range of lightweight in-line strainers that are typically mounted on prime movers or in mobile pumping systems to protect downstream equipment from debris and foreign objects.

  • Protects down stream equipment such as meters and pumps from debris and
    foreign objects.
  • Lightweight inexpensive aluminium suction line strainer.
  • Avaliable with a variety of filter mesh sizes to suit various applications.
  • Durable cast aluminium design.
  • Low pressure drop.
  • 100mm (4") TTMA flanged for easy installation.
  • Easy cleaning via access through a quick release lid.
  • Maximum vacuum to 90kPa.
  • Maximum working pressure to 700kPa.
  • Strainer basket can only be fitted for correct direction of flow via 4" TTMA flanges.
  • Nitrilie Seal.

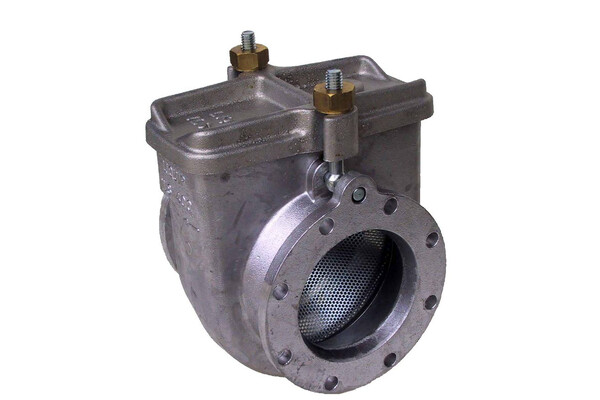

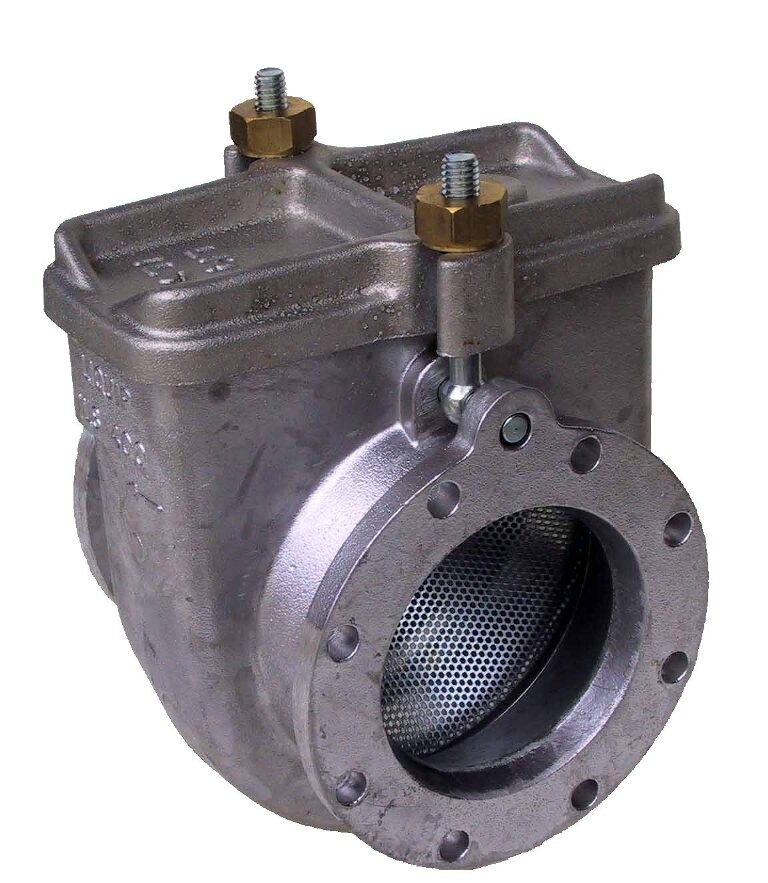

ILS400: Aluminium In-Line Strainer 4" TTMA flange both end with quick release lid for easy cleaning.

ILS400TPA: Aluminium In-Line Strainer 4" TTMA flange both end with quick release lid for easy cleaning with 1/4" NPT boss.

ILS400-3:Aluminium strainer basket, zinc plated finish, no mesh.

ILS400-3-80P:Aluminium strainer basket, stainless steel finsih, 80 mesh.

ILS400-3-200P:Aluminium strainer basket, stainless steel finish, 200 mesh.

ILS400-3-350P:Aluminium strainer basket, stainless steel finsih, 250 mesh.

ILS400-3-40S:Aluminium strainer basket, stainless steel finsih, 40 mesh (typically ARMY spec).

LBV450VG: Aluminium 4" Butterfly Valve.

BF4-SG-40: 4" TTMA sightglass (40 mm thick).

BF4-SG-25: 4" TTMA sightglass (25 mm thick).
