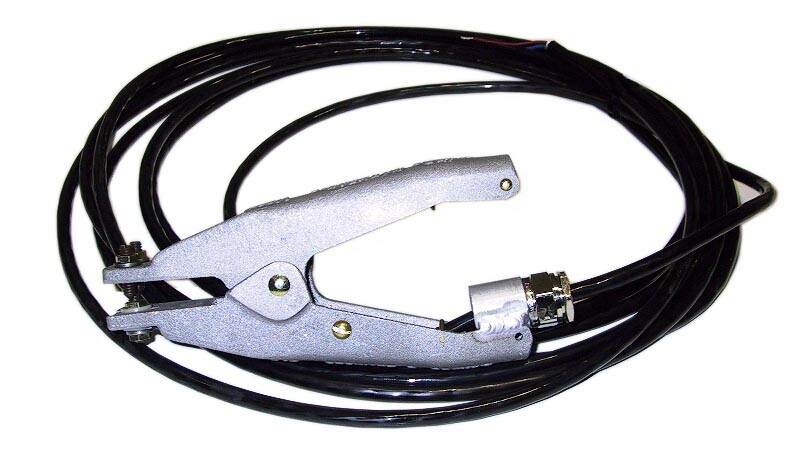

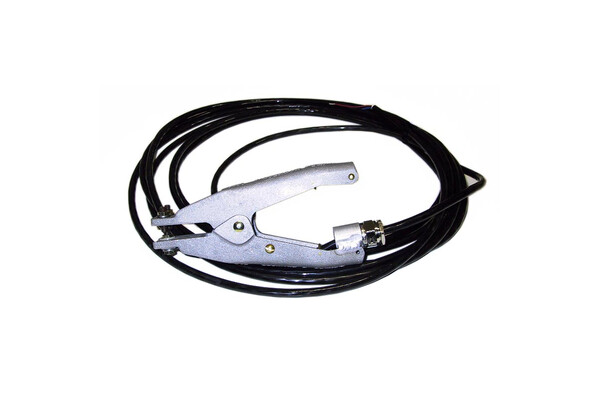

Earth Assurance Clamps

The EAC200 series for earth assurance clamp ensures correct grounding of truck chassis to eliminate static build-up.

The EAC200 series earth assurance clamp is used to discharge the static accumulation of hazardous products during storage and transportation.

Features & Benefits
  • 8m cable length supplied.
  • Can be supplied with straight cable or self-coiling cable.
Technical Information

Operation
Before connecting any other equipment to truck, attach clamp to a suitable grounding point no more than 12.7 mm (½") thick.

 Materials
-Clamp body - cast aluminium.
-Cable - polyurethane sheathed.
-Contacts - cone point grub screws – stainless steel.

Weight
1.3kg (clamp and cable).


Cable Data
8m cable length supplied
EAC201S has straight black cable.
EAC202S has self-coiling blue cable.

Ordering Information

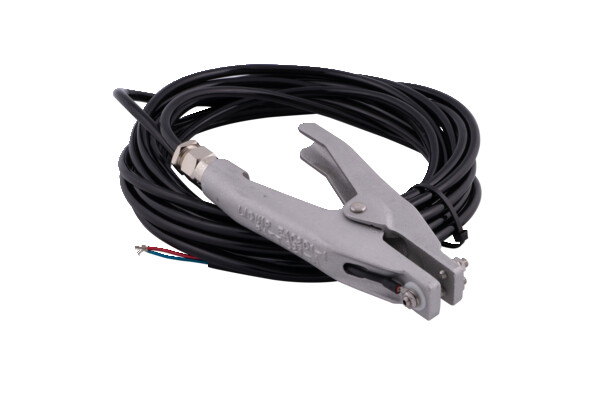

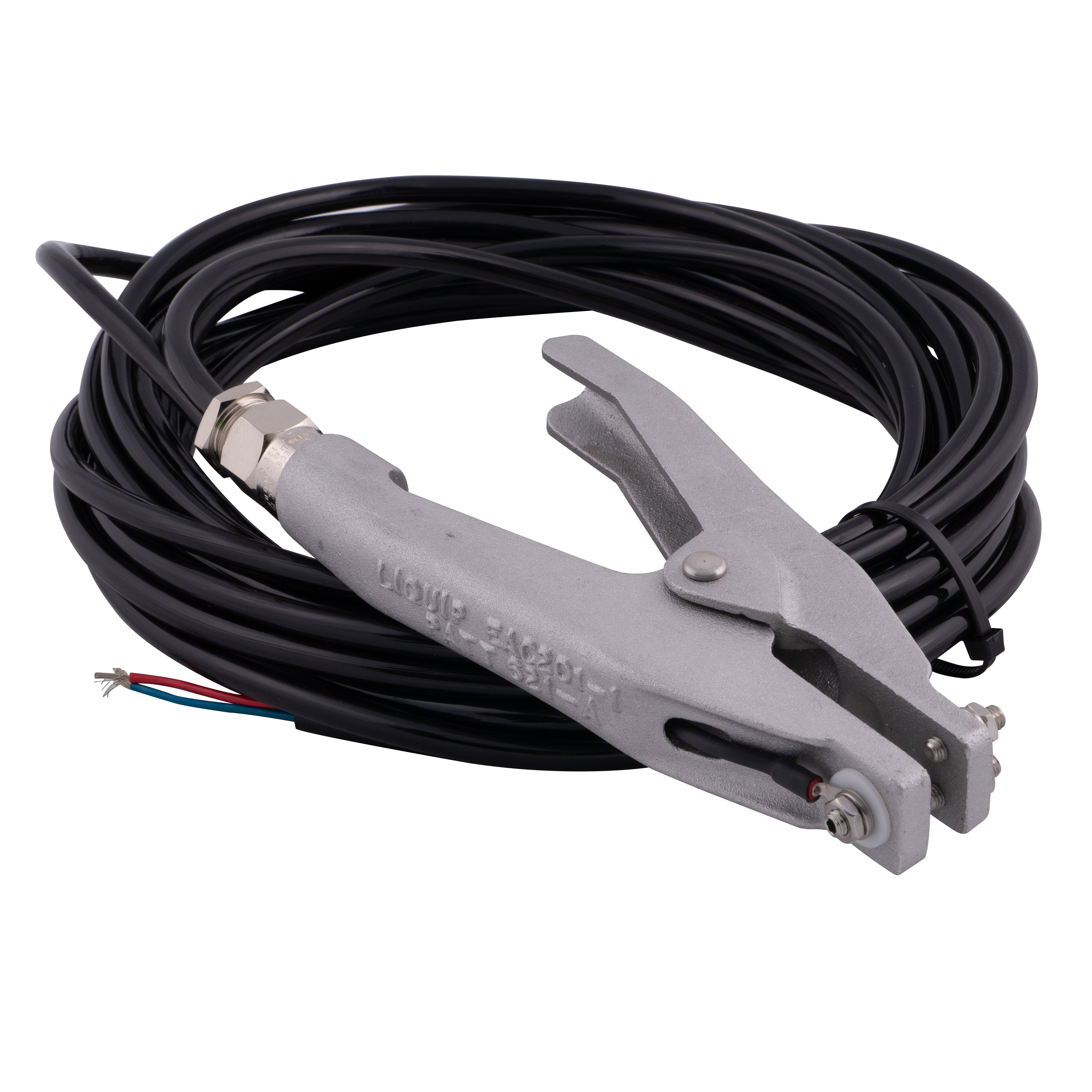

EAC201S: Earth Assurance clamp with 8m straight black cable.

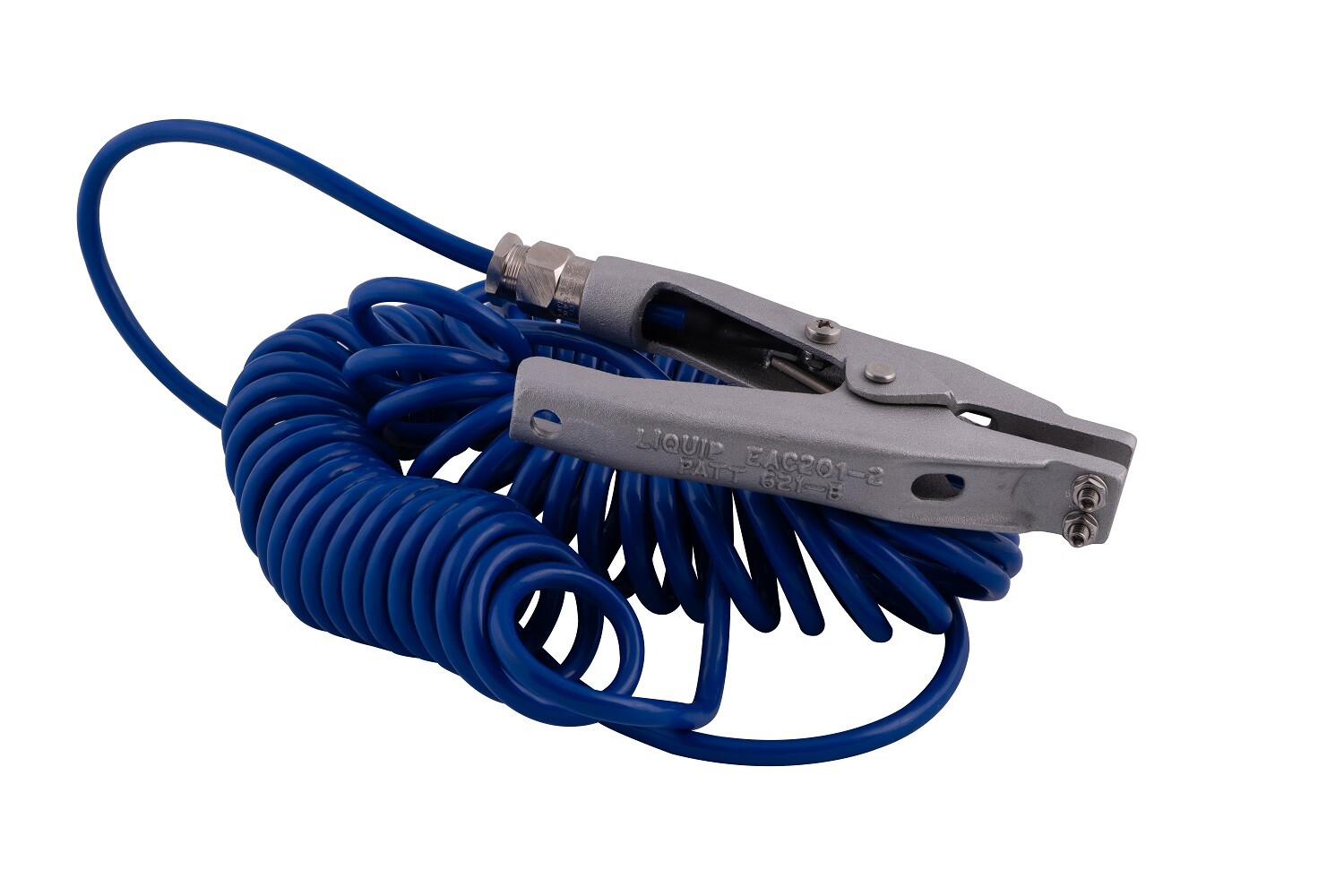

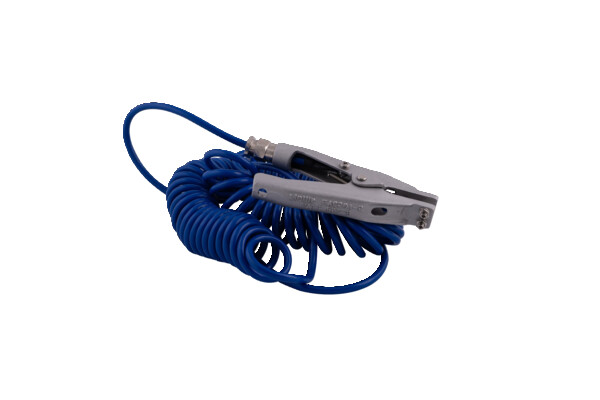

EAC202S: Earth Assurance clamp with 8m self-coiling blue cable.

Associated Equipment

RM140D: Overfill monitor (typical configuration for Australian market).

RM140E: Overfill monitor (typical configuration for Global markets).
