Single Plane Swivels SJF Series - Stainless Steel

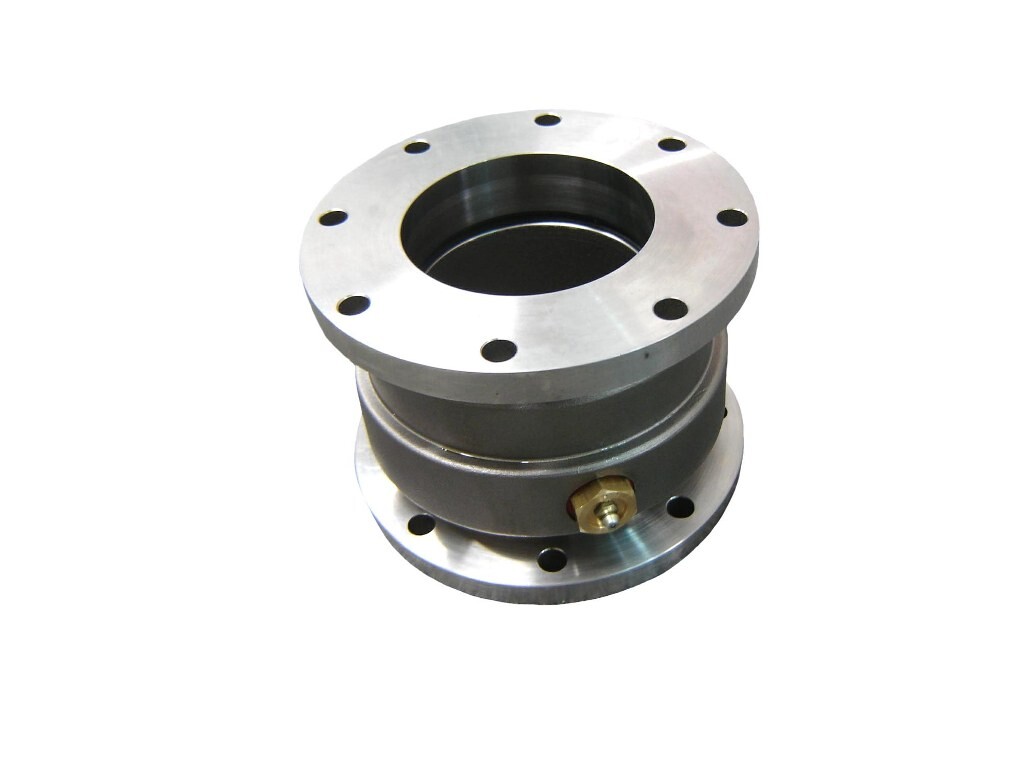

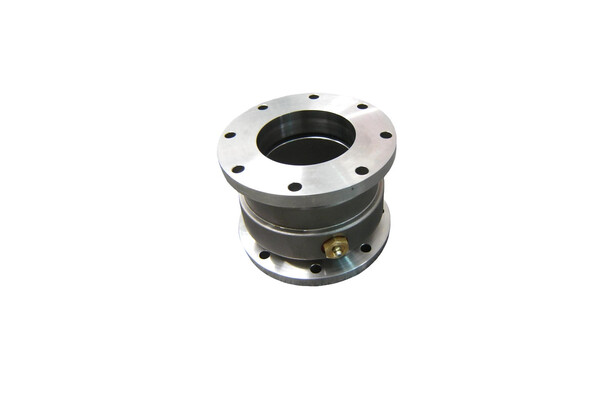

Liquip offers a range of straight swivel joints for the fabrication of loading arms and pipe work requiring up to 360° rotation. The SJF101L swivels are also commonly used in Aviation hydrant cart systems.

Liquip swivels offer exceptional performance and reduced downtime and maintenance.

Suitable for :



Features & Benefits
  • Cost-effective way of achieving a rotating joint, for loading arms or machinery.
  • Heavy-duty stainless steel construction.
  • Incorporates the well-known high load, low wear Liquip principle of ball with needle bearing combination, used in Liquip's extensive range of loading arms like the LBM800 loading arm.
  • Purpose designed primary face seal and multiple o-rings which isolate the bearing pack for added safety.
  • 4” TTMA flange to suit industry standard installations.
  • The greasing system also includes the Liquip trade-mark of a pressure relief outlet to ensure correct lubrication, by ejecting old grease and particles that can cause wear (non standard option).
  • Standard grease is suitable for aviation requirements use and has a high chemical compatibility.
Technical Information

Materials
Body: Stainless steel 316L.

Seals
Viton™ (SJF101L)
Teflon™ (SJF101T)

Design Pressure
900 kPa.

Test Pressure
1,500 kPa.

Mounting
4" TTMA.
Using M10 bolts or studs. For high load applications high tensile bolts or studs must be used. If the unit is mounted vertically, the female component must be fitted on top to prevent water and dust ingress.

Adjustment or Service
Re-grease at maximum six-month intervals dependent on service conditions.

Weight
9 kg.

Ordering Information

SJF101L - Stainless Steel Flanged Swivel Joint – 100mm TTMA Flanges, Viton Main Seal.

SJF101T - Stainless Steel Flanged Swivel Joint – 100mm TTMA Flanges, Teflon Main Seal.
