HOST Self Bunded AdBlue Tank

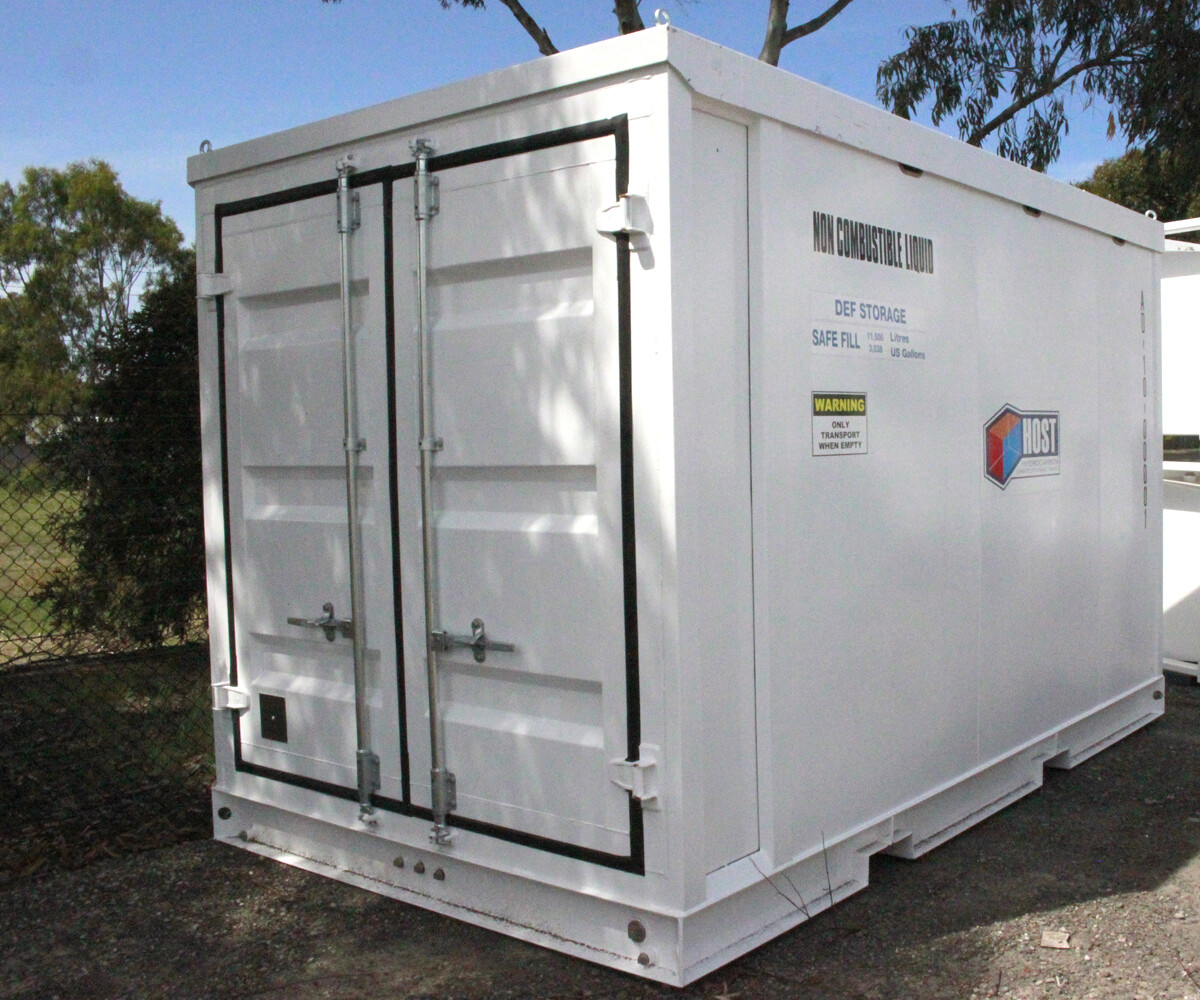

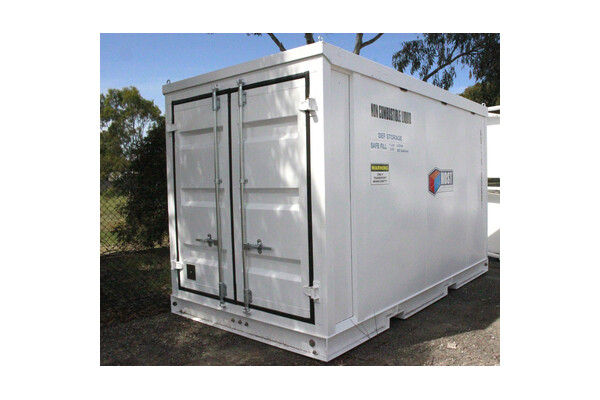

HOST Self Bunded AdBlue Tanks

When you’re looking to safely store and dispense AdBlue we can assist with either a custom or standardised storage solution. Our Standard SBTs range in size from 3,000 L to 20,000 L (safe fill levels). Although AdBlue is a clear, non-toxic and safe to handle liquid solution, it is highly corrosive, so it must be stored and transported carefully. Our main range of storage solutions take this risk into account and are manufactured with a 40 mm insulated Stainless Steel internal tank to ensure a consistent internal temperature and to prevent against contamination with other products and the environment.

Features and Benefits
Standard AdBlue Tank Features

> High quality steel outer tank shell, primed and painted with 2 coat marine grade epoxy (260 um minimum coat finish)
> Stainless Steel internal tank with hatch with 2 inch and 3 inch ports
> 40mm of insulation between the two tank walls to assist in controlling and stabilising the AdBlues temperature.
> Front door access, with high quality heavy duty container locking bars
> Stainless steel suction and fill line piping
> 2 inch Stainless Steel Drybreak Adaptor fitted to fill line
> 2 inch Stainless Steel Y-Strainer fitted to suction line
> Pump (Dependent on number of dispensers)
> Stainless Steel Overfill Valve
> Stainless Steel Anti-syphon Valve
> Grate mesh floor in pump bay section
> Manway on top to access internal Stainless Steel tank.
> Lifting lugs on roof  for easy movement
> Forklift access points for safe lifting and movement
> Side access panels for remote pipe connections
> Optional level gauge and sump sensor

Ordering Information

Associated Equipment

Most HOST Self Bunded AdBlue Tanks can be suplied with:

PUMPS
- AdBlue Solution Pump – On tank and Off Tank

FUEL MANAGEMENT SYSTEMS
- Smartfill, Compac, Transponder and others
- White Card / Company Cards
- CCDCA (Credit Cards)
- Remote Reporting via Web (No Fees)

TANK GAUGES
- OPW Nano Tank Gauging
- Remote viewing of tank volumes
- High and Low Alarms

METRES
- Electronic or Mechanical Registers
- TCS meters or other
