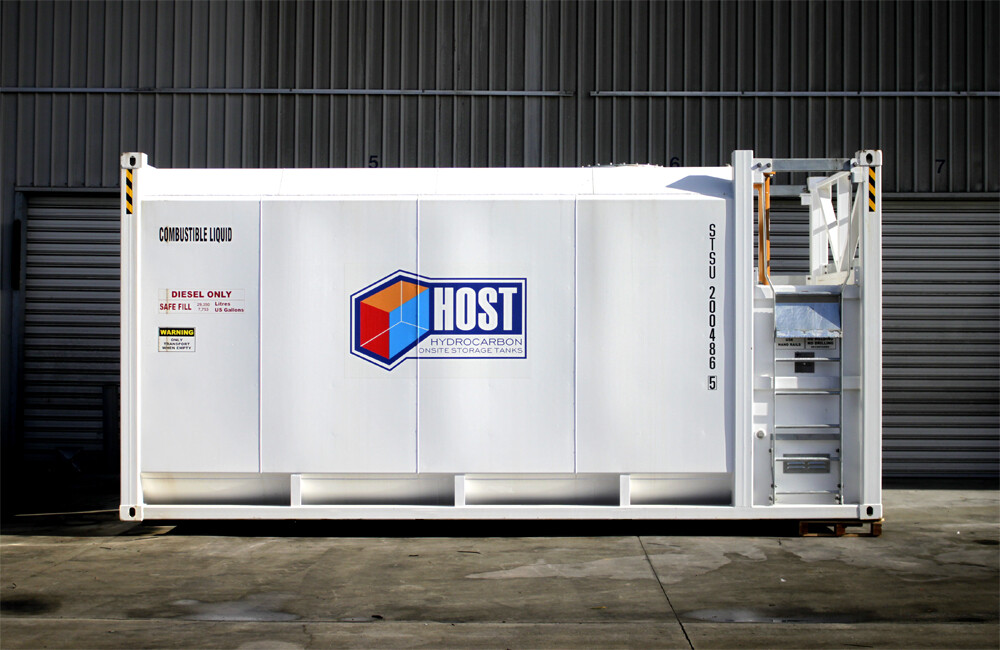

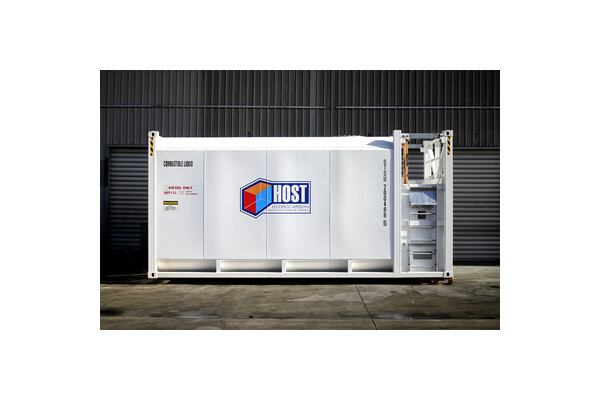

HOST ISO Classic Self Bunded Storage Tanks

HOST ISO Classic Self Bunded Storage Tanks

We offer a large range of fuel and chemical compliant Self Bunded Storage Tanks. These tanks can be custom fitted with meters, dispensing pumps, loading equipment and payment systems.

Ranging in size from 12,000 to 115,000 litres (max fill level), this range is manufactured to UL142 (which meets and exceeds AS1940, AS1692 and AS1757).

Designed to give you more value for money, this proven design offers the lowest dollar per litre of storage of any Self Bunded Storage Tank available on the market and offer users:

► Excellent fuel cleanliness
► Durable, modular and robust design
► More usable fuel volume
► Pumping solutions: 40 – 80 L/pm
► Duel Fuel tank versions: Diesel / AdBlue (DEF)
► Diesel, Petrol, Lubricants and or Oil storage options
► Custom pump dispensing fitouts

Talk to us today about the right tank for you.

Need a smaller tank? We also have a range of smaller Self Bunded Tanks, ideally suited to users looking to store and dispense smaller volumes of liquid. View the Cubes Range here.

Features & Benefits

HOST ISO Classic Self Bunded Tank features:
► All tanks are built to UL approval.
(A heavier duty design and structure than the Australian Standard).
► All tanks have rounded corners on both the top and bottom of the tank, providing extra strength in the construction and more importantly does not allow debris or water pooling in the corners or the bottom of the tank.
► Tanks have sloping floors (from the back to the front and from the sides to the middle). It ensures all water is pooling at the water well. Flat bottom tanks do not provide this benefit, this can result in water pooling and algae growth in the tank, potentially leading to a contaminated product. The water well has a suction tube installed for removal of water through the top of the tank.
► Tanks come standard with emergency vents on the primary tank and interstitial section or bunded part.
► All tanks are designed to be viewed from underneath as per AS1940 and more importantly to provide air flow to the base of the tank. The tank floor is elevated off the ground and is open at the sides allowing visual inspection and air flow to prevent moisture build up, which promotes corrosion on the bottom of the tank. Standard flat tanks don’t allow this type of airflow to naturally occur.
► Overfill valve, Anti-syphon valves and High Level Alarms are supplied as standard on all tanks.
► The fill line has a standard stainless steel 80 mm Isolation valve and Check valve fitted.
► All tanks come with an Anodised Dipstick.
► The pressure or suction pipe is fitted with an 80 mm Isolation valve.
► The tanks roof is designed to cascade water off its surface, reducing corrosion.

Technical Information & Sizes

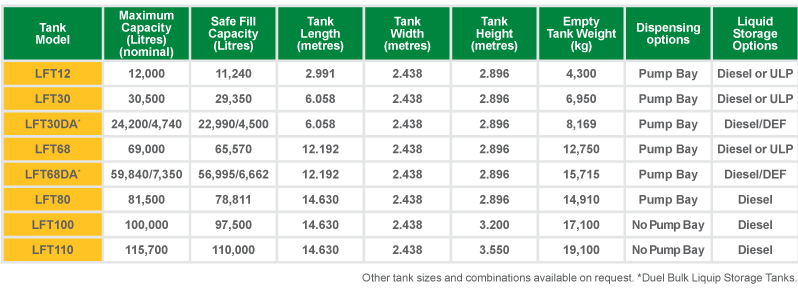

HOST ISO Classic Tank Sizes and Specifcations

Ordering Information

LFT12: 12,000 L

LFT30: 30,500 L

LFT30DA*: 24,200 L / 4,740 L

LFT68: 68,000 L

LFT68DA*: 59,840 L / 7,350 L

LFT80: 81,500 L

LFT100: 100,000 L

LFT110: 115,700 L

*Duel Bulk Liquid storage tanks - Diesel / AdBlue (DEF)


Associated Equipment

Most HOST ISO Classic standard Self Bunded Bulk Liquip Storage Tank packages can be designed to include:

PUMPS
- Light Vehicle – 80 L/pm
- Heavy Vehicle or high flow – 160 L/pm
- Mining Equipment – 800 L/pm
- AdBlue Solution Pump – On tank and Off Tank
- Ebsray Unloading Pump – up to 1000 L/pm

FUEL MANAGEMENT SYSTEMS
- Smartfill, Compac, Transponder and others
- White Card / Company Cards
- CCDCA (Credit Cards)
- Remote Reporting via Web (No Fees)

TANK GAUGES
- OPW Nano Tank Gauging
- Remote viewing of tank volumes
- High and Low Alarms

METRES
- Electronic or Mechanical Registers
- TCS meters or other
