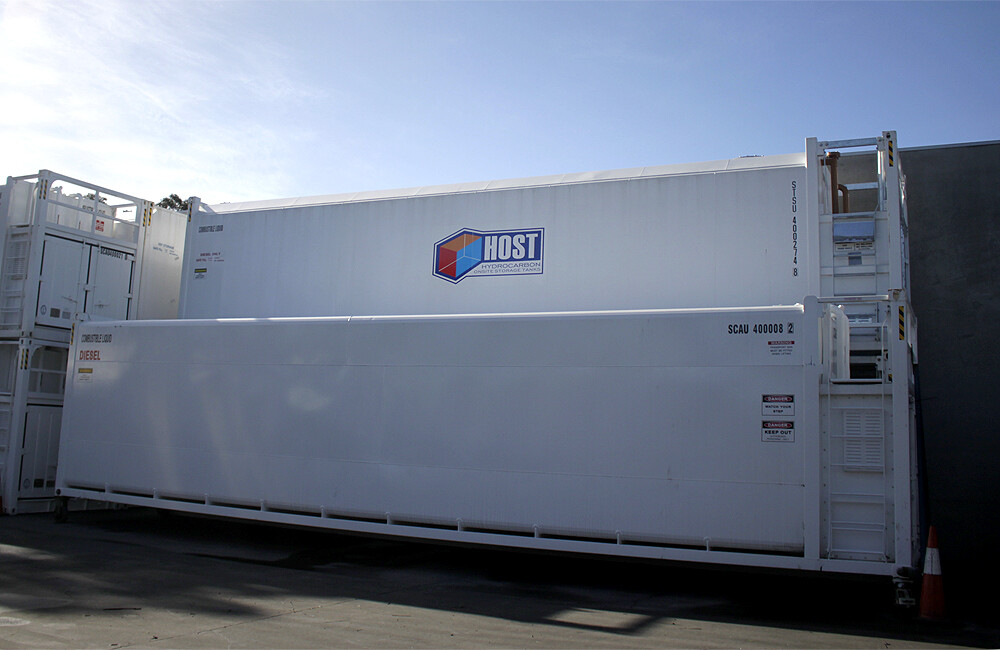

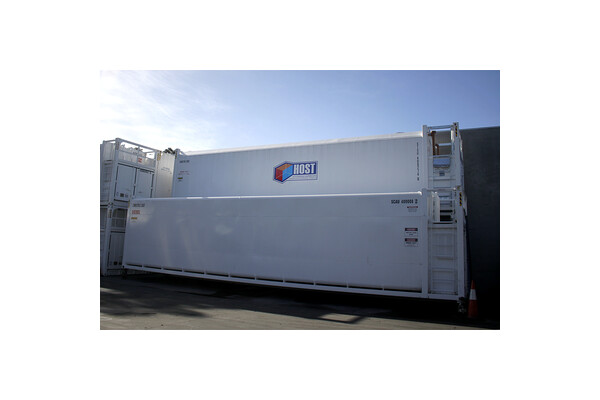

HOST Aviation Self Bunded Storage Tanks
The HOST Aviation Tank range is a new solution for the aviation industry. The exacting demands and requirements of the aviation industry have driven the design and innovation process and these additions are evident in the features that now reside in these new high quality and cutting edge SBTs. The Aviation range is now available in all of the current HOST ISO Classic sizes.
Ranging in size from 12,000 to 115,000 litres (max fill level), this range is manufactured to UL142 (which meets and exceeds AS1940, AS1692 and AS1757).
Designed to give you more value for money, this proven design offers the lowest dollar per litre of storage of any Self Bunded Storage Tank available on the market and offer users:
► Excellent fuel cleanliness
► Durable, modular and robust design
► More usable fuel volume
► Pumping solutions: 40 – 80 L/pm
► Aviation Jet Fuel and AVGas
► Custom pump dispensing fitouts
Talk to us today about the right tank for you.
HOST Aviation Self Bunded Tank features:
► All tanks are built to UL approval.
(A heavier duty design and structure than the Australian Standard).
► All tanks have rounded corners on both the top and bottom of the tank, providing extra strength in the construction and more importantly does not allow debris or water pooling in the corners or the bottom of the tank.
► Tanks have sloping floors (from the back to the front and from the sides to the middle). It ensures all water is pooling at the water well. Flat bottom tanks do not provide this benefit, this can result in water pooling and algae growth in the tank, potentially leading to a contaminated product. The water well has a suction tube installed for removal of water through the top of the tank.
► Tanks come standard with emergency vents on the primary tank and interstitial section or bunded part.
► All tanks are designed to be viewed from underneath as per AS1940 and more importantly to provide air flow to the base of the tank. The tank floor is elevated off the ground and is open at the sides allowing visual inspection and air flow to prevent moisture build up, which promotes corrosion on the bottom of the tank. Standard flat tanks don’t allow this type of airflow to naturally occur.
► Overfill valve, Anti-syphon valves and High Level Alarms are supplied as standard on all tanks.
► The fill line has a standard stainless steel 80 mm Isolation valve and Check valve fitted.
► All tanks come with an Anodised Dipstick.
► The pressure or suction pipe is fitted with an 80 mm Isolation valve.
► The tanks roof is designed to cascade water off its surface, reducing corrosion.
The following HOST aviation product codes can be used when ordering:
LFT12: 12,000 L
LFT30: 30,500 L
LFT68: 68,000 L
LFT80: 81,500 L
LFT100: 100,000 L
LFT110: 115,700 L
Most HOST Aviation Self Bunded Bulk Liquip Storage Tank packages can be designed to include:
- Light Vehicle – 80 L/pm
- Heavy Vehicle or high flow – 160 L/pm
- Mining Equipment – 800 L/pm
- AdBlue Solution Pump – On tank and Off Tank
- Ebsray Unloading Pump – up to 1000 L/pm
FUEL MANAGEMENT SYSTEMS
- Smartfill, Compac, Transponder and others
- White Card / Company Cards
- CCDCA (Credit Cards)
- Remote Reporting via Web (No Fees)
- OPW Nano Tank Gauging
- Remote viewing of tank volumes
- High and Low Alarms
- Electronic or Mechanical Registers
- TCS meters or other
