Turbine Inc. LPG Turbine Meters

Liquip are the exclusive  Australia/New Zealand distributor for USA based Turbines Inc's LPG metering product line.

Turbines, Inc., is a leader in the design and manufacture of accurate turbine flow metering solutions. Their flow meters are field-proven to deliver performance in volatile environments with unmatched reliability, greater efficiency and higher value.

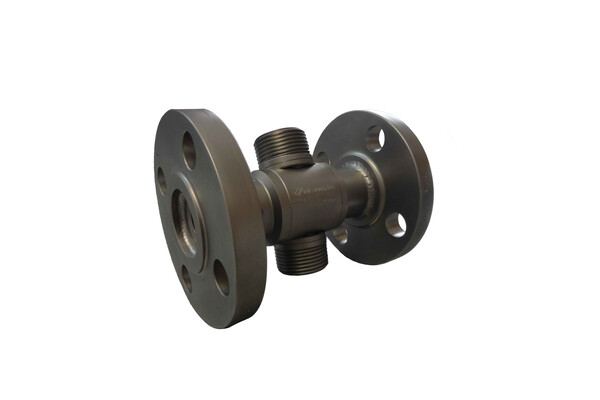

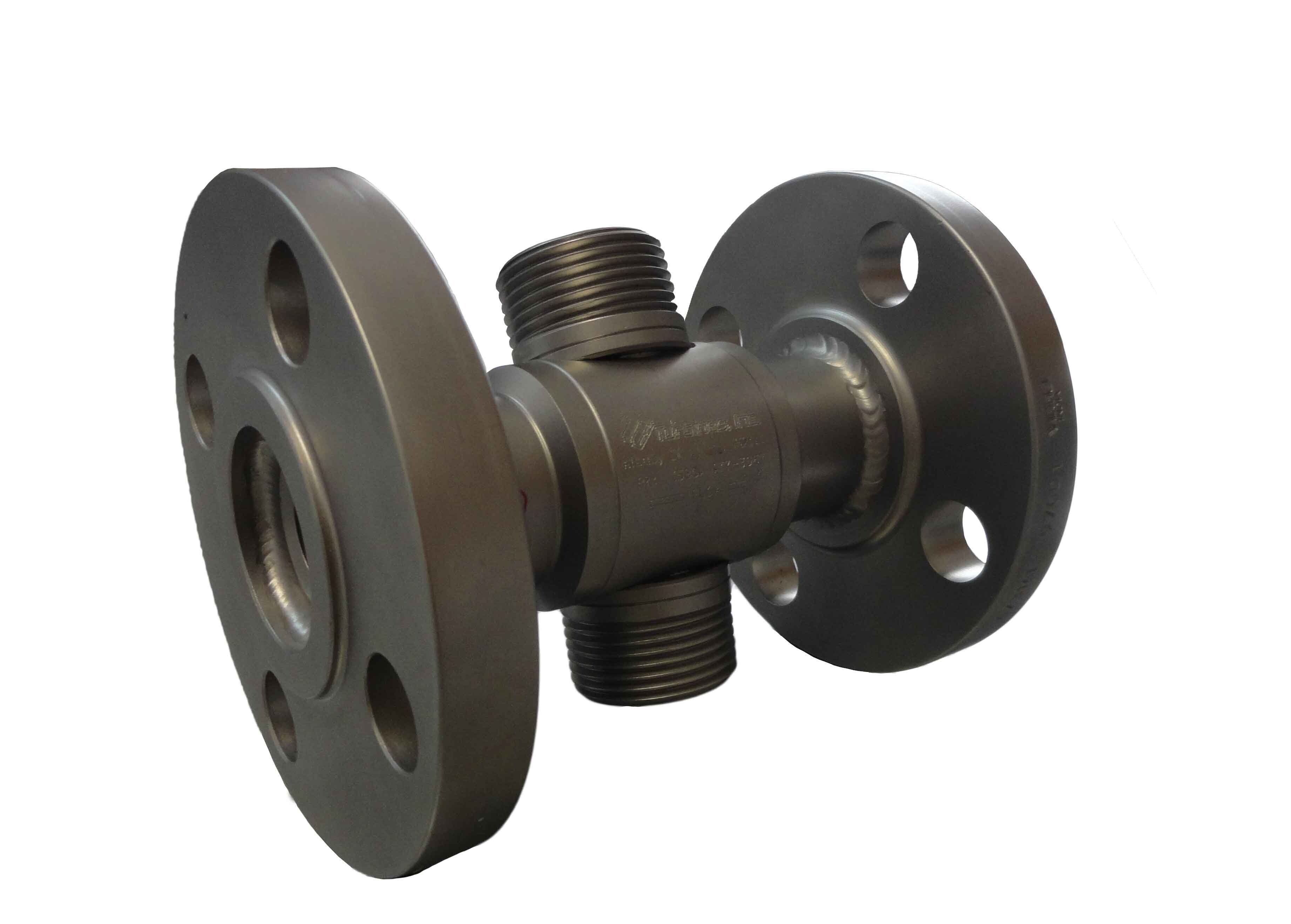

HA Series - High Accuracy LPG meters

Turbines’ High Accuracy turbine flow meters are built with
extremely tight tolerances only achievable through precision manufacturing and stringent quality control.

Features & Benefits
  • Australian NMI approved for use with Liquip’s electronic registers (DFV series).
  • Suitable for use in applications where hosereel flowrates between 15 - 710 LPM are required.
  • Customers now have a choice of meter for LPG use thanks to Turbine’s mounting footprint which allows for direct drop in replacement of other meters.
Technical Information

Calibration
+/- 0.5% over standard flow range.

Repeatability
+/- 0.1% over standard flow range.

Linearity
+/- 0.5% over flow range.

Operating temperature
-267°C to +230°C (for other temperatures consult factory).

End Connection
Flanged 300 lb (same mounting as many similar LPG
meters on the market for direct drop in replacement).

Flow Rate
HA0100-F150: 15 to 510 LPM.
HA0150-F150: 30 to 710 LPM.

Ordering Information

HA SERIES METERS

1" TURBINE METERS

IECEx APPROVED COILS
HA0100-F150IECEXZ: Turbine Kit 1” 150# Flanged S/S

Complete with IECEX Coils & Enclosures.

HA0100-F300IECEXZ: Turbine Kit 1” 300# Flanged S/S
Complete with IECEX Coils & Enclosures.

STANDARD COILS
HA0100-F150Z: Turbine Kit 1” 150# Flanged S/S
Complete with STD Coils & Enclosures.

HA0100-F300Z: Turbine Kit 1” 300# Flanged S/S
Complete with STD Coils & Enclosures.

1½” TURBINE METERS

IECEX APPROVED COILS
HA0150-F150IECEXZ: turbine Kit 1½” 150# Flanged S/S complete with IECEX Coils & Enclosures.

HA0150-F300IECEXZ: Turbine Kit 1½” 300# Flanged S/S complete with IECEX Coils & Enclosures.

STANDARD COILS
HA0150-F150Z: Turbine Kit 1½” 150# Flanged S/S complete with STD Coils & Enclosures.

HA0150-F300Z: Turbine Kit 1½” 300# Flanged S/S complete with STD Coils & Enclosures.

SPARE PARTS

HA-901430: Standard Magnetic pickup coil for Turbine Inc HA Series (1 piece).

HA-901447: IECEx approved Magnetic pickup coil for Turbine Inc HA Series (1 piece).

HA-Y-3-EX: 1” NPT 90° Explosion-proof coil enclosure with cap for Turbines Inc HA Series.
