Truck Plugs with Pneumatic Interlock

Liquip offers truck plug with ground assurance and pneumatic interlock to suit 2 and 5 wires overfill systems with 3 or 4 pin bayonet fastening (J slots).

The design is unique in that it ensures grounding of the tanker to the gantry by using the mounting bolts inside the truck plug.

The pressure switch suit tha latest generation of trucks and allows loading to take place when the pressure is sufficient to open all valves and vents

Primary interlock valve can be used to lock the truck brakes.

Secondary interlock can be used to operate several other air-operated devices to prevent loading or damage from tanker drive-aways

Features & Benefits
  • 3 and 4 bayonet style J slots fixing to industry standard.
  • Allow loading to take place when the pressure is sufficient to open all valves/vents.
  • Interlock can be used to lock truck brakes.
  • Allows for overfill protection with added ground assurance.
  • Sufficient room to easily install and mount dummy probe.
Technical Information

SPECIFICATION

  • 4 or 3 pin bayonet fixing to industry standard
  • 10 pin as standard.
  • Ports M20 conduit (straight) thread.
  • Mounting by 2 stainless steel bolts 8mm dia via acetal insulating bushes.
  • (bolts not supplied)
  • 4mm air line for air signal.
  • 6mm air line to main air supply (operating pressure 4 bar).

WEIGHT

  • 2.2 kg

MATERIALS

  • Aluminium nose-cone, hard anodised.
  • Stainless steel pins and terminator.
  • Acetal mounting block.
  • Aluminium enclosure with neoprene seal.
  • PVC cap. (Order separately).
Ordering Information

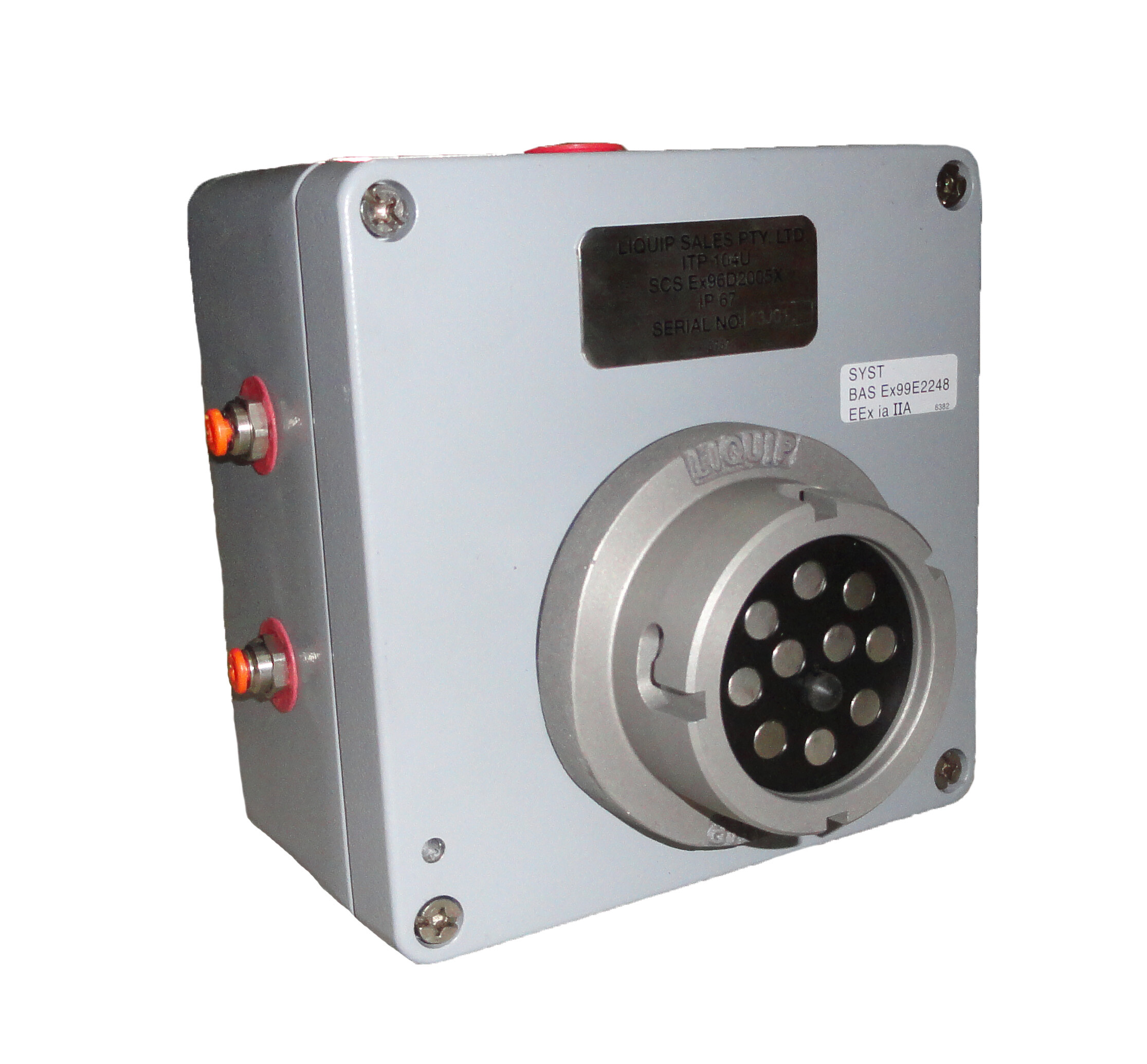

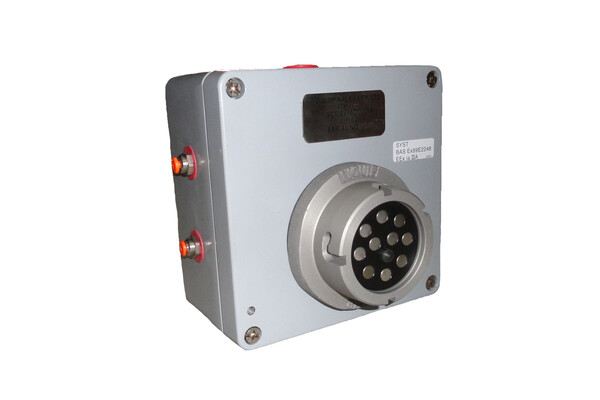

ITP104U: 4 pin bayonet with pneumatic interlock for Europe.
ITP103U: 3 pin bayonet with pneumatic interlock for Europe.
ITP104: 4 pin bayonet with pneumatic interlock.
ITP103: 3 pin bayonet with pneumatic interlock.
ITP114: 4 pin bayonet with pressure switch only.

Associated Equipment

5069: Truck Plug Dust Cap.
DP305: 5 Channel Dummy Probe for 2 wire systems.
DP307: 7 Channel Dummy Probe.
LDP202: Aluminium 2 wire Overfill Probe.
LDP205: Aluminium 5 wire Overfill Probe.
GP100 Series: Overfill Gantry Plugs.
