Gantry Plug Parking Adaptors

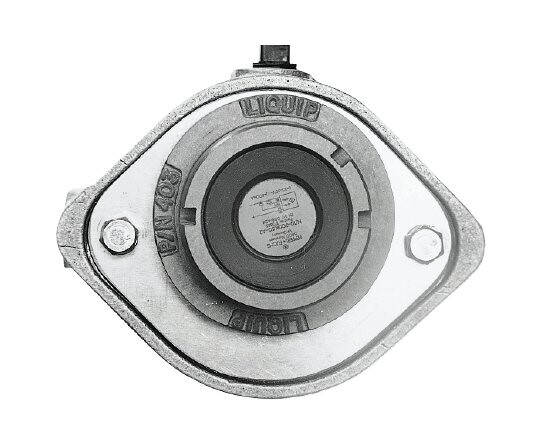

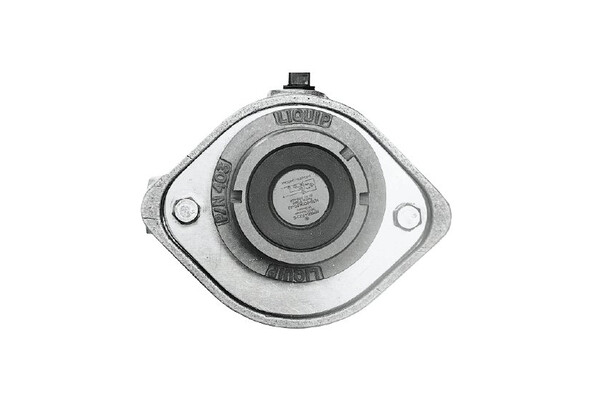

Liquip offers the TPA series gantry plug parking adaptors to suit both 3 or 4 pin bayonet fastening (J-slots) gantry plugs. The TPA series adaptors are supplied with a provision to mount and adjust a proximity switch.

TPA gantry plug parking adaptors provide a safe positive electronic interlock that can be used with the terminal automation system (TAS) to ensure the gantry plug has been disconnected from the loading vehicle before permission to leave the gantry is granted.





Features & Benefits
  • Ensures the gantry plug has been disconnected from the loading vehicle before permission to leave the gantry is granted.
  • When the gantry plug is connected, the proximity switch sends a signal to the terminal TAS for various user functions.
  • Prevents damage to loading bay due to possible drive-aways.
Technical Information

Materials
Aluminium nose-cone, hard anodised.
Acetal mounting block.
Aluminium body and cover plate.
Dust cap - supplied separately.

Mounting
3 and 4 bayonet fixing to industry standard.
Conduit ports 1/2” NPT (straight) thread, two options.
Mounting by 2 stainless steel bolts 8mm dia.

Operation Instructions
Mount the parking adaptor in close proximity to the gantry monitor so that when parking the loop of the gantry plug wire is free and is not interfering with normal operations.

A suitable proximity switch is fixed inside the parking adaptor, when the gantry plug is disconnected from the loading vehicle it is connected to the parking adaptor.

When the gantry plug is connected the proximity switch reads and sends a signal which can be used in various ways

Proximity Switch
Proximity switch size M30 x 1.5 thread specification to customer requirements.

Weight
1.3kg.

Ordering Information

TPA3: 3 J-slot bayonet gantry plug parking adaptor.

TPA4: 4 J-slot bayonet gantry plug parking adaptor.

Associated Equipment

5069: Truck Plug Socket Dust Cap - Blue.

TP103: 3 J-slot Truck Plug.

TP104: 4 J-slot Truck Plug.

GP103: Gantry plug, 3-pin bayonet, Navy Blue, supplied with cable & gland.

GP104: Gantry plug, 4-pin bayonet, Black, supplied with cable & gland.

GP114Z: 4-pin bayonet gantry plug with quick release connector and gland.

GP204: 4-pin bayonet gantry plug with straight cable.
