Overfill Probe Extensions and O-rings

Liquip offers a range of probe extensions and O-rings for LDP Series Overfill Probes.

Probe extensions are available in aluminium and stainless steel. They are either 80mm or 222mm in length.

Ordering Information

Extensions

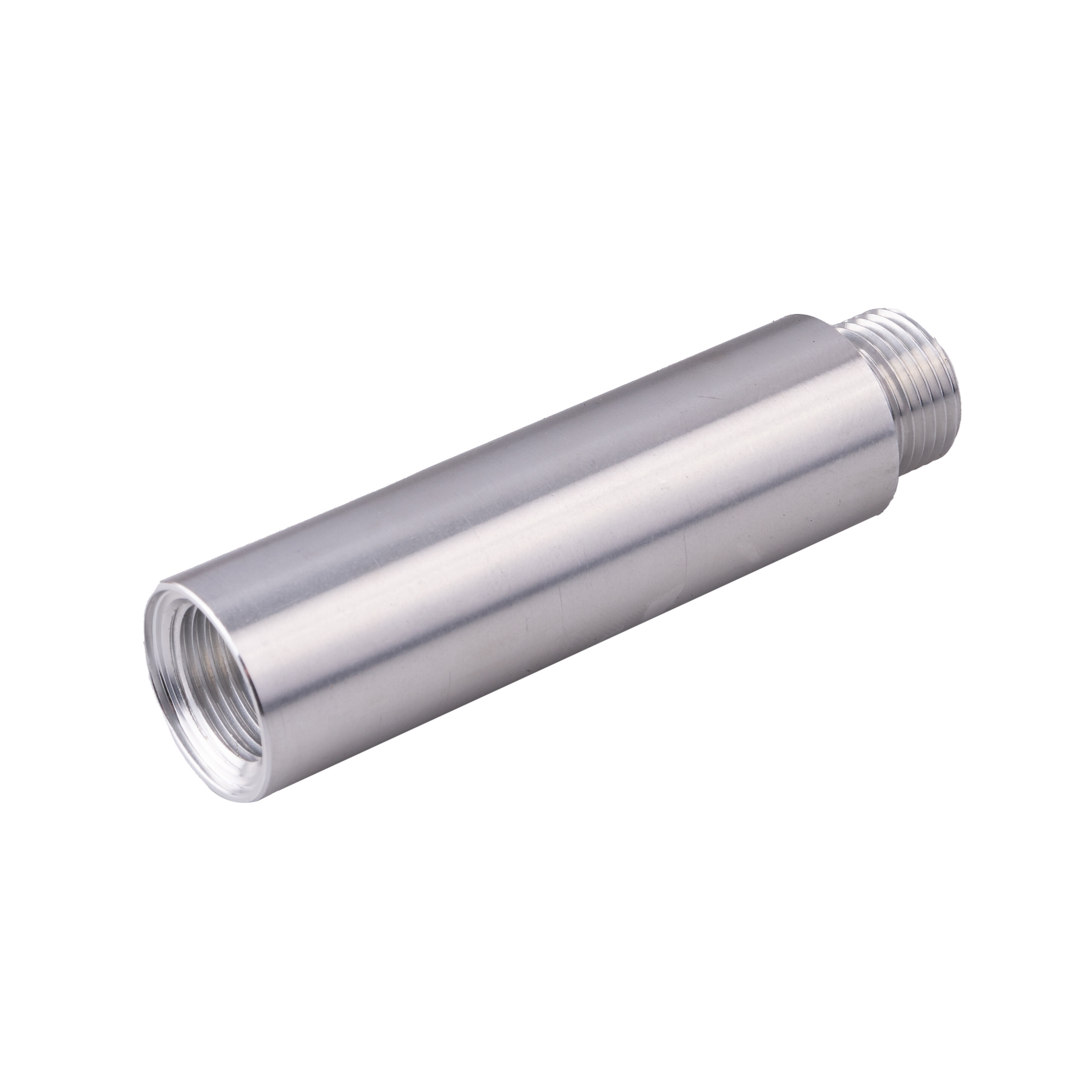

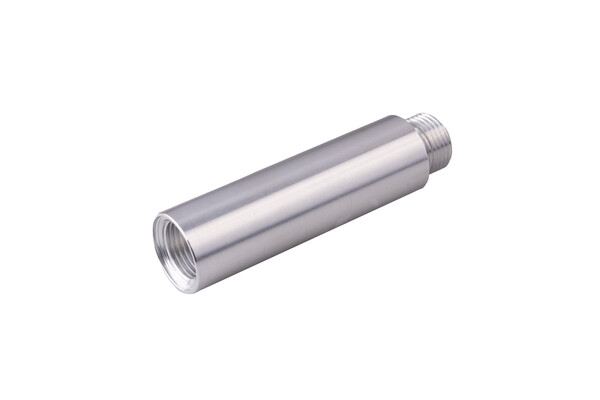

LDP102-4: Standard Aluminium probe extension (80mm).

LDP105-2: Long Aluminium probe extension (222mm).

LD102-4SS: Standard Stainless Steel probe extension (80mm).

LDP105-2SS: Long Stainless Steel probe extension (222mm).

O-Rings

7612V: O-ring Viton™️ probe LDP extension.

7612K: O-ring FFKM probe LDP extension.

Associated Equipment

LDP202: 2 wire Aluminium Overfill Probe.

LDP205: 5 wire Aluminiun Overfill Probe.

LDPFILL-1Z: 2 Wire Probe, Aluminium Body, Viton Seals (1 compartment kit c/w standard extension).

LDPFILL-2Z: 2 Wire Probe, Aluminium Body, Viton Seals (2 compartment kit c/w standard extension).

LDPFILL-3Z: 2 Wire Probe, Aluminium Body, Viton Seals (3 compartment kit c/w standard extension).

LDPFILL-4Z: 2 Wire Probe, Aluminium Body, Viton Seals (4 compartment kit c/w standard extension).

LDPFILL-5Z: 2 Wire Probe, Aluminium Body, Viton Seals (5 compartment kit c/w standard extension).

LDPFILL-6Z: 2 Wire Probe, Aluminium Body, Viton Seals (6 compartment kit c/w standard extension).

LDPFILLXL-2Z: 2 Wire Probe, Aluminium Body, Viton Seals (2 compartment kit c/w long extension).

LDPFILLXL-3Z: 2 Wire Probe, Aluminium Body, Viton Seals (3 compartment kit c/w long extension).

LDPFILLXL-4Z: 2 Wire Probe, Aluminium Body, Viton Seals (4 compartment kit c/w long extension).

LDPFILLXL-5Z: 2 Wire Probe, Aluminium Body, Viton Seals (5 compartment kit c/w long extension).

LDPFILLXL-6Z: 2 Wire Probe, Aluminium Body, Viton Seals (6 compartment kit c/w long extension).
