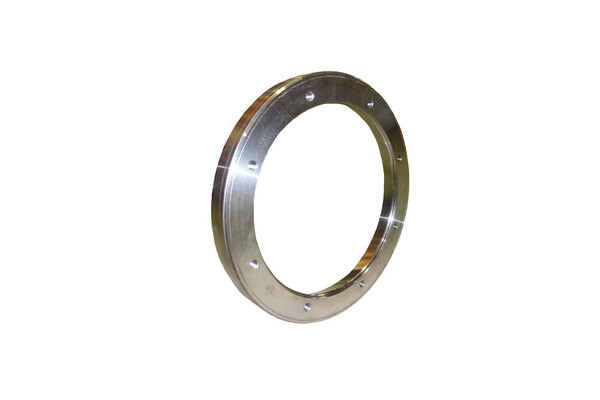

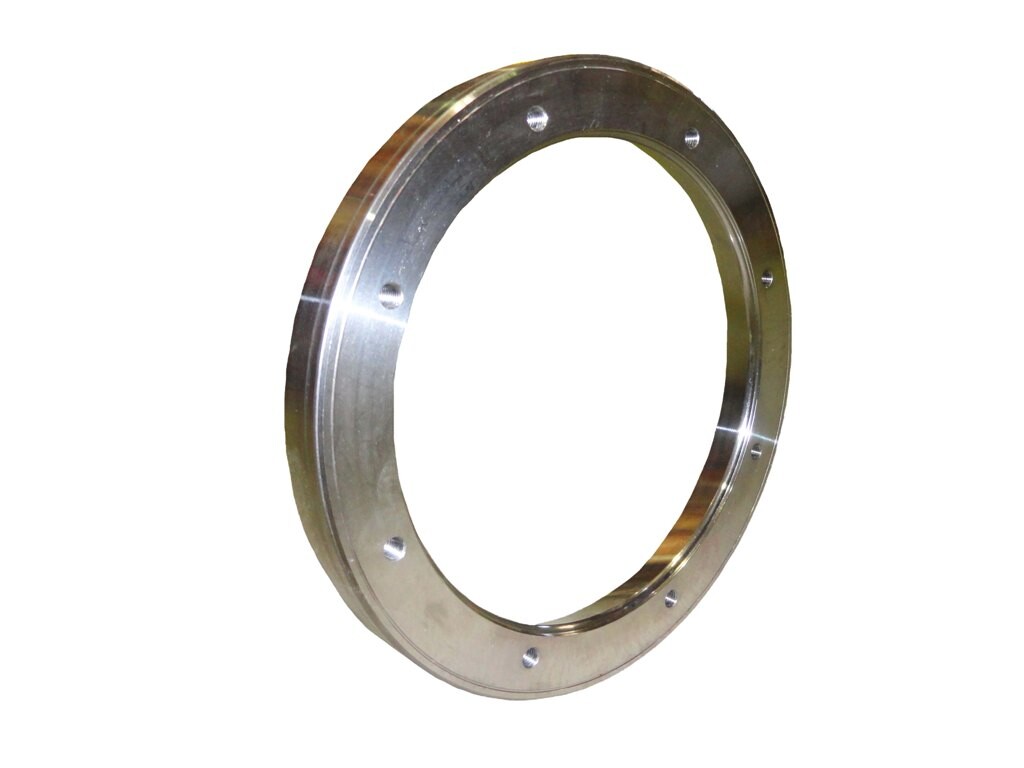

Tank Flanges

Liquip offers a range of tank flanges to suit the SLV5 Series of Internal Valves.

Tank flanges are welded into the floor of a tanker compartment to fix the SLV5 series internal valves in place.

Ordering Information

SLV5-13A:  Aluminium SLV5 Tank Flange c/w metric studs & nuts.

SLV5-13M:  Mild Steel SLV5 Tank Flange c/w metric studs & nuts.

0272: 3mm NBR Cork Gasket - SLV5 Tank Flange.

0272V: 3mm Viton A Gasket - SLV5 Tank Flange.

7616V: 1.6mm Viton A Gasket - SLV5 Tank Flange.

7591: Gortex Gasket - SLV5 Tank Flange.

7515: 1.5mm Klinger Gasket - SLV5 Tank Flange.

Associated Equipment

SLV5-ARO: Air Operated Internal Valve with Bonded Viton A seal.

SLV5-AROZ: SLV5:ARO comes with Neo Cork Gaskets (tank and pipe flange).

SLV5-AROVZ: SLV5:ARO comes with Viton A Gaskets (tank [3mm] and pipe [3mm] flange).

SLV5-AROTVZ:SLV5:ARO comes with 1.6mm Viton A Gaskets (tank [1.6mm] and pipe [3mm] flange).

SLV5-AROAVI: Air Operated Internal Valve with Bonded Viton A seal - Aviation Specification.

SLV5-AROAVIZ: SLV5-AROAVI comes with NBR Corke Gaskets (tank and pipe flange).

SLV5-AROC:Air Operated Internal Valve with Bonded FFKM seal - Chemical.

SLV5CO: Cable Operated Internal Valve with Bonded Viton A seal.

SLV5M: Cable Operated Internal Valve with Bonded Viton A seal (top operated only).
