Adaptor Outlets

Liquip offers a range of aluminium adaptors to provide a simple connection of the delivery pipe to the SLV5 Series emergency valves.

Outlet adaptors provide a cost effective and lightweight flanged connection of the delivery pipe (wet leg) to the emergency valve.



Technical Information

Pressure
100mm bore all through for minimum pressure drop.

Mild Steel adaptors
Mild Steel pipe is welded to the tapered side of the flange and the flange then bolted securely to the outlet of the emergency valve providing a clean efficient delivery/loading system.

Aluminium adaptors
Aluminium pipe is welded to the outlet side of the flange and the flange then bolted securely to the outlet of the emergency valve providing a clean efficient delivery/loading system.

Ordering Information

Mild Steel adaptors

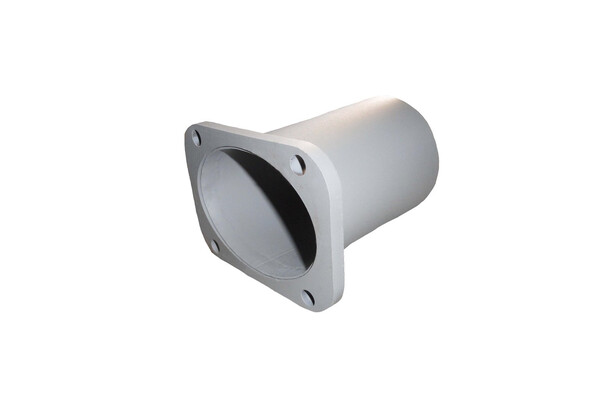

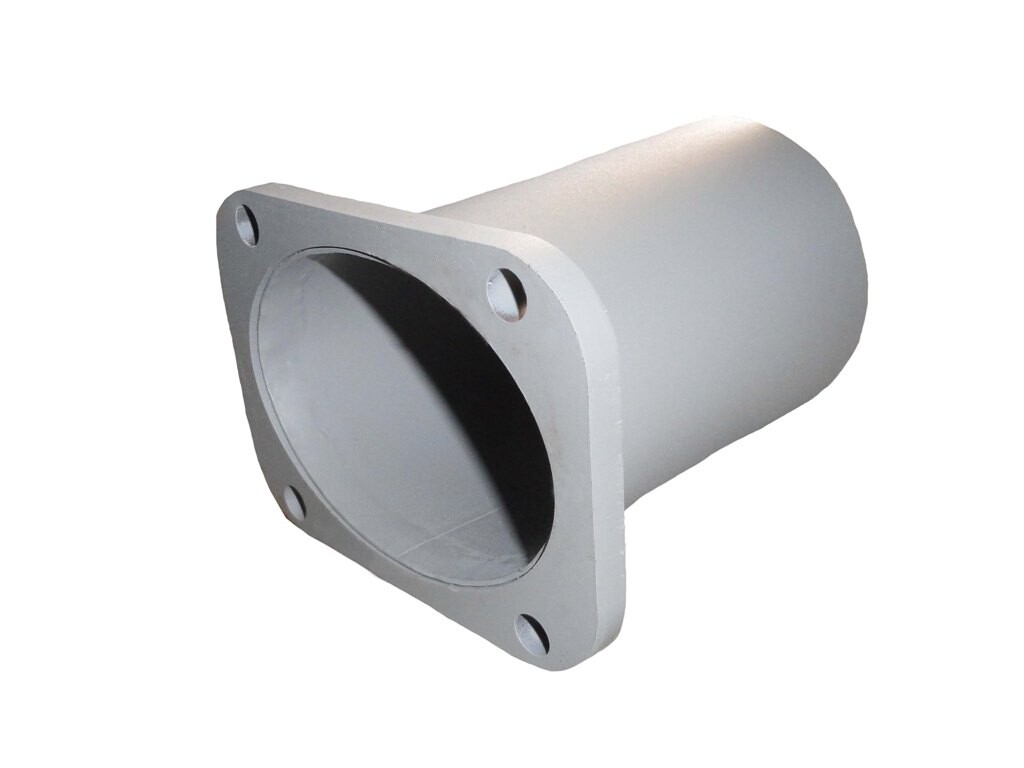

SLV5-47: 4" Mild Steel Adaptor Outlet to suit 4" Steel Tube.

SLV5-43M: Mild Steel 80mm outlet flange adaptor.

Aluminium adaptors

SLV5-110: Aluminium Adaptor Outlet to suit 100mm tube.

SLV5-114: Aluminium Adaptor Outlet to suit 4" pipe.

Associated Equipment

SLV5-ARO: Air Operated Internal Valve with Bonded Viton A seal.

SLV5CO: Cable Operated Internal Valve with Bonded Viton A seal.

SLV5M: Cable Operated Internal Valve with Bonded Viton A seal (top operated only).

0200:  3mm NBR Cork Gasket - SLV5 Pipe Flange.

0200V: 3mm Viton A Gasket - SLV5 Pipe Flange.

6086: PTFE Gasket - SLV5 Pipe Flange.

7514: 1.5mm klinger Gasket - SLV5 Pipe Flange.
