Inline Strainer and Sightglass Kits

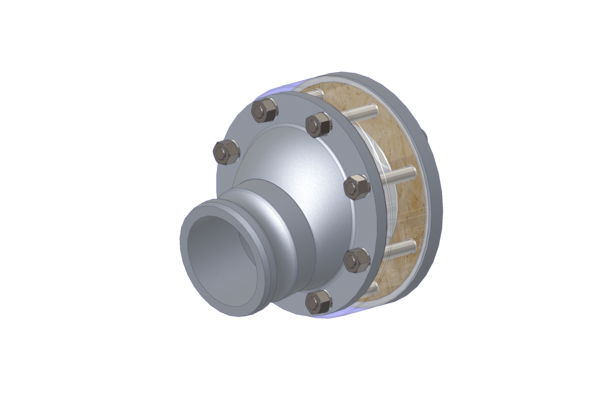

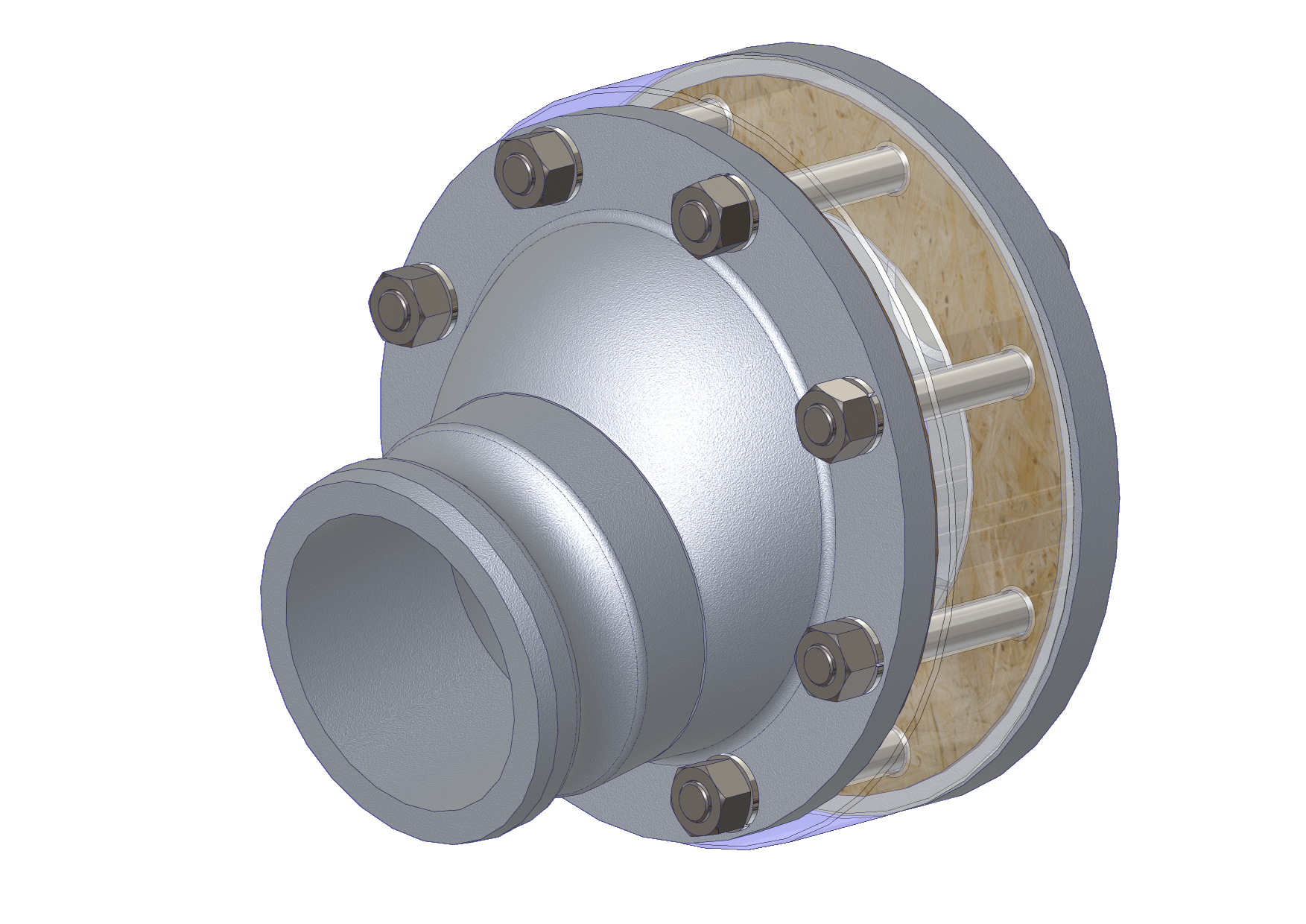

The ILS2 series strainer and sightglass kits are a simple and  precautionary measure to prevent expensive pump damage.

This coarse pre-filter prevents large contaminates or debris from passing through pipe work downstream.

The ILS2 series also offers users the additional benefit of product visibility through its sightglass housing to ensure if a compartment/tanker has product present or if it has been drained.

This series of strainer and sightglass kit has been developed to suit TTMA flanges and piping.

Do not use with solvents – refer to sightglass for flanges data  sheet for compatibility

Features & Benefits
  • Cast Acrylic design that provides superior optical clarity.
  • Annealed for improved performance with aggressive fuel additives.
  • Sightglass fits between two flanges of the same specification.
  • Full face Viton gaskets available and recommended.
  • Sightglasses are date stamped to assist with planned maintenance.
Technical Information

Adjustment or Service
Periodically (recommended every 6 months), inspect sightglass and strainer.

Materials
Sight glass: Acrylic
Mounting Flange: Aluminium
Strainer Basket : Z/P Steel
Gaskets: NBR Cork

Mounting
Mounts directly to TTMA flanges or associated pumps.
Mounting bolts of adequate length tightened to a torque of 20Nm -
Tighten up evenly in a criss-cross manner.
Install with full face gaskets on both sides.

Dismantle
Remove mounting bolts for servicing.

Weight
1.2kg

Maximum working pressure
1,000kPa

Maximum working temperature
70°C

Ordering Information
Item Description
LIQILS2V20-3 SIGHTGLASS 50MM STRAINER
LIQILS2.5-SG SIGHTGLASS 40MM ACRYLIC
LIQILS2V20-2 BASKET STRAINER 50mm SIGHTGLASS Z/P
LIQILS2.5-1 BASKET 118mm OD x 36mm M/S Z/P
LIQILS2V20-2SS BASKET STRAINER 50mm SIGHTGLASS S/S 304
LIQILS2V20Z SIGHTGLASS KIT 3ö TTMA 25mm THICK V20 SUCTION
LIQILS2.5-25-MC4Z SLOPS TANK STRAINER - military spec.
LIQILS2.5-SGZ SIGHTGLASS ONLY KIT 4ö TTMA 40mm THICK TO SUIT STRAINER
LIQILS2.5VICZ SIGHTGLASS KIT 4ö TTMA 40mm THICK V25 SUCTION - NO ADAPTORS
LIQILS2.5Z SIGHTGLASS STRAINER & ADAPTOR KIT 4ö TTMA 40mm THICK V25 SUCTION
LIQILS2V20-1 FLANGE AL V20-BF3-SG
Associated Equipment

BF3: 75mm TTMA aluminium flange (also in mild & stainless steel.
BF4: 100mm TTMA aluminium flange (also in mild & stainless steel).
0656: 75mm TTMA NBR Cork gasket
0656V: 75mm TTMA Viton gasket
0657: 100mm TTMA NBR Cork gasket
