Product Delivery Elbows

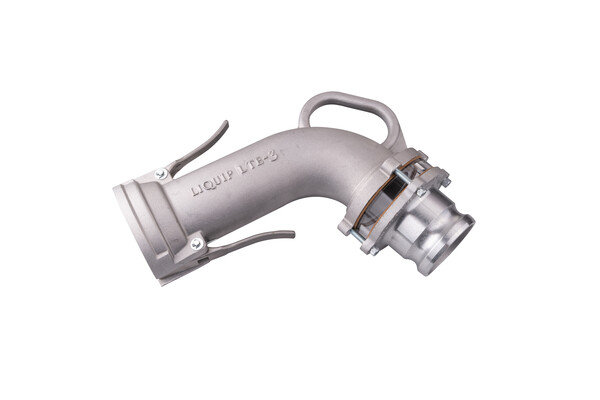

The LTE series product delivery elbows connect discharge hoses from a road tanker to a fill point on underground storage tanks fitted with Liquip tight fill adaptors or similar.

Liquip's product delivery elbows allow for quick and safe product transfer. Spring loaded levers allow the elbows to snap on securely to an side seal tight fill adaptor with minimal pressure.

The latest models of 4” LTE elbows are still fitted with Viton Base seals and are now fitted with NBR sight glass seals which provide the same functionality as existing LTE’s (unless otherwise specified).

Spare parts remain interchangeable between various models.



Features & Benefits
  • Spill free delivery during discharge of tank trucks.
  • Incorporated sightglass for 360o view product flow.
  • Sealing on the bottom connection is via lip seal on the side of the LTA adaptor as this surface is rarely worn.
  • Ergonomic design for added operator safety.
  • Easy connection and disconnection.
  • Quick release design.
  • Connection at the top inlet is via standard camlock.
  • Spring loaded levers that snap onto adaptors with minimal pressure.
  • Can now be purchased with a locking ring which will prevent the elbow from inadvertently
    dislodging during use - refer suffix “R” on item number or they can be purchased and fitted
    separately (P/N: LTE4-RINGZ).
Technical Information

Inlet
80mm or 100mm.

Bore
80mm or 100mm.

Mounting
Hand mounted push & click with quick release levers.

Materials
-Body - Aluminium
-Viton - Seal
-Levers - Stainless Steel
-Sightglass - Acrylic

Weight
3.9kg.

Ordering information

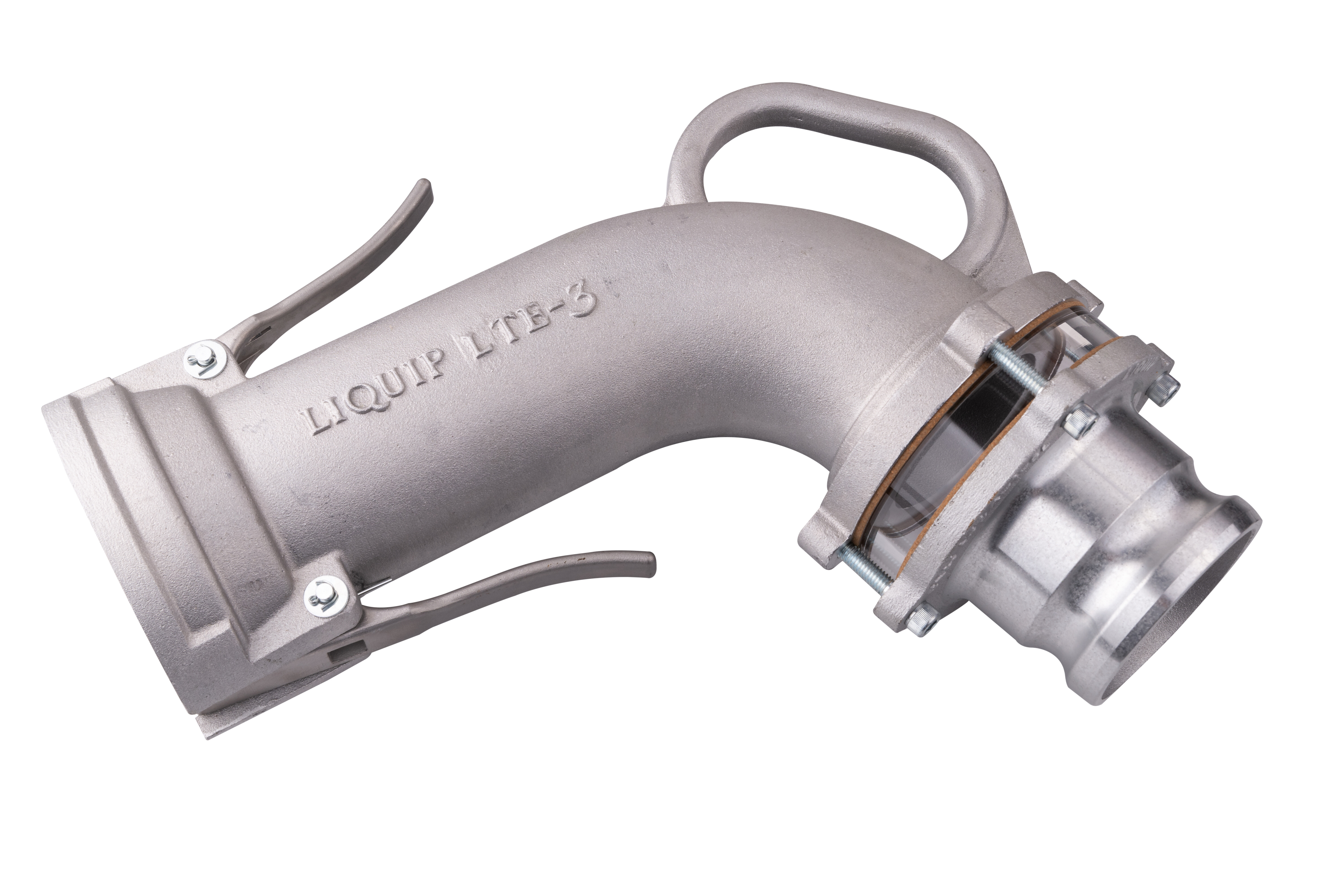

LTE3X3: Aluminium elbow 80mm male camlock x 80mm titefill elbow.

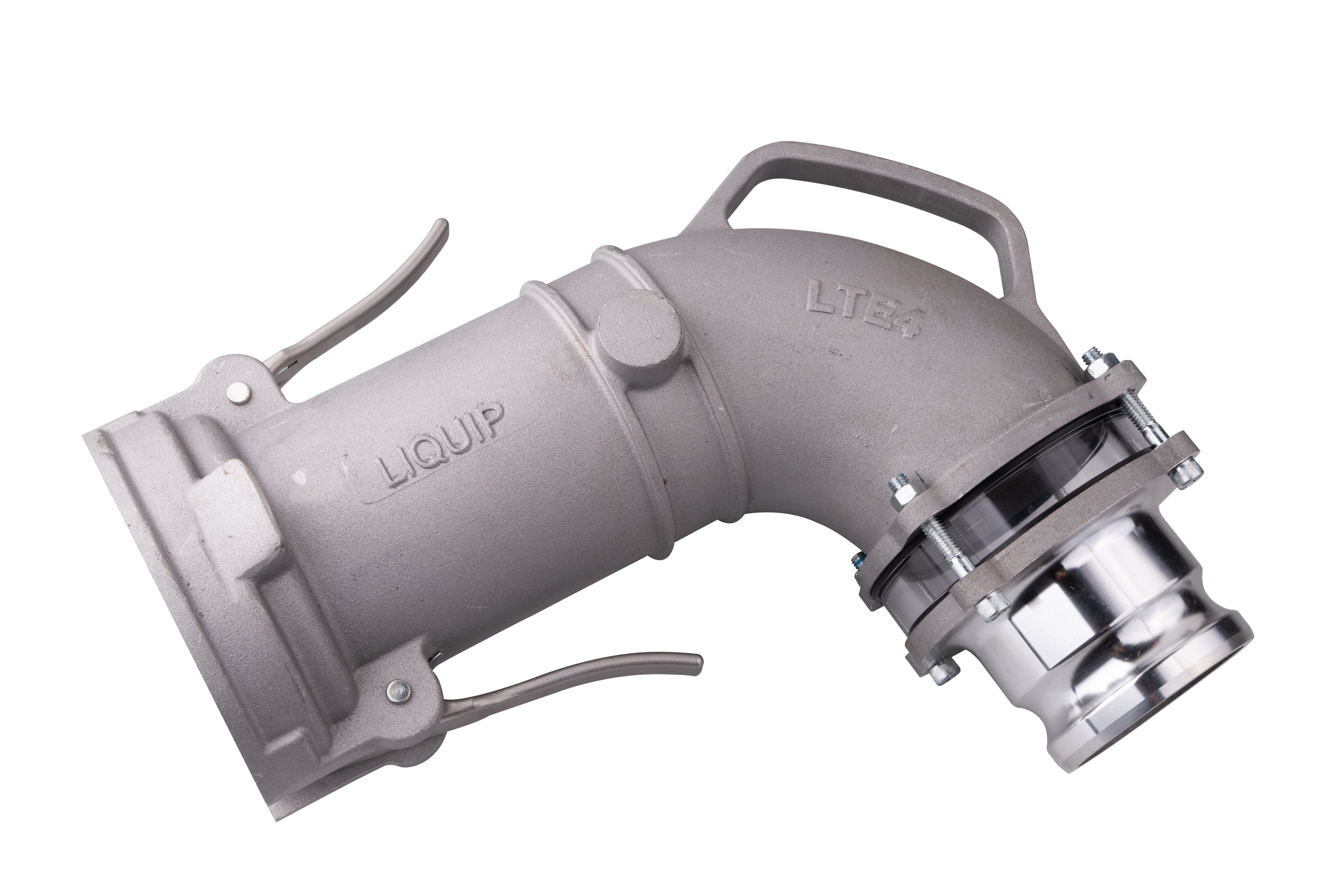

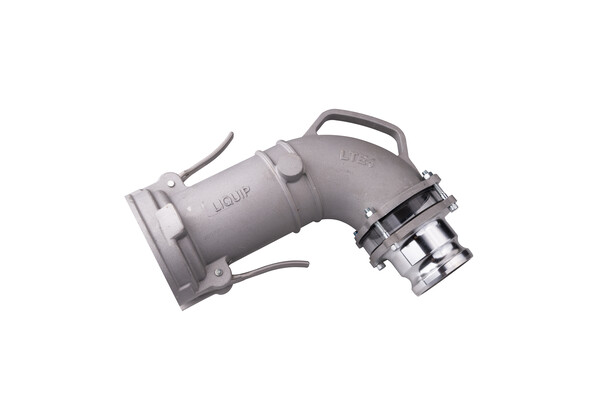

LTE3X4: Aluminium elbow 80mm male camlock x 100mm titefill elbow.

LTE4X4: Aluminium elbow 100mm male camlock x 100mm titefill elbow.

LTE4X4VG: Elbow Titefill 100mm x 100mm Camlock Viton GFLT.

LTE3X4R: Elbow Titefill 100mm x 80mm Camlock c/w Locking Ring.

LTE4X4R: Elbow Titefill 100mm x 100mm Camlock c/w Locking Ring.

LTE4X4VGR: Elbow Titefill 100mm x 100mm Camlock Viton GFLT c/w Locking Ring.

LTE4-RINGZ: Locking Ring Kit Suit LTE4 series Titefill Elbows

Associated Equipment

LTA3x3:  Tightfill brass adaptor. 3" connection to 3" BSP threaded.

LTA3x4:Tightfill brass adaptor. 3" connection to 4" BSP threaded.

LTA4x4: Tightfill brass adaptor. 4" connection to 4" BSP threaded.
