Lifting Wire

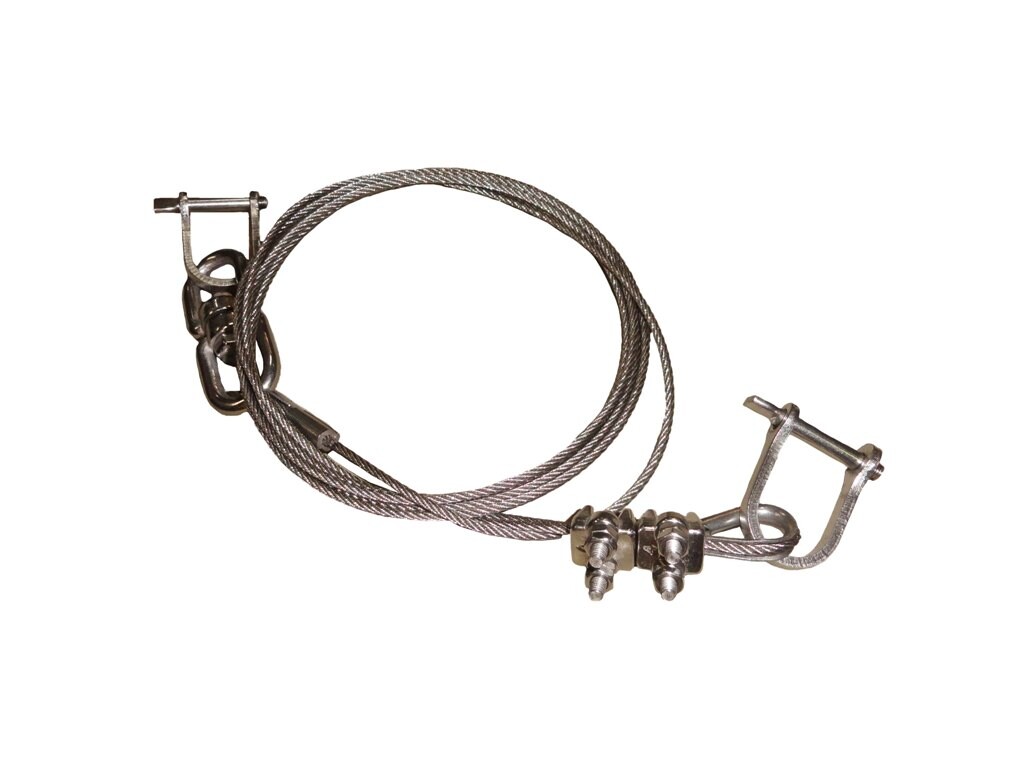

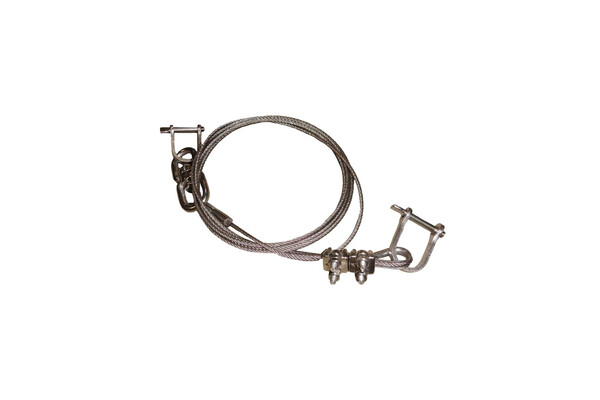

Stainless Steel Lifting wire that connects a road tanker walkway mounted camlift to the foot valve (internal valve) to lift the valve poppet to open.

Features & Benefits
  • Lightweight, durable and low cost.
  • Stainless steel construction.
  • Commonly used in split compartment drops.
  • Lifting Wire Cable length 2.1m and can be adjusted to suit compartment heights.
  • Used in conjunction with manual top operators.
Technical Information
  • Comes with Stainless Steel swivel to prevent cable 'wind up' which can cause the internal valve to be held open.
  • Cable is marine standard stainless steel wire with breaking strain of over 8,000N (Newton).
  • In-service stretch at typical working tensile force of 400N is negligible.
Ordering Information

LW410: Stainlees Steel Lifting Wire Kit.

Associated Equipment

CL402RG Series: Liquip Manual top opertators.

ACL405 Series: Liquip Air operated top operators.

SLV5 Series:  All Liquip Internal Vavles.
