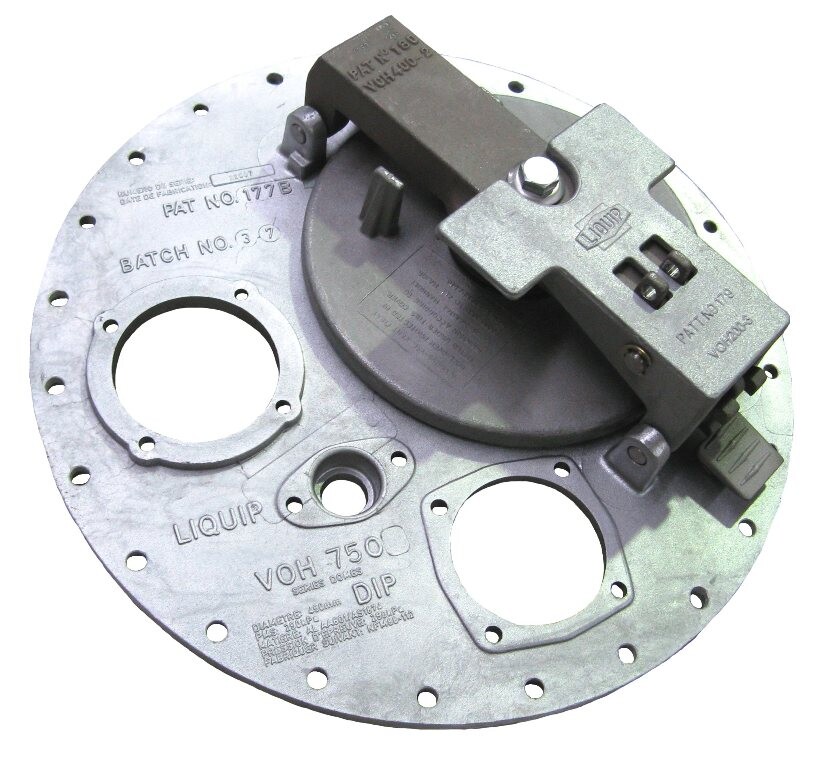

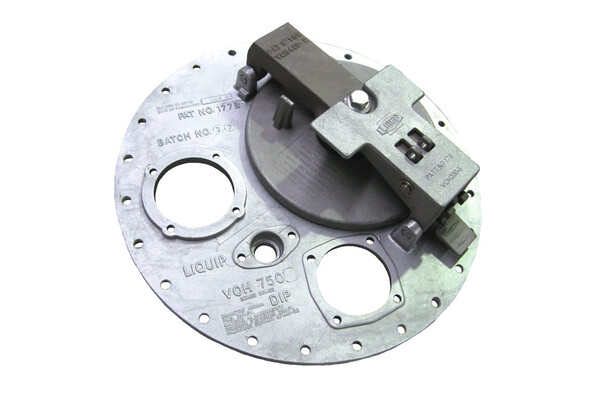

18" Bolt Style Manhole Covers - VOH750 Series

Liquip offers the VOH750 series hatch. These hatches are unique 455mm (18”) diameter Manhole Covers to suit the specification of oil companies and transport fleets.

Liquip's VOH750 Series Manhole Covers are available in cast aluminium and comes with three equipment mounting positions for overfill protection, vapour recovery and Dip & Fill accessories.

Australian drop test approval makes these manholes ideal for both top and bottom loading.

Features & Benefits
  • Australian drop test approved.
  • Cast aluminium lightweight & durable construction.
  • Two stage opening mechanism enables internal pressure to be released before completely opening the manhole cover.
  • 225mm (9") emergency pressure vent included to enable bulk pressure release in event of a fire or rollover.
  • Emergency vent doubles as an easy to open inspection hatch for top loading or visual inspection.
  • Can be fitted with a 1” thermal pressure & vacuum vent complying with recognised industry codes (for thermal expansion purposes).
  • Any mounting positions not utilised can be securely blanked off until required.
  • Available with either a plain or lockable handle.
  • Secure Locking Feature via Gravity Latch or Lockable Bridge & Handle.
Technical Information

Regulations
Passes the Australian drop Tests.

Mounting
The VOH750 series is attached to the manhole coaming using a 24 bolt pattern.

Ordering Information

VOH7502A4A0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV104, no Gravity latch.

VOH7502A4O0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV blank plate, no Gravity latch.

VOH7502B4U0: VOH750 Manhole 24 Bolt, Alum bridge (24kPa) plain handle, PVV104U, no Gravity latch.​

VOH7502B4U1: VOH750 Manhole 24 Bolt, Alum bridge (24kPa) plain handle, PVV104U, with Gravity latch.​

VOH7502U4U0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV104U, no Gravity latch.​​

VOH7502U4U1: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV104U, with Gravity latch.​​

VOH7503A4A0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) lockable handle, PVV104, no Gravity latch.​​

VOH7503B4U0: VOH750 Manhole 24 Bolt, Alum bridge (24kPa) lockable handle, PVV104U, no Gravity latch.​​

VOH7503B4U1: VOH750 Manhole 24 Bolt, Alum bridge (24kPa) lockable handle, PVV104U, with Gravity latch.​​

VOH7503U4U0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) lockable handle, PVV104U, no Gravity latch.​​

VOH7503U4U1: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) lockable handle, PVV104U, with Gravity latch.​​

Associated Equipment

VOH700-26:Aluminium Coaming.

VOH700-26M: Mild Steel Coaming.

AVV3.0-10: Vapour Recovery Blank Plate.

VOH700TH-13: Dip & Fill Blank Plate.

VOH700TH-14: Overfill Blank Plate.

VOH700-22: Sight Glass.

UG101: Ullage Gauge.
