Dip & Fill Adaptors

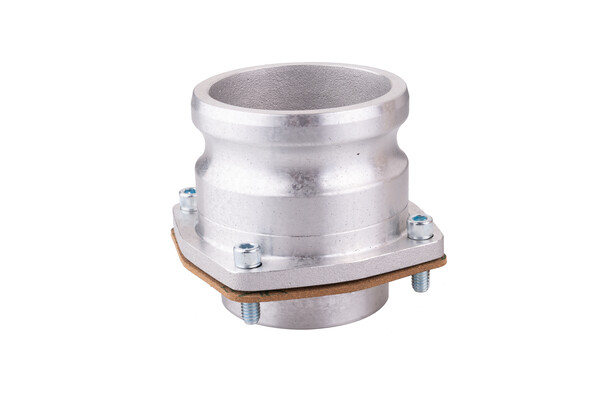

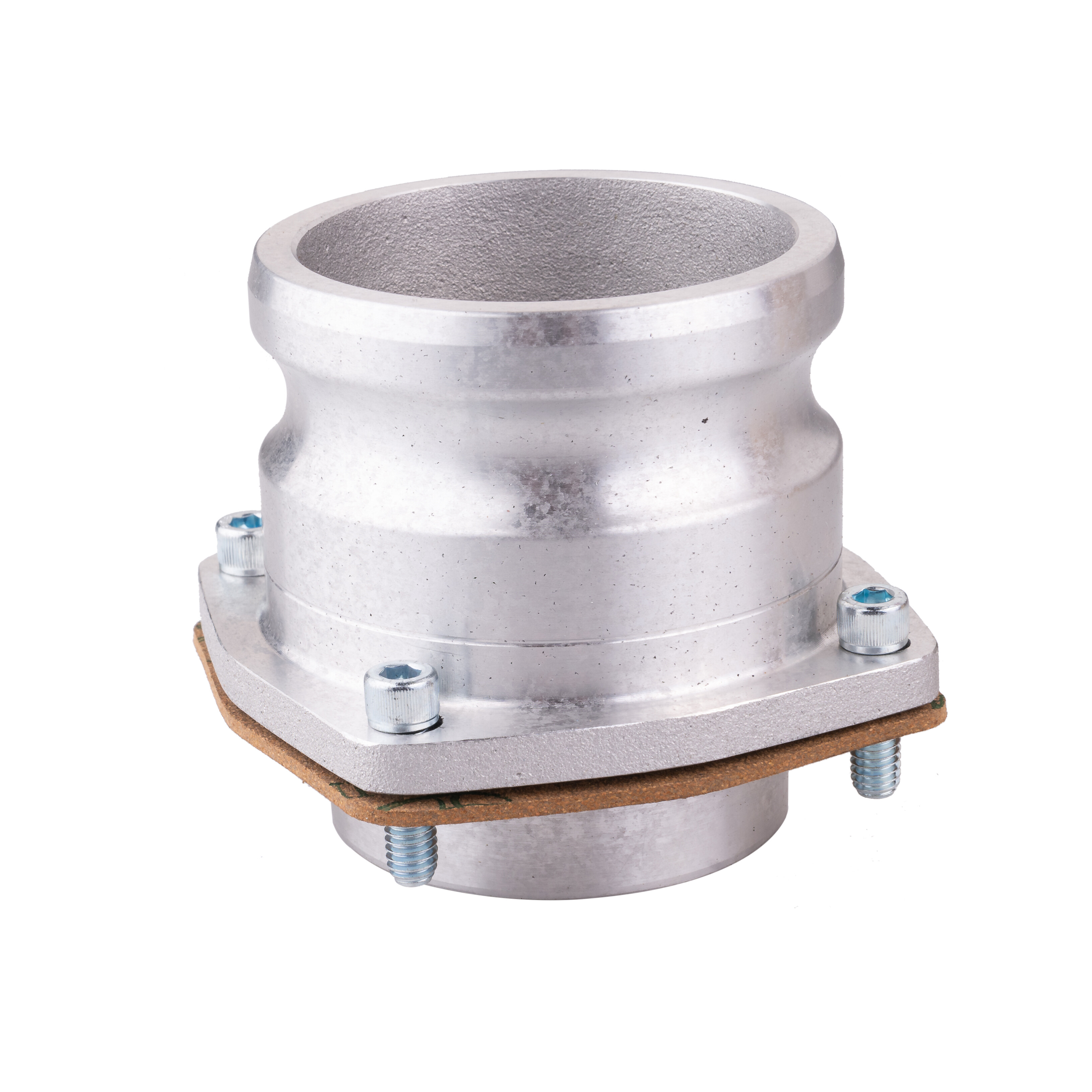

DTA80

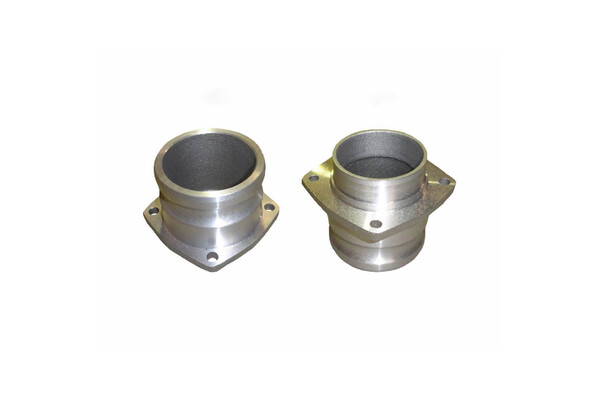

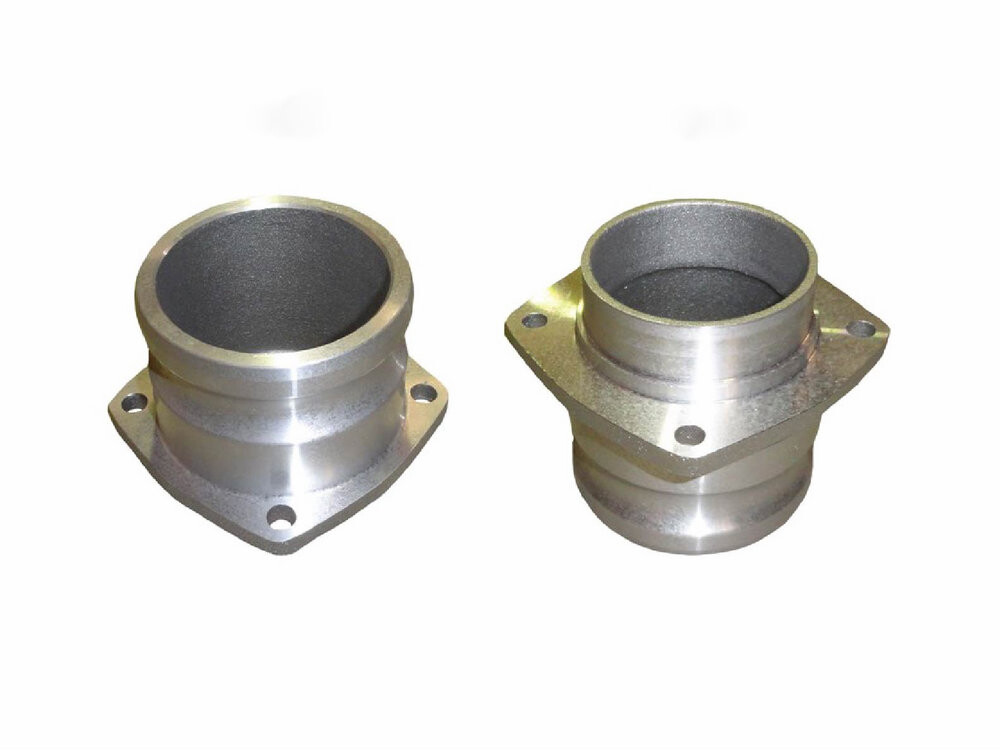

The DTA series of Dip Tube adaptor bolts directly to the Liquip manhole cover or to a separate weld in flange. They have a standard mil-spec camlock top with through hole square flanges.

The Dip Tube is either welded or pop riveted to the round section on the base of the Adaptor.

Suits VOH41x, VOH45x & VOH750 Series Manhole Covers.

FTA80
The FTA series of Fill Tube adaptor bolts directly to the Liquip manhole cover or to a separate weld flange. They have a standard mil-spec camlock top with through hole square flanges.

The Fill Tube is either welded or pop rivetted to the round section on the base of the Adaptor.

Suits VOH41x, VOH45x & VOH750 Series Manhole Covers.

DBA50
The DBA adaptor is a ​50mm Dip adaptor with bayonet fitting.

Ordering Information

DBA50: 50mm Dip adpator, bayonet type fastening with flange mount.

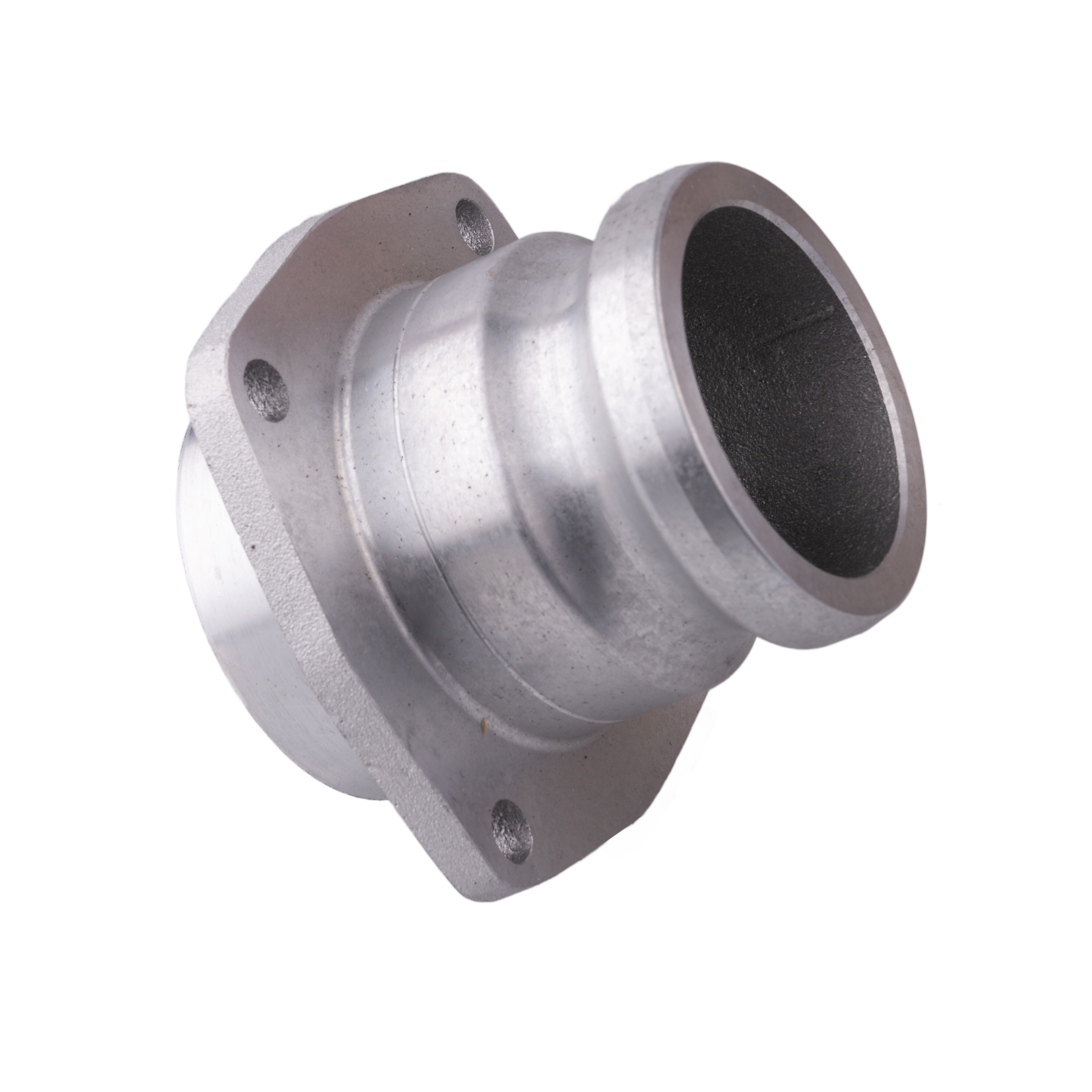

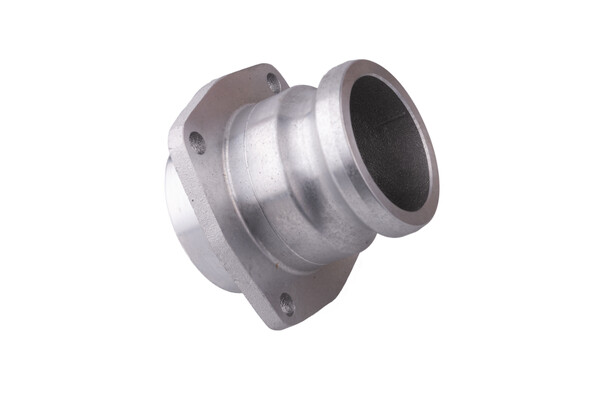

DTA65: 65mm Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube.

DTA65-1ATZ: 65mm Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube + Teflon Kit.

DTA80: 80mm Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube (Kit included).

DTA80M: 80mm Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube (Kit included) (metric).

DTA80-1ATZ: 80mm Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube + Teflon Kit.

DTA80M-1ATZ: 80mm Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube + Teflon Kit (metric).

DTA80-3: 80mm Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube. Utilises an integral weld flange for use on low profile tanks (Kit included).

DTA80F: 80mm Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube on the VOH500 series manhole covers.

FTA65: 65mm Fill Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm Fill tube.

FTA80: Fill tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm fill tube (Kit included).

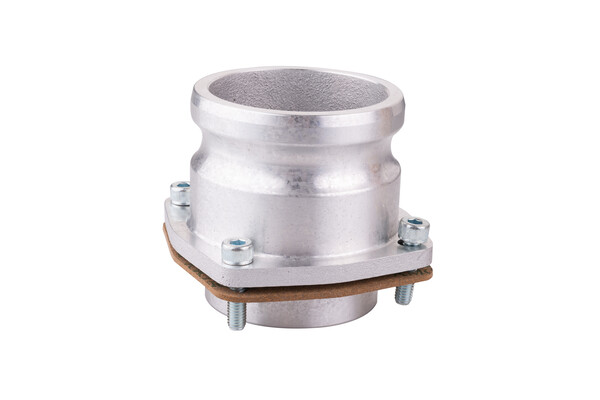

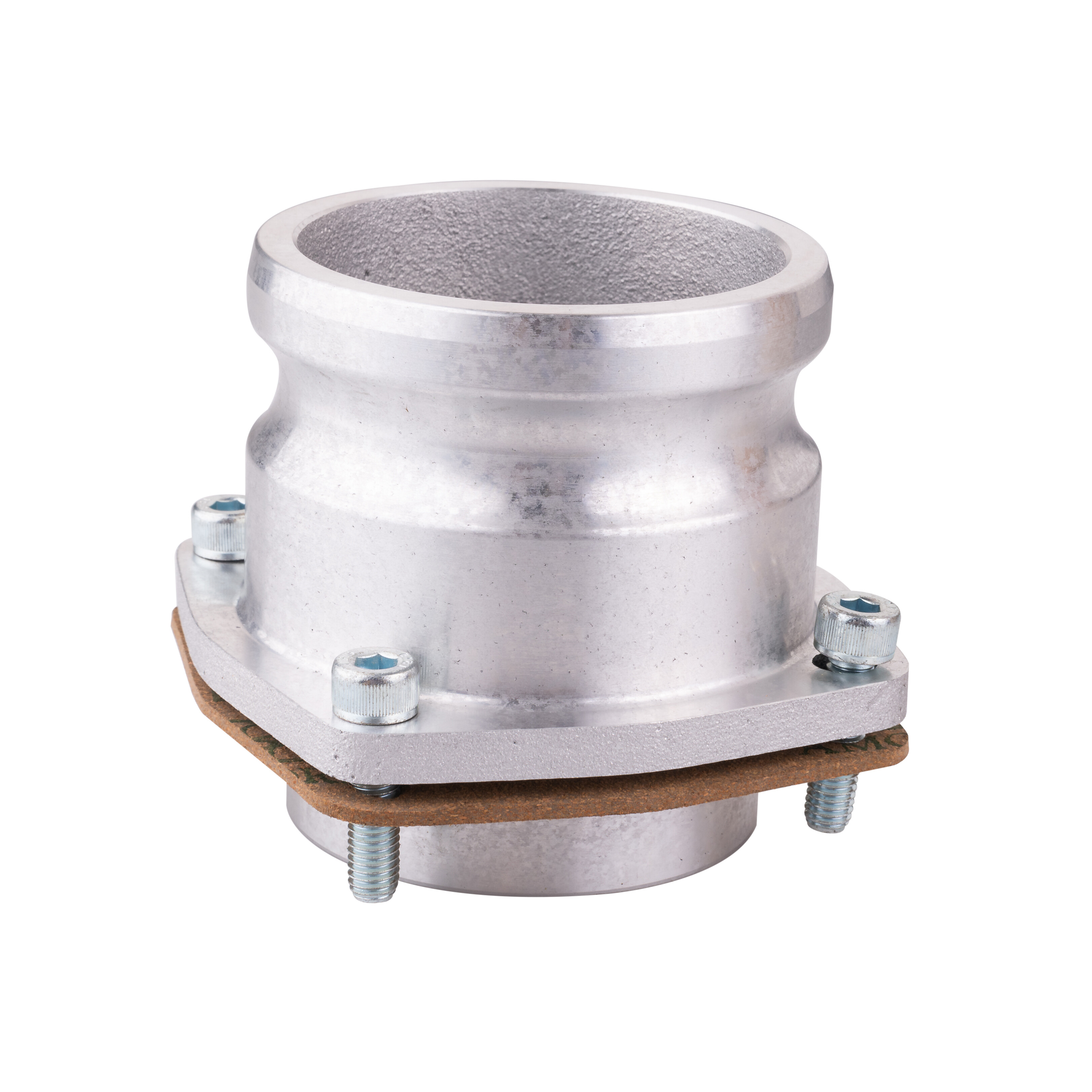

FTA80M: Fill tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm fill tube (Kit included) (metric).

FTA80-1ATZ: Fill tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm fill tube + Teflon Kit.

FTA80M-1ATZ: Fill tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm fill tube + Teflon Kit (metric).

FTA80F: 80mm Fill Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm fill tube on the VOH500 series manhole covers.

Associated Equipment

NA80-2AW: 80mm Camlock Dust Cap.

NA65-2A: 65mm Camlock Dust Cap.

FTB3-2200: Fill Tube 80mm x 2200mm.

DTS3-2200: Dip Tube 80mm x 2200mm.

FTA80-3: Aluminium weld flange.

DP3L: Dual Aluminium Dip & Fill Flange.

DBC50: 50mm Dip tube bayonet cap assembly.
