Manlid/Hatch Coamings

Liquip offers a range of weld in coamings to suit the VOH series hatches/manlids

Features & Benefits
  • Coamings to suit Liquip 18" and 20" manlids.
  • Can be supplied in Aluminium or Mild Steel.
  • Welded and tested to ensure the coaming passes Australian drop tests.
  • Allow hatches to be mounted on to tanker.
Technical Information
Model Material Profile OD - Body (mm) Mount
VOH300-15 Al Ribbed 447 Weld in
VOH300-15P Al Plain 447 Weld in
VOH450-15 Al Ribbed 483 Weld in
VOH450-15P Al Plain 483 Weld in
VOH300-17 M/S Straight 447 Weld in
VOH450-17 M/S Straight 483 Weld in
VOH500-14A Al Straight 513 Weld in
VOH500-17M M/S Straight 500 Weld in
VOH700-26 Al Straight 398 Weld in
VOH700-26M M/S Straight 398 Weld in
Ordering Information

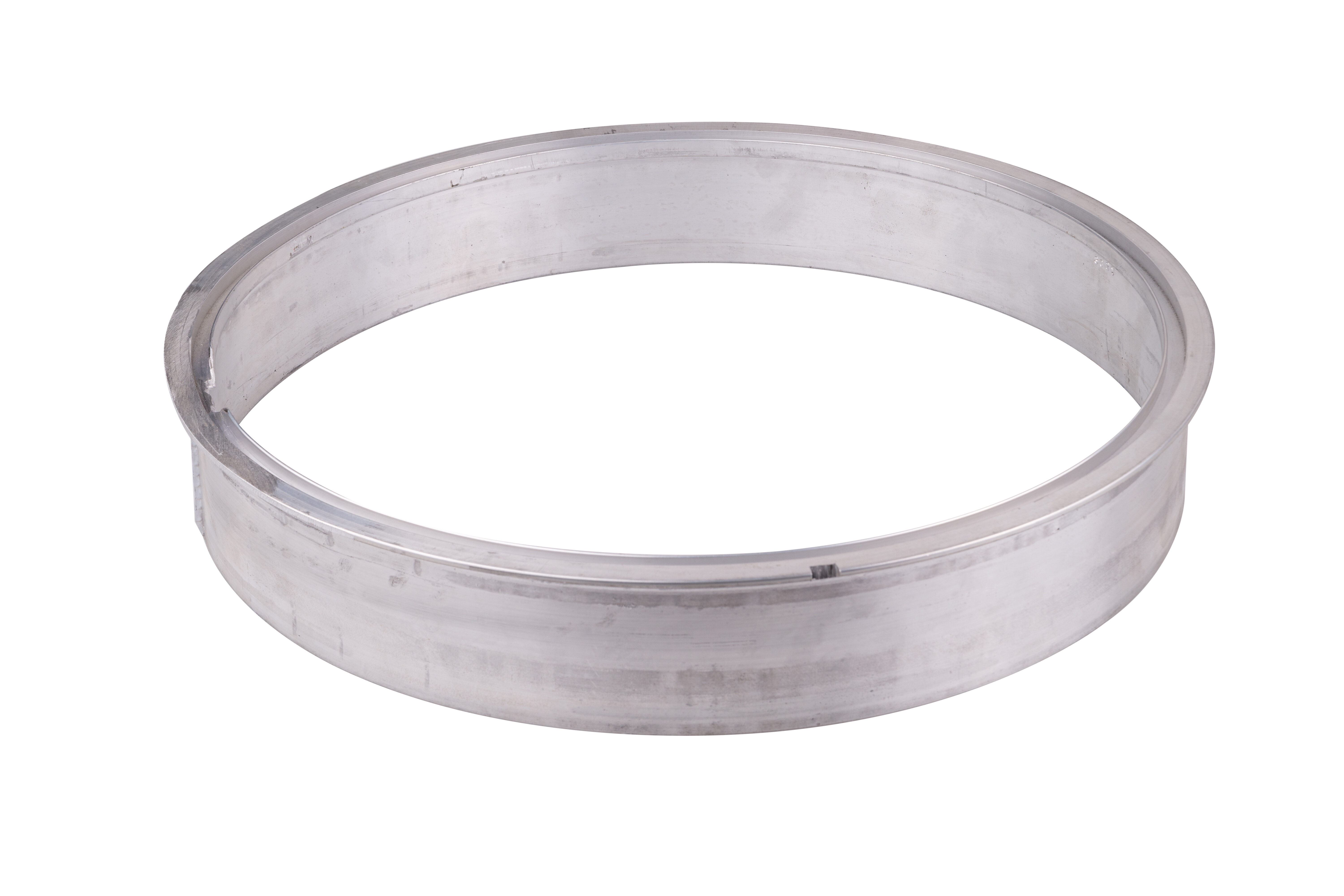

VOH300-15: Aluminium coaming to suit VOH41x Series.

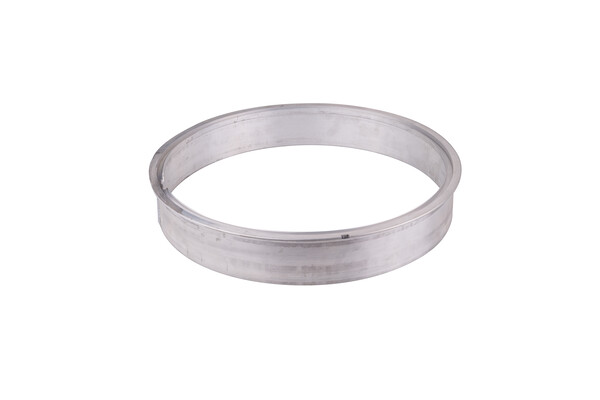

VOH300-15P: Aluminium coaming to suit VOH41x Series.

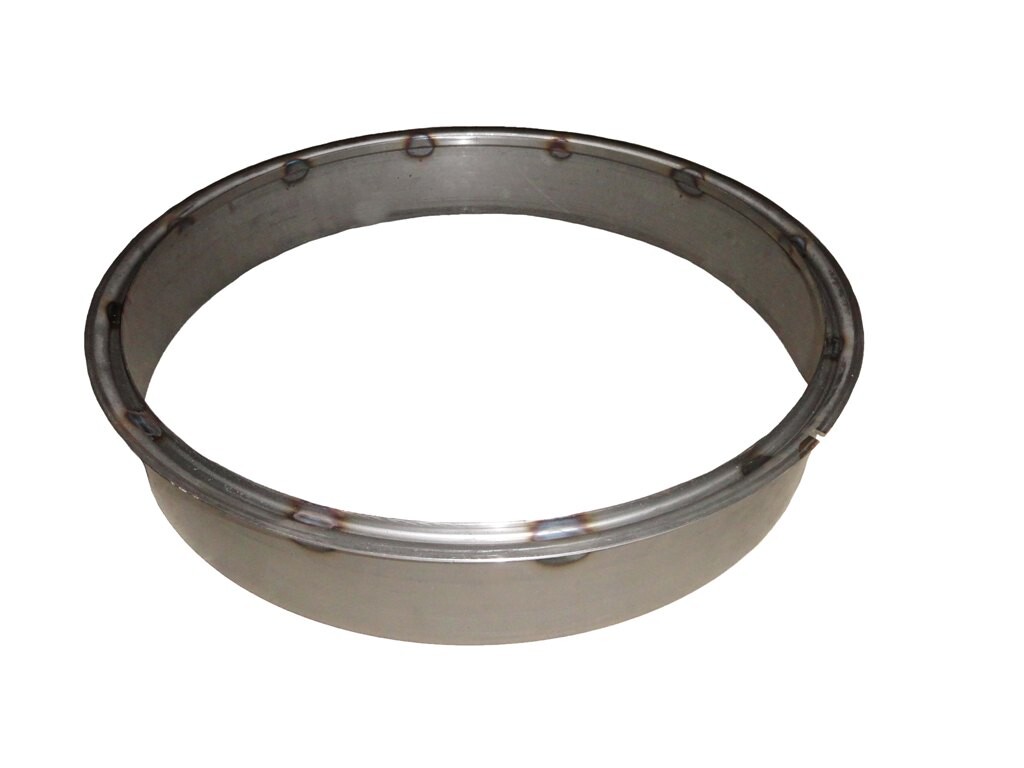

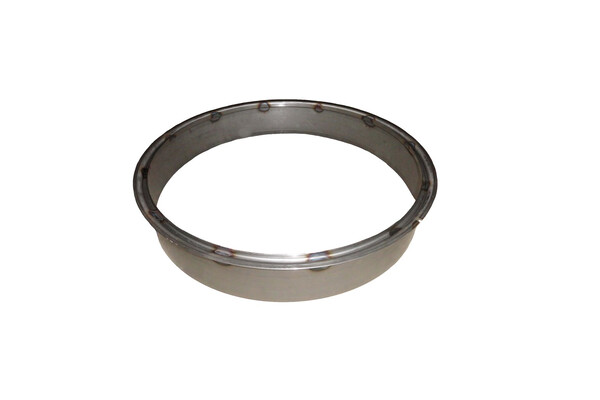

VOH300-17: Mild Steel coaming to suit VOH41x Series.

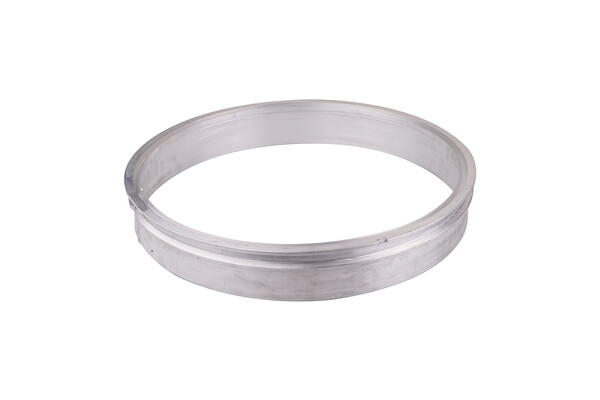

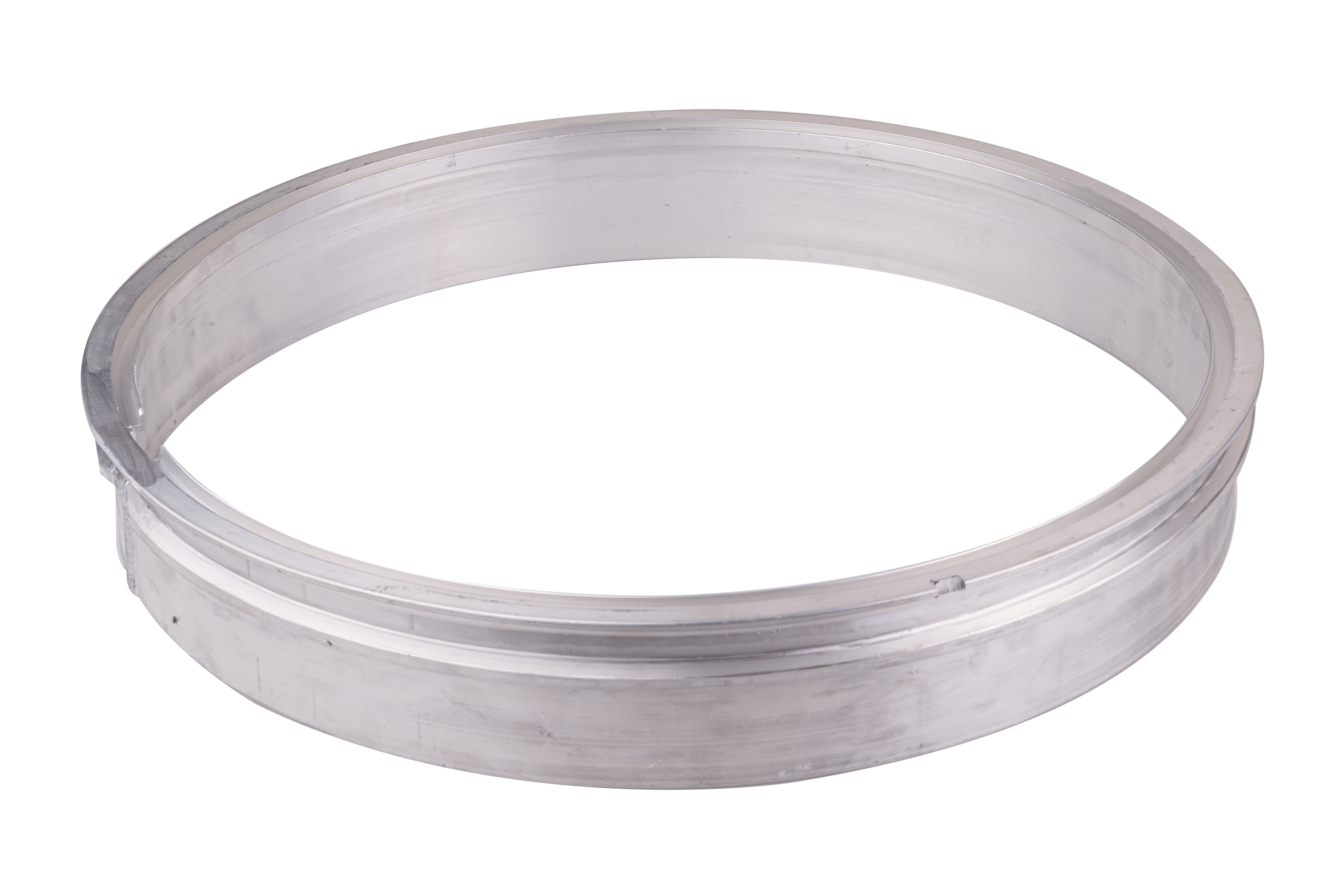

VOH450-15: Aluminium coaming to suit VOH45x Series.

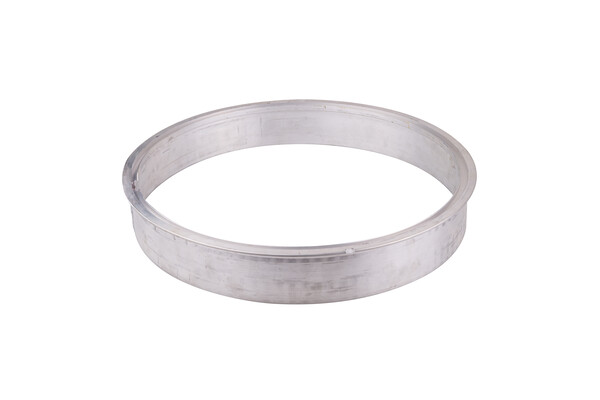

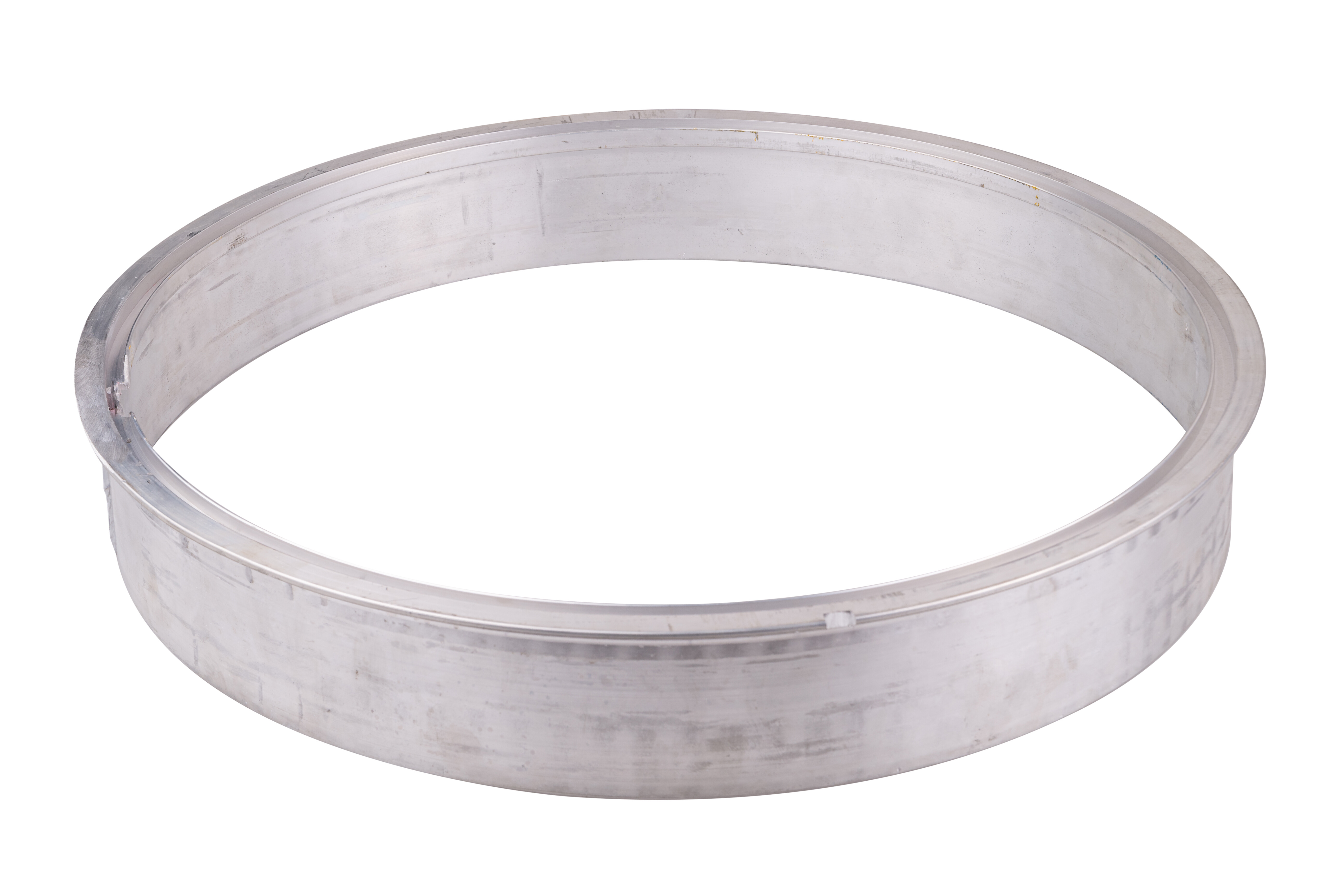

VOH450-15P: Aluminium coaming to suit VOH45x Series.

VOH450-17: Mild Steel coaming to suit VOH451 Series.

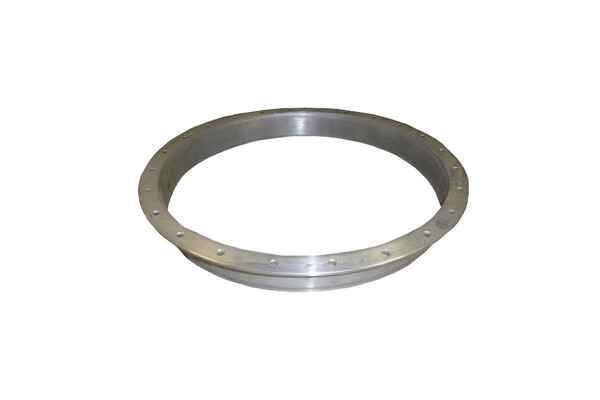

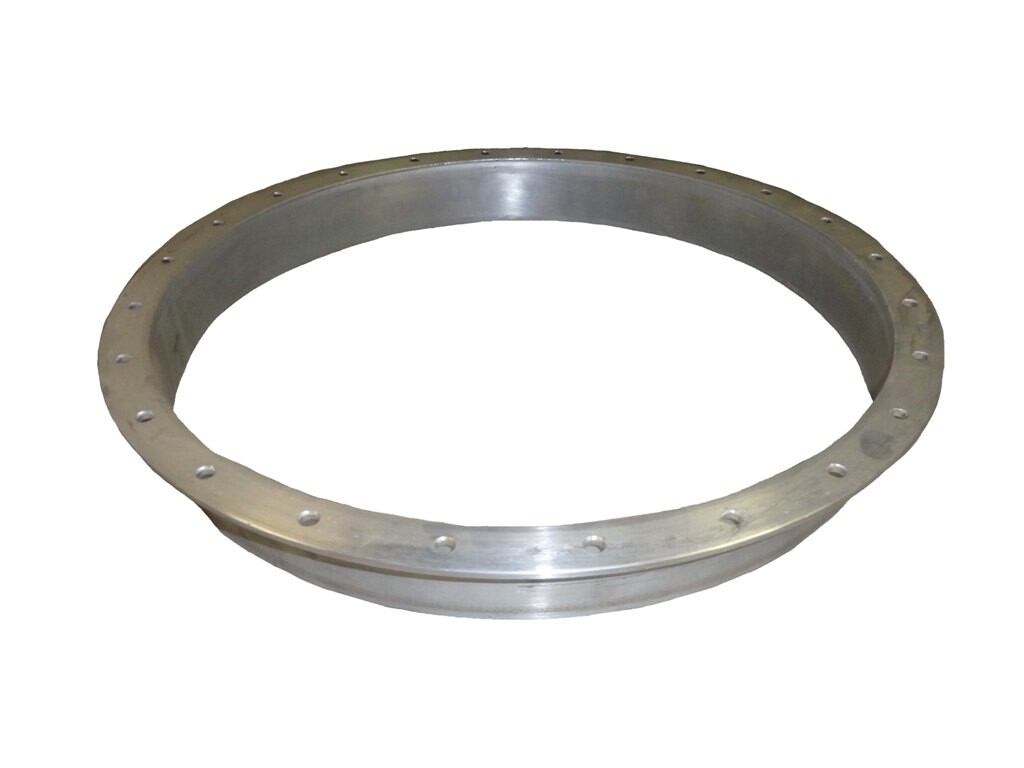

VOH500-14A: Aluminium 24 bolt coaming to suit VOH500 Series.

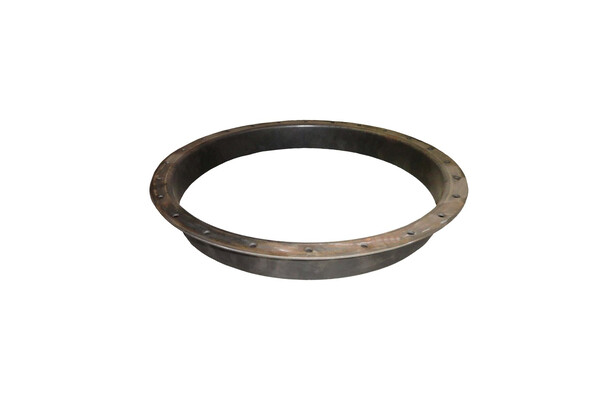

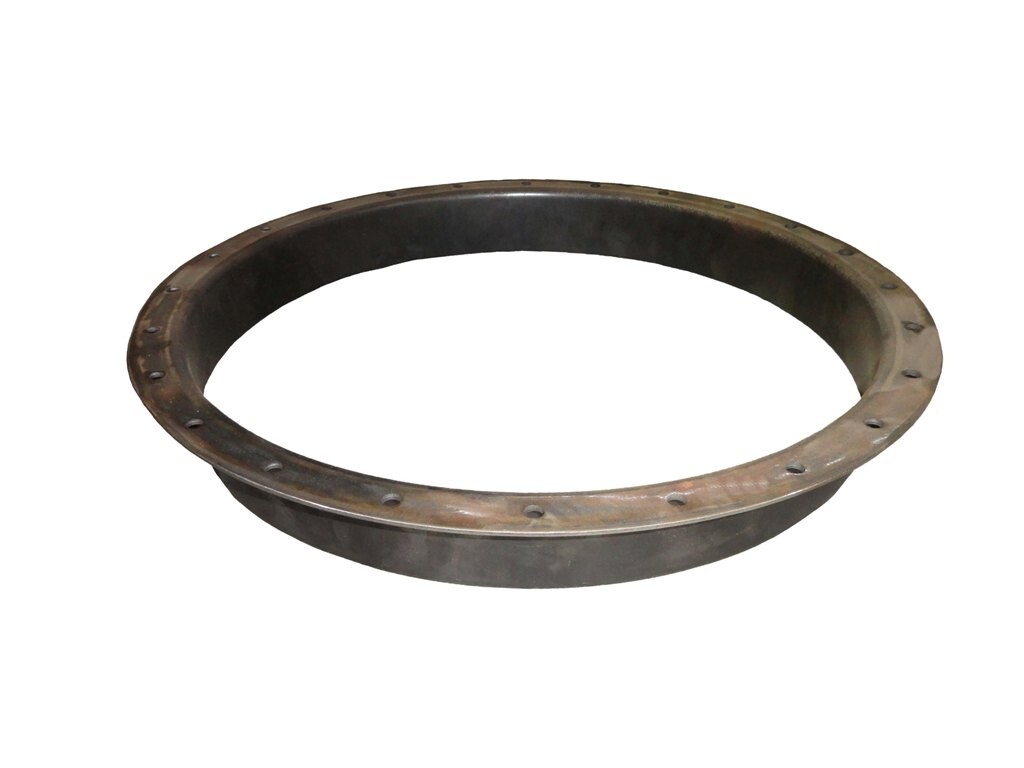

VOH500-17M: Mild Steel 24 bolt coaming to suit VOH500 Series.

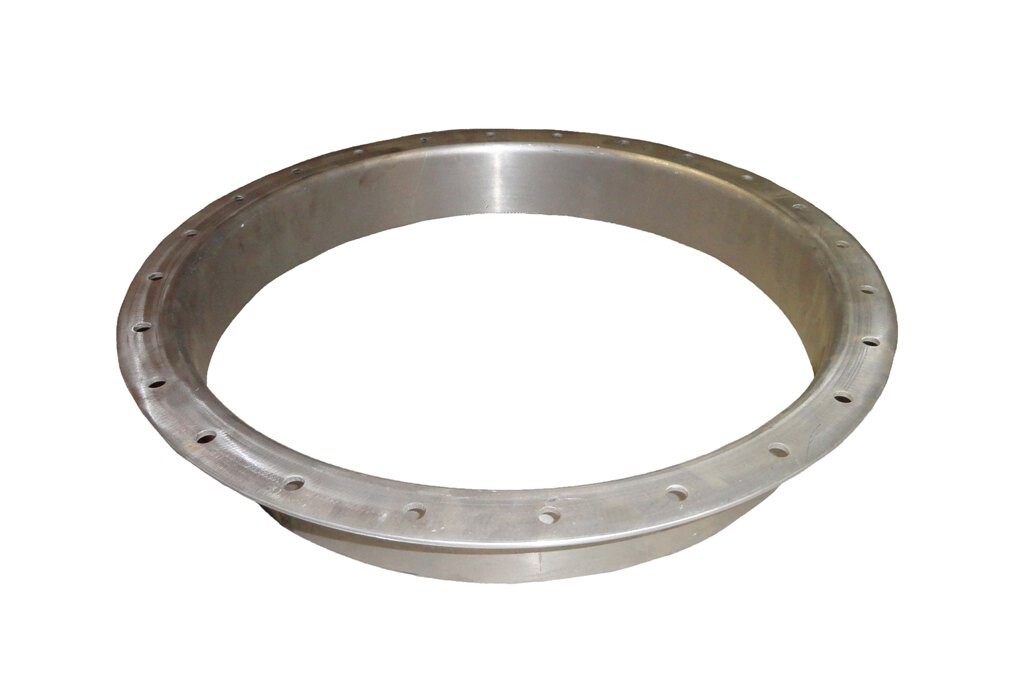

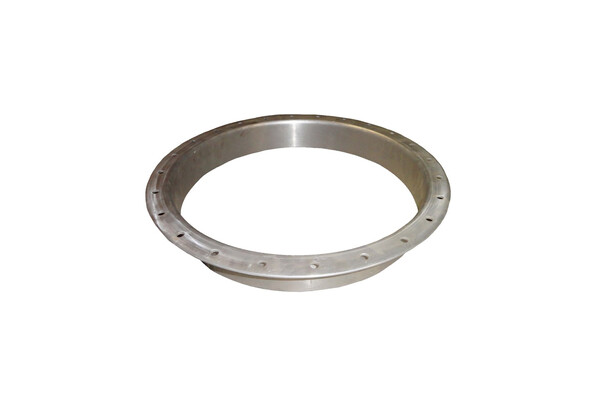

VOH700-26: Aluminium 24 bolt coaming to suit VOH750 Series.

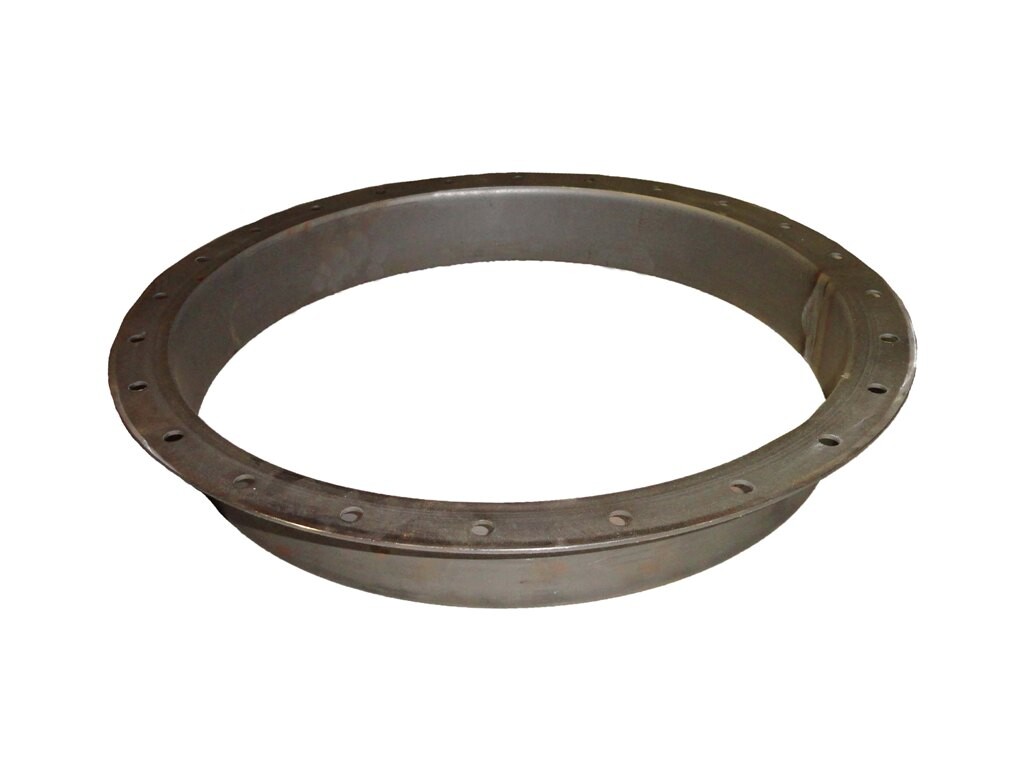

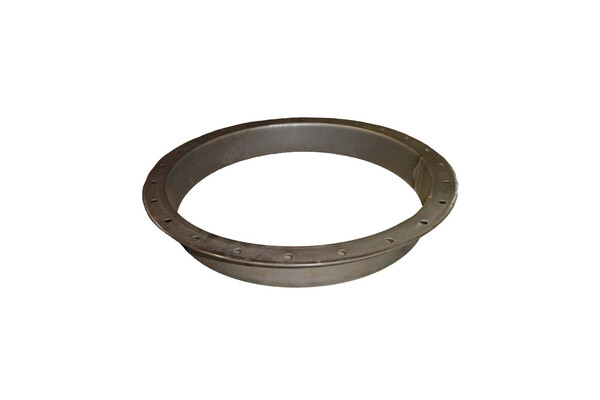

VOH700-26M: Mild Steel 24 bolt coaming to suit VOH750 Series.
