Piusi Pitstop DC Diesel Transfer Pump

All in one diesel dispenser unit with automatic hose reel

Package includes 14 metres of hose with an automatic hose rells and nozzle.  Allow dispensing up to 45 L/min via a DC power supply.

The automatic hose reel, the two DC pumps and the automatic nozzle are integrated in a sturdy supporting structure. Easy to install, versatile, compact, necessary to complete mobile or fixed tanks.

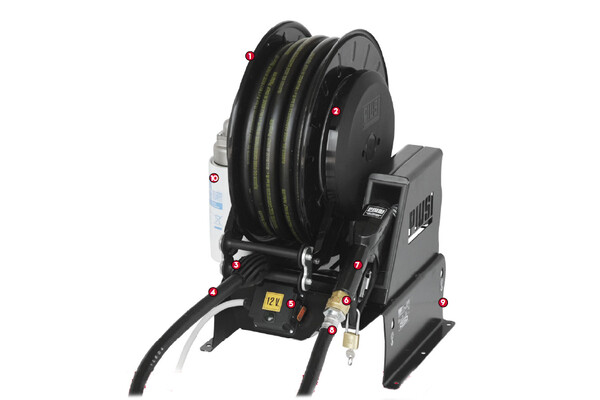

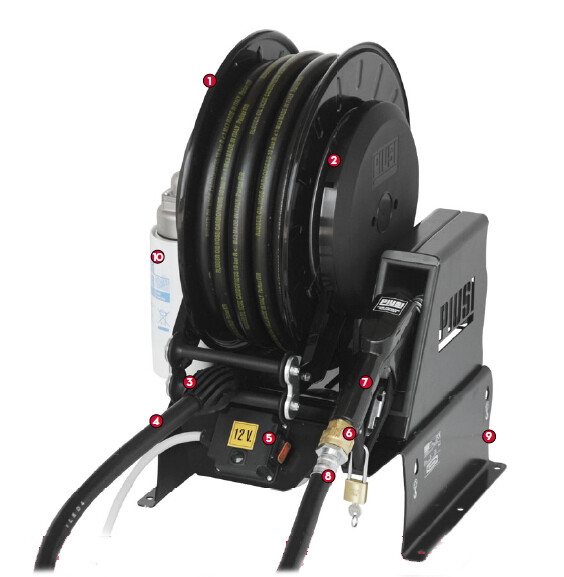

Dispenser Unit:

1. Automatic hose reel.
2. Side safety guards.
3. Adjustable arms with end-of-travel hose stop
4. Diesel hose 3/4”-14 m (1inch - 10 m).
5. On/Off switch
6. Swivel
7. Automatic nozzle
8. DC pumps
9. Sturdy metal supporting structure
10. PIUSI filter of the water absorption cartridge type

On request: Fitting of PIUSI K24, digital turbine meter tanks.



Features & Benefits

• Flow rate of 45 L/min
• 12-24 V DC operation
• For diesel transfer use
• Made in Italy

Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Piusi Product Code for the specific pump version you require listed on Data Sheet available for download from the resources section.

Technical Information

To view product specifications and technical data please download the PDF Data Sheet from the resources section.
