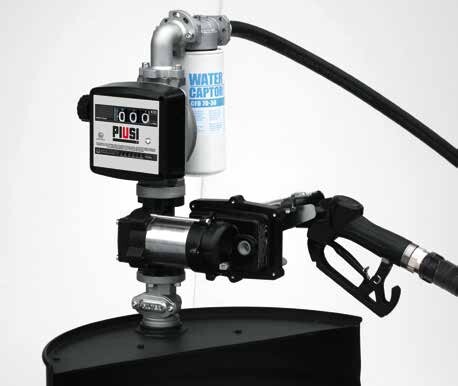

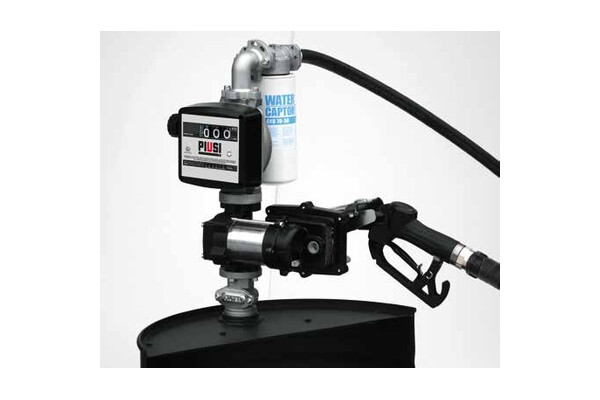

Piusi EX50 Drum Pump

ATEX/IECEx-certified transfer unit for explosive liquids (petrol, kerosene and diesel fuel) intended for non-commercial use.
Easily connected to drums via a quick 2 inch coupling. Fitted with a telescopic suction tube for direct connection to fuel drums and nozzle housing located above the drum, near the pump, for easy, clean use of the distributor.



• Compact and sturdy construction
• Cast-iron body
• High-efficiency pump able to dispense up to 50 L/min (13 gpm) with little voltage draw, ensuring a longer life
• Anti-noise filter (electromagnetic compatibility EMC)
• Fully-flanged components: pump, flow meter and filters can be fitted or replaced without the use of sealing paste, making the connections quick and safer
• An integrated bypass valve; thermally protected
• Integrated Check valve and Pressure Relief valve
• Integrated suction unit with further filter.
• Made in Italy

To order please call or e-mail Liquip Victoria and quote the associated Piusi Product Code for the specific pump version you require listed on Data Sheet available for download from the resources section.

To view product specifications and technical data please download the PDF Data Sheet from the resources section.
