Piusi MC Box FMS

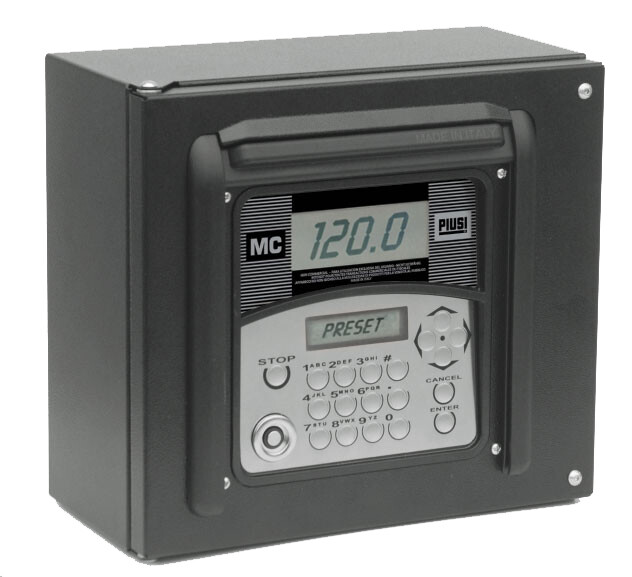

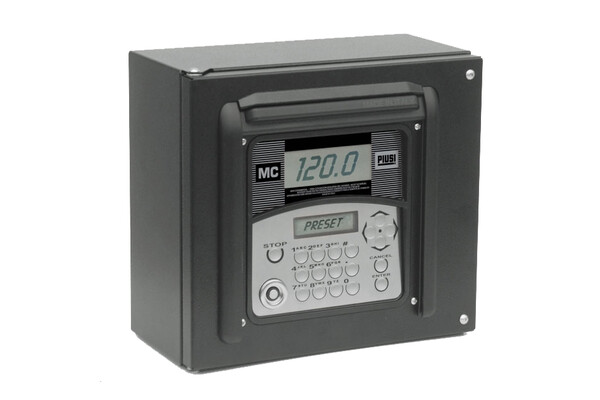

Multi-user control panel with accessories for PC connection. MC BOX permits: Pump ignition, identification of authorised users, Pre-selection of dispensed quantity, Management of pulse metre, Management of an external switch to switch off pump at minimum level, Management of micro switch connected to nozzle support, Connection to an external printer.


Technical features:



Features & Benefits

• Panel with dual display, keyboard and i-button reader.
• Controls up to 120 users through passwords or i-button keys.
• Calculates consumption of each individual user.
• Local memory up to last 255 operations.
• Possibility of inserting vehicle registration number, kilometres, date and time of dispensing.
• Dedicated software for printing individual detailed summaries.
• Possibility of managing up to 16 panels with one software.
• Key reader with USB socket for exporting data.
• RS converter with USB socket for direct connection with PC via cable up to 1000 metres.

Ordering Information

To order please call or e-mail Liquip Victoria and quote the model number you are interested in purchasing or using as part of your pump dispensing fuel managment system.

Technical Information

To view product specifications and technical data please download the PDF Datasheet or Brochure from the resources section.
