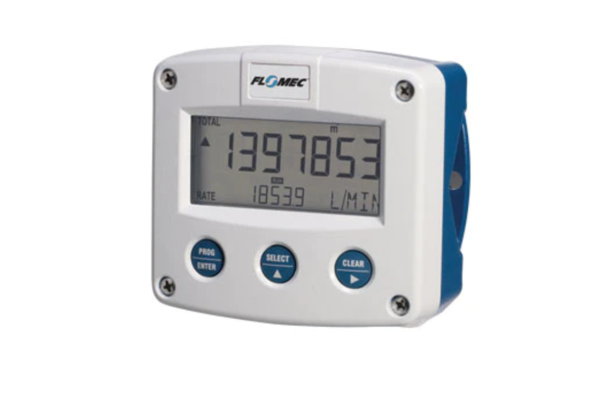

Flomec F018 Rate Totaliser

Flomec F018 Rate Totaliser

The F018 Rate Totaliser is highly sophisticated and rugged local display with digital and analogue outputs and HART Communication allowing easy communication with smart industrial control systems.

The F018 features a very large multi-line backlit LCD, which provides optimal readability from a distance or in low-light conditions. The available output options make this product suited to almost any flow measurement application, with a 4-20mA analogue signal for flow rate feedback and control, flow alarms for monitoring of critical processes, and a scaled pulse signal for remote monitoring of total volumes. With the addition of HART Communications, the F018 is perfect for smart instrumentation systems ranging from basic automation systems to sophisticated industrial control and monitoring applications.

The F018 is housed in a robust glass reinforced nylon enclosure with an IP66/67 rating, rubberised buttons, a polycarbonate lens, and comes with an optional Intrinsically safe approval to IECEx, ATEX, FM, and CSA. The F018 a fantastic product for almost any flow measurement application in both safe and hazardous areas.


Features & Benefits

The F018 Rate Totaliser is the perfect product for any sophisticated HART enabled control system.

  • Robust IP66/67 glass reinforced nylon enclosure
  • Multi-line LCD displays flow rate and total simultaneously
  • Battery powered with 5 year life span
  • Broad operating temperature range; -40°C to +80°C or -40°C to +70°C when intrinsically safe.
  • 15 point linearization of flow meter accuracy curve
  • 4-20mA loop powered analogue output with 12 bit resolution and exceptional accuracy.
  • NPN scaled pulse output is well suited to remote recording of total volume, particularly in PLC’s with low input frequency restrictions.
  • Flow alarms for high, low, or high/low allows precise control over critical processes such as coolant flow or bearing lubrication.
  • Two totals (1 x resettable, 1 x non-resettable), and one flow rate display
  • Totals and flow rate units are selectable for Litres, Imp Gallons, US Gallons, cubic Meters, kilograms, pounds, and barrels.
  • Flowrates can be displayed in /second, /minute, /hour, or /day.
  • Can be direct mounted on any OM series, DP series, or TP series flow meter.
  • Can be remote mounted in a panel, or on a wall or pipe (mounting kits purchased separately).
  • Optional Intrinsically Safe approval


Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Flomec Product Code for the specific meter or totaliser version you require listed on Datasheet available for download from the resources section.

Technical Information

To view all product specifications and technical data please download the PDF Datasheet from the resources section.
