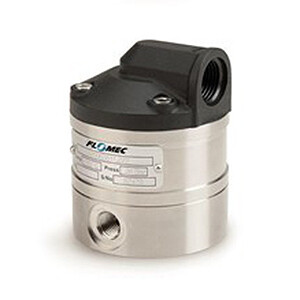

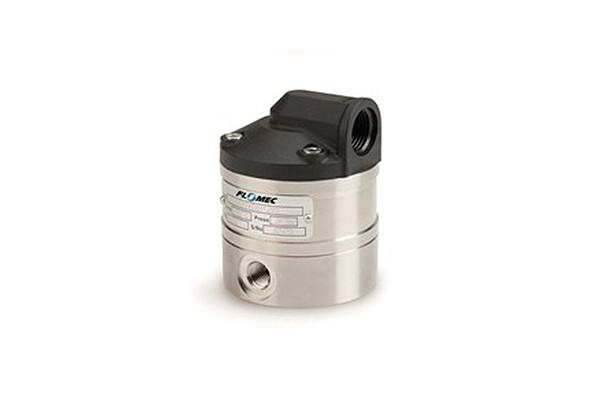

Flomec OM Series Oval Gear Meter - Small Capacity

Flomec OM Series Oval Gear Meter - Small Capacity

The FLOMEC® Small Capacity OM Series Oval Gear meters are well suited to measurement of very low flow rates of various additives, chemicals, fuels, lubricants, and purified waters. Exceptional accuracy and reliability can be obtained on clean liquids of almost any viscosity.

Particularly when flow rates are very low and the viscosity is high, small capacity OM-Series meters provide exceptional performance, while other technologies can provide disappointing results.



Sizes & Applications

OM Series Oval Gear flow meters are perfect for measuring small volumes of a thick or non-conductive liquids.


  • Sizes 1/8” – 3/8” (4mm-10mm) Pipe Sizes | Flows from 0.5L/hr – 550L/hr with Pulse-Out or LCD Display


  • Fuel additive injection
  • Fuel consumption measurements
  • Diesel injector/pump test equipment
  • Water treatment chemical dosing (flocculants, surfactants, biocides, etc.)
  • Corrosion inhibitor dosing
  • Demineralised / RO water dosing or dispensing
  • Monitoring of oil or grease lubricants
Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Flomec Product Code for the specific meter version you require listed on Datasheet available for download from the resources section.

Technical Information

To view all product specifications and technical data please download the PDF Datasheet from the resources section.
