Flomec E018 Rate Totaliser

Flomec E018 Rate Totaliser

The E018 Rate Totaliser is a highly sophisticated IECEx and ATEX rated Explosionproof local display with digital and analogue outputs and HART Communication; allowing easy communication with smart industrial control systems.

The E018 features a very large multi-line backlit LCD, which provides optimal readability from a distance or in low-light conditions. The explosionproof enclosure combined with the standard outputs on the E018 make this product suited to almost any hazardous area flow measurement application. The E018 has a 4-20mA analogue signal for flow rate feedback and control, flow alarms for monitoring of critical processes, and a scaled pulse signal for remote monitoring of total volumes. With the addition of HART Communications, the E018 is perfect for smart instrumentation systems ranging from basic automation systems to sophisticated industrial control and monitoring applications.

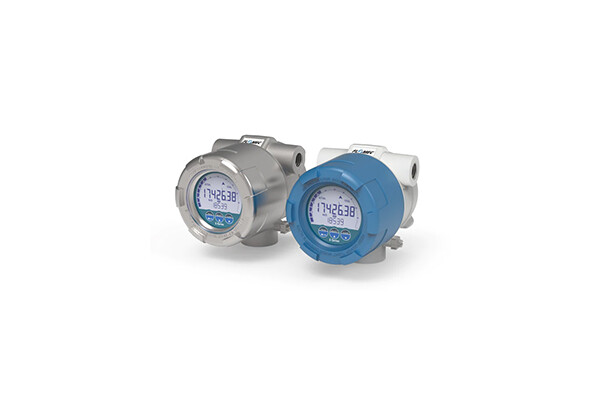

The E018 is housed in an Aluminium or Stainless Steel explosionproof enclosure with an IP66/67 rating, and capacitive touch keys that allow operation of the product through the explosionproof glass window.


Features & Benefits

The E018 Explosionproof Rate Totaliser is the perfect product for any hazardous area flow measurement applications where the explosionproof protection concept is used.

  • Explosionproof according to ATEX, IECEx, FM, and CSA.
  • Aluminium or Stainless Steel Explosionproof enclosure
  • Highly sophisticated LCD displays flow rate, total, measuring units, and a flow rate indicating speedometer.
  • 15 point linearization of flow meter accuracy curve
  • Very broad operating temperature range; -40°C to +70°C
  • 4-20mA loop powered analogue output with 12 bit resolution and exceptional accuracy.
  • NPN scaled pulse output is well suited to remote recording of total volume, particularly in PLC’s with low input frequency restrictions.
  • Flow alarms for high, low, or high/low allows precise control over critical processes such as coolant flow or bearing lubrication.
  • Two totals (1 x resettable, 1 x non-resettable), and one flow rate display
  • Totals and flow rate units are selectable for Litres, Imp Gallons, US Gallons, cubic Meters, kilograms, pounds, and barrels.
  • Flowrates can be displayed in /second, /minute, /hour, or /day.
  • Can be direct mounted on any OM series, DP series, or TP series flow meter.
  • Can be remote mounted in a panel, or on a wall or pipe (mounting kits purchased separately).


Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Flomec Product Code for the specific meter or totaliser version you require listed on Datasheet available for download from the resources section.

Technical Information

To view all product specifications and technical data please download the PDF Datasheet from the resources section.
