Piusi K24 AdBlue Turbinox Electronic Meters and Pulsers

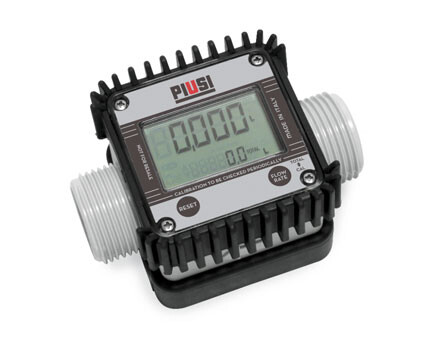

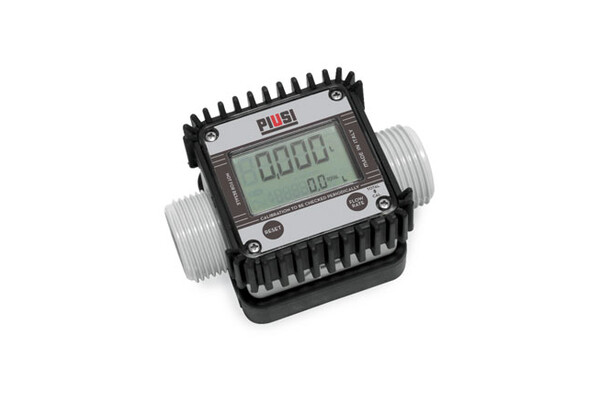

K24 FLOW METER for Adblue
The K24 Urea iseasy to install, in line or at the end of the delivery hose, it is provided with a compact easy readable display. It is possible to apply the meter directly on the nozzle.

K24 PULSE METER
Type of output signal: raw signal (reed switch), single channel. Max 28 V Ac/dc 100 mAmp.

TURBINOX INLINE PULSE METER
This meter is easy to install. A tight stainless steel body provides endurance for use in every conditions. Also available in a pulser display to connect an external receiver. User can quickly substitute the 2 display batteries.



Features & Benefits

• For use with AdBlue (Urea)
• User can quickly substitute the 2 batteries.
• Display can be rotated in 4 different positions.
• Impulse type signals: single channel, reed switch.
• Electronic card with LCD display:
- 5 digit partial total from 0.1 to 99999
- 6 digit total from 1 to 999999.
- Resettable total available.
- Flow rate indication.


• Made in Italy

Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Piusi Product Code for the specific meter or pulser version you require listed on Datasheet available for download from the resources section.

Technical Information

To view product specifications and technical data please download the PDF Datasheet from the resources section.
