Piusi K24 A Electronic Meters and Pulsers

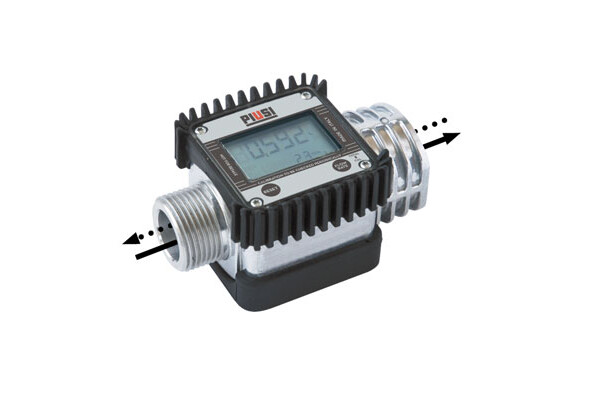

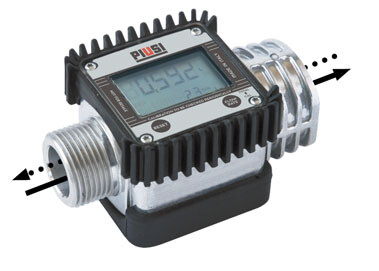

A digital (electronic) flow meter for low-viscosity fluid reading. Easy to install, in line or at the end of a delivery pipe, it comes equipped with a screen that can be adjusted to various positions for easy reading.

The ideal instrument for controlling fluid dispensing, thanks to a sturdy casing and a sealed electronic car, making it suitable for use in practically all conditions.

Can be used to meter the transfer diesel, petrol, keosene, food, antifreeze and Adblue (dependant of model type).



Features & Benefits

• Flow rate up to 70 L/min
• Accuracy: +/- 0.5 %
• Aluminum (K24) or reinforced polyamide (plastic version) body.
• Polypropylene turbine.
• Impulse-type signals: - single channel, reed switch.
• Electronic card with LCD display:
- 5-digit partial from 0.1 to 99999
- 6-digit total from 1 to 999999
• Resettable total available
• Flow rate indication
• Repeatability 0.2 %.
• Loss of pressure < 0.03 bar at 120 L/min.
• Can be calibrated.
• Powered by two AAA batteries
• Made in Italy

Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Piusi Product Code for the specific meter version you require listed on Datasheet available for download from the resources section.

Technical Information

To view product specifications and technical data please download the PDF Datasheet from the resources section.
