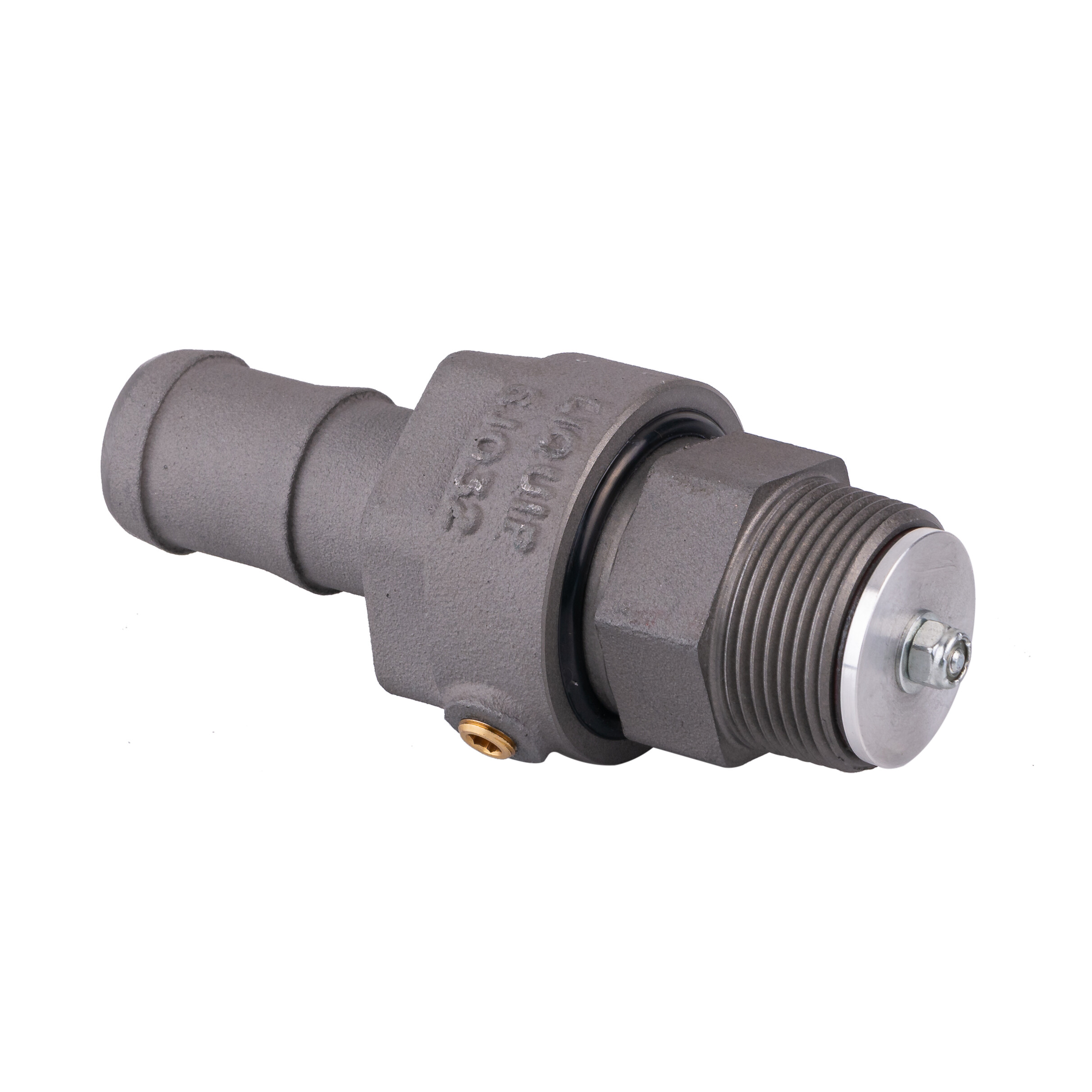

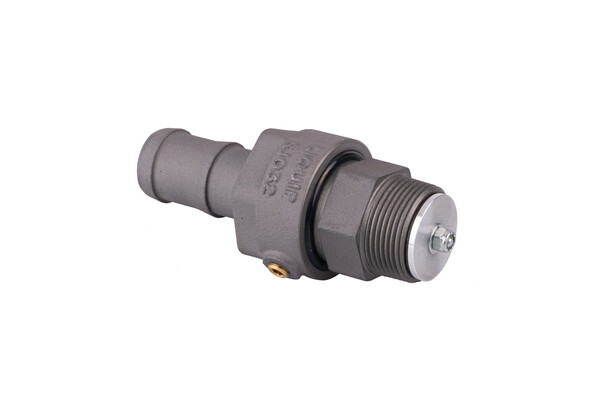

32mm aluminium swivel

The SJ032 is an aluminium swivel incorporating a 32mm hosetail and integral check valve to retain residual hose internal pressure (mandatory under NSC Regulations).

Features & Benefits
  • Ball bearings allow for trouble free rotation, thus eliminating thrust & hose kinking.
  • Swivel body is manufactured from lightweight aluminium, anodised for long life.
  • Swivel incorporates a check valve, to retain residual pressure in the hose. (Mandatory under NSC regulations).
  • Can be mounted via hose tail or threaded end.
Technical Information

Pressure
Poppet opens at 55 kPa.

Mounting
1 ¼” tapered male BSP thread.
1 ¼” hose tail.
NOTE: Ensure sufficient flow area between poppet and bore of female body when assembled.

Materials
-Anodised aluminium body.
-Aluminium poppet.
-Steel ball bearings.
-Viton sealing o-ring.

Weight
0.38 kg.

Ordering Information

SJ032: Swivel 32mm (1 ¼") with hold back valve and ball bearings.

Associated Equipment

SJ1.5L: Swivel 1½" straight swivel c/w hold back valve.
