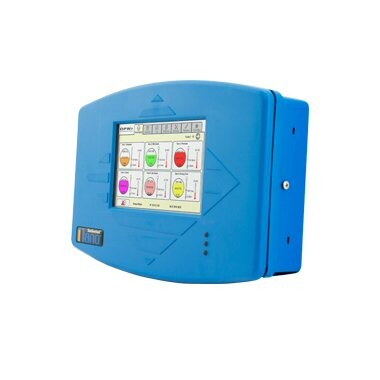

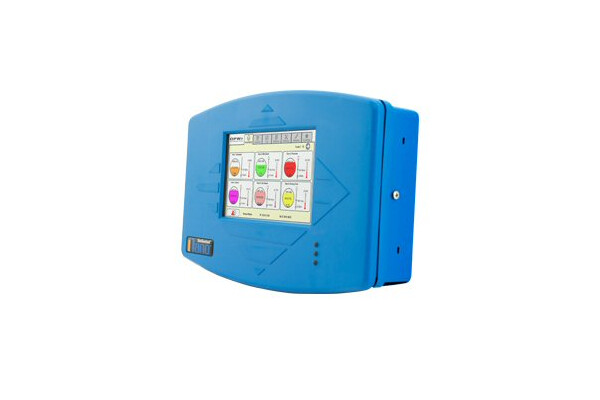

SiteSentinel® Nano® Specifications
- Dimensions: 21cm H x 32.5 cm W x 6 cm D
- Power: 120/240 VAC +/- 10%, 50/60 Hz, 30 W
- Operating Temperature Range: 0°C to 50°C
- Display: 18 cm color LCD touchscreen display
- Graphical user interface
- Printer: External USB
- Standard Alarms: Buzzer, Light and Acknowledge
- Optional Alarms: External Tank Alert (internal relay)
- Alarm Notifications: Email, Fax, SMS
- Network Connectivity: DHCP/static addressable RJ-45 Ethernet ports, supports corporate and local LANs
- Communication Ports:
- One (1) RS-232 Communication port
- One (1) RS-485 Communication port
- One (1) RS-422 Communication port
- One (1) Ethernet port
- Two (2) USB ports
- Two (2) Internal inputs
- Two (2) Internal outputs
SiteSentinel® Nano® Leak Test Certification
EPA Static Leak Test Certified:
- 0.2 gph (0.76 L/hr) Static Leak Test
