210 High-Flow Nozzles

For High-Flow, Bulk Fuel Oil Delivery Service.

Designed to handle high flow when line pressure is not a critical consideration or otherwise absorbed.

Right angle construction provides an ergonomic and compact design for better grip and easier control, permitting the nozzle to fit into awkward space close to walls and into corners.

Can be supplied complete with spout.

Features & Benefits
  • Aluminium Body - lighter weight, easier to maneuver.
  • Dual Poppets - allows for low-flow metering.
  • Replaceable Hold-Open Rack - for use when fueling large-capacity tanks. Nozzle must be attended at all times during usage.
  • Dash Pot - non-adjustable, to minimize closing line shock.
  • Right Angle Design - provides larger lever area for better grip and easier control; permits nozzle to fit into awkward spaces close to walls and into corners.
  • Drag Lugs - protect the nozzle when dragged across rough surfaces; adds to long life with rough usage.
  • Easily Replaced Spout - the spout is simply threaded into the body. Replacement spouts are readily available from OPW.
  • NPT or BSP Female Threads at Inlet End - standard pipe threads accept all standard 1-1/4" and 1-1/2" male connections.
Ordering Information

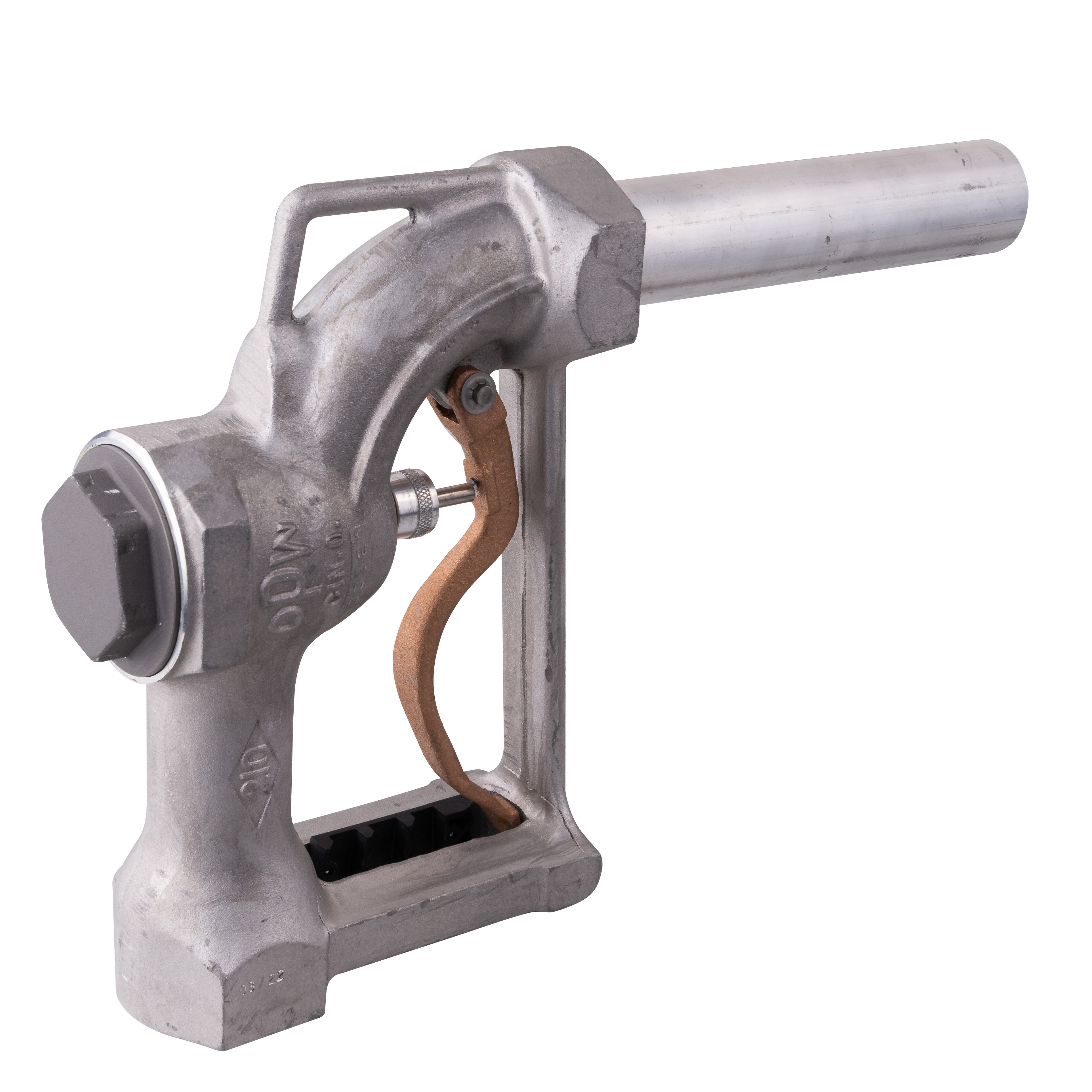

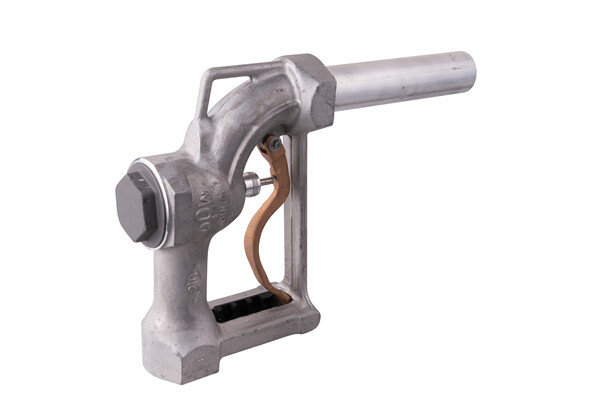

210L0104LLIQUIP: Nozzle 1 ¼" 210 BSPP W/ Spout.

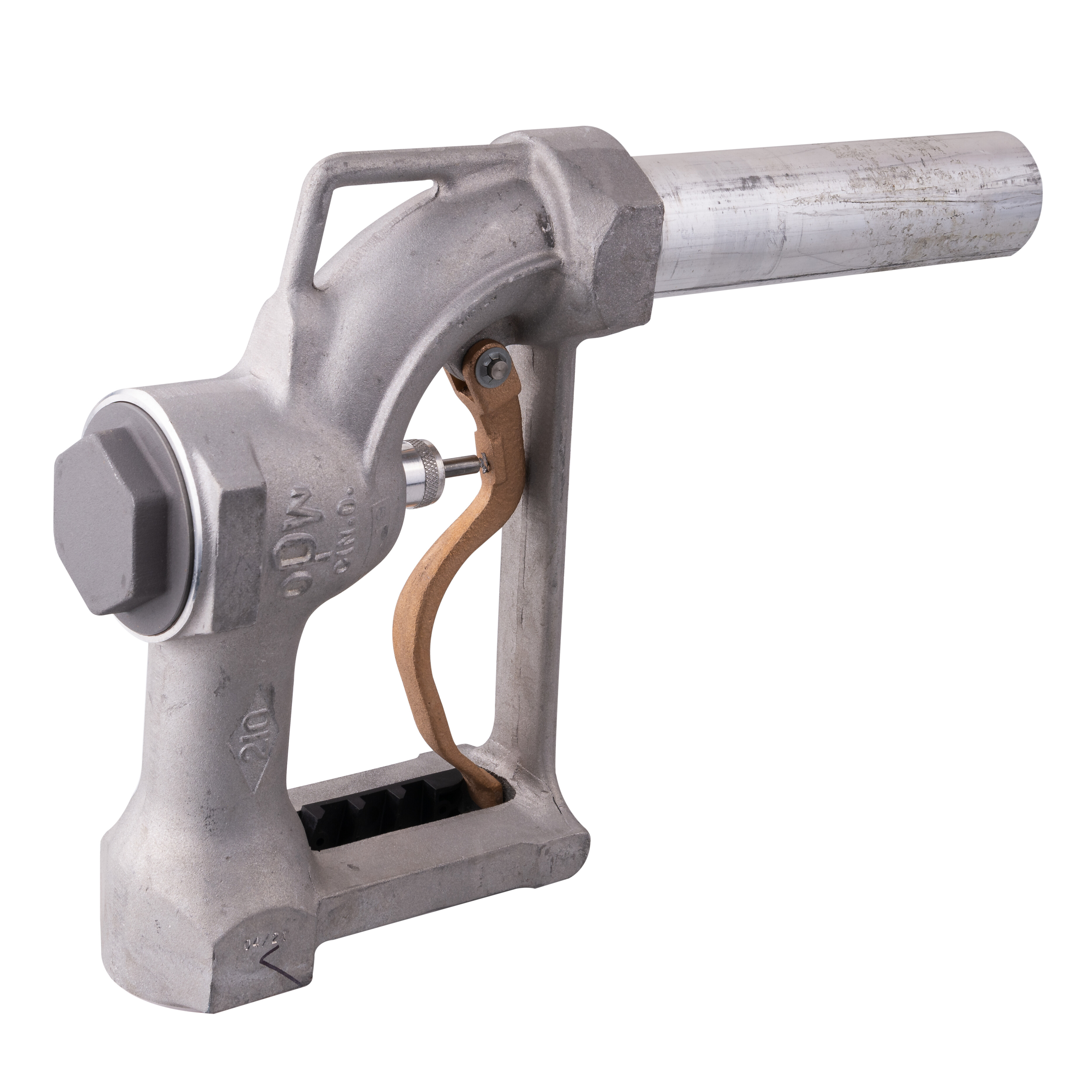

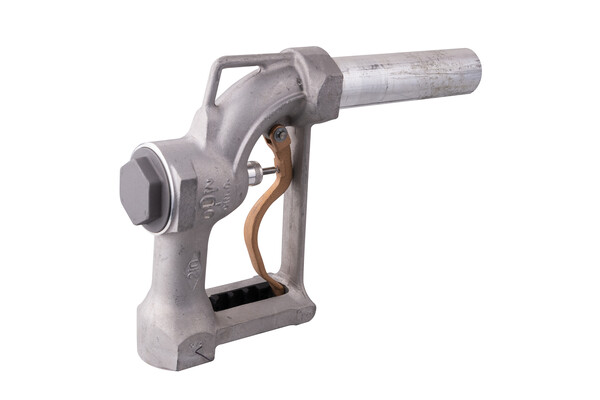

210L0105LLIQUIP: Nozzle 1½" 210 BSPP W/ Spout.

1290L-075L: Nozzle AUTO 1 1/2" BSPP INCLUDES SPOUT OPW

210-0104: Nozzle  1¼" NPT VITON, NO SPOUT **NPT THREADS**

210-0105: Nozzle 1½" NPT VITON, NO SPOUT **NPT THREADS**

Spare Parts

297-9020: Aluminium Spout 1 ¼" NPT OPW SUIT 190L and 210L series nozzles.

297-9030: Aluminium Spout 1 ½" NPT OPW SUIT 190L and 210L series nozzles.

H00195RB: Stuffing Box suit 210 Nozzle

C04495M: Packing suit 210 Nozzle

H07012M: Packing gland suit 210 Nozzle

H01841: Lower Disc S/A suit 210 Nozzle

190K-0001:Upper Poppet suit 210 Nozzle

H00999M: Brass Lever suit 210 Nozzle

H08163M: NUT PUSH TO SUIT THE 190 LEVER

Technical Information

Design working pressure
50 psi maximum pressure.

Materials
Body: Cast aluminium.
Main Stem: Stainless steel.
Stem Seal: Graphite with Teflon®.
Disc: Viton®.
Spout: OPW 296 brass or 297 aluminium (optional).
