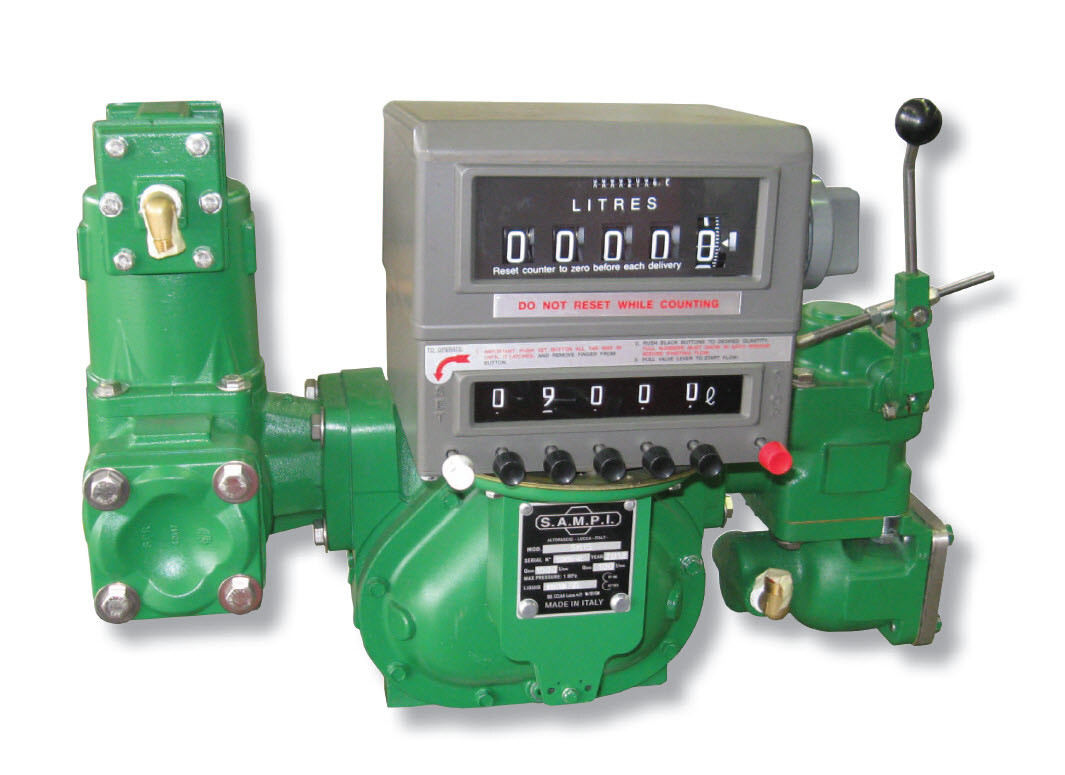

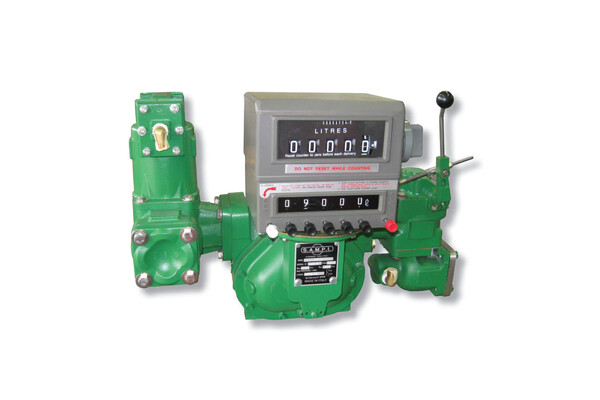

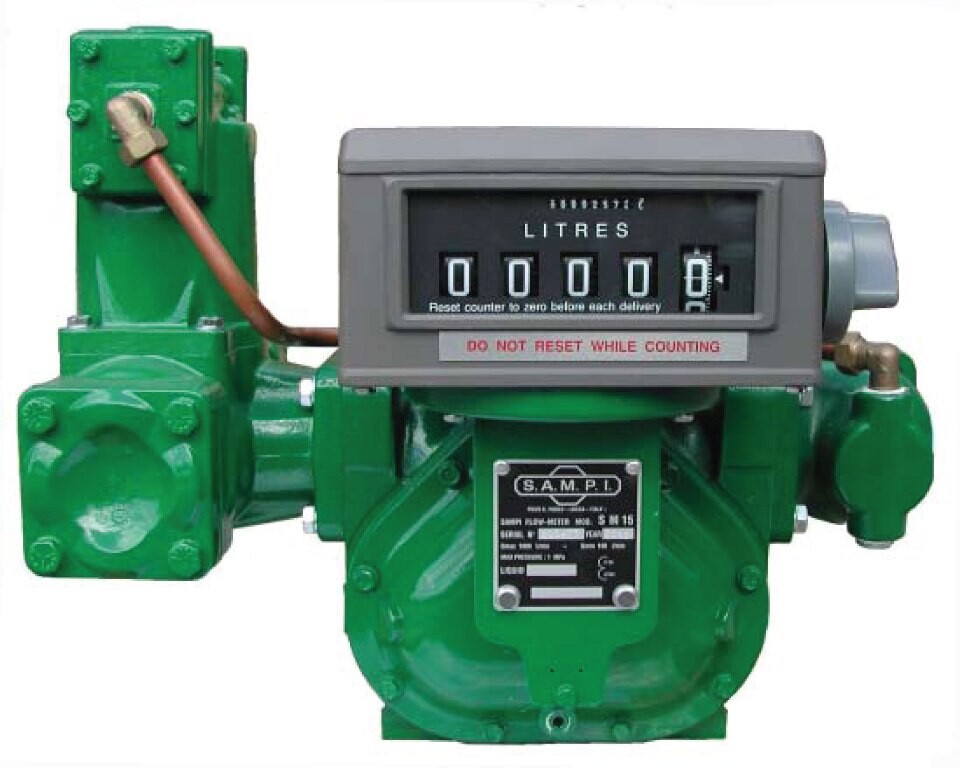

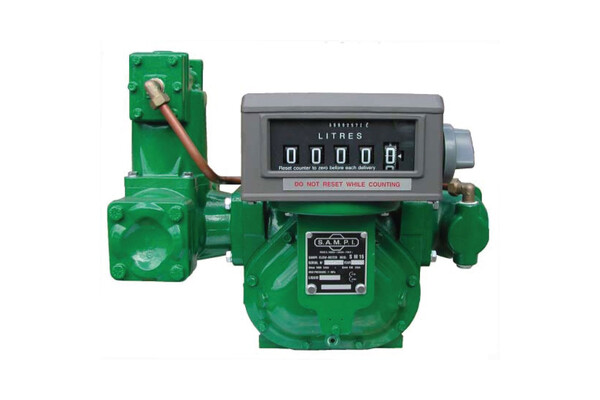

SAMPI Positive Displacement Flow Meters (SM-Series)

SAMPI meters are known worldwide for exceptional accuracy, reliability and longevity in a broad range of applications. Meters provide exceptionally accurate service when using unique positive displacement metering principle, even under variable operating conditions.

The SAMPI PD meter consists of a housing in which two vanes and a rotor turn in synchronized relationship within three cylindrical bores with no metal-to-metal contact within the meter element.

Typical products measured are: adhesives, agricultural chemicals, asphalt, animal feeds, aviation, beverages, concrete add mixtures, cosmetics, crude oil, dairy products, fuel, fuel oil, industrial chemicals, liquid fertilizers, liquefied gasses, lube oils, pharmaceutical chemicals, paints and varnishes, printing ink, processed foods, refined petroleum products, and so on.

Typical industry applications are:

- Truck/Tanker
Aviation
- Terminal & Bulk Plant
- General Industrial
- Marina
- Other Mobile Applications

Liquip offer the SM range of meters which are NMI approved (5/6B/99A) as per the below listing:

Model Min Flow rate L/min Max Flow Rate L/min
SM5/M5 25 250
SM7/M7 50 500
SM1/M10 55 550
SM15/M15 100 1,000
SM25/M25 115 1.150
SM30/M30 170 1,700
M40* - 1,700
SM50 Gravity* - 1,300
M60* - 2,800
M80* - 3,300

*Contact Liquip for approval status.

Features & Benefits
  • Superior Accuracy at constant flow: With all other conditions being constant, the SAMPI meter does not vary more than 0.05% in repeatability over the entire range.
  • Accuracy over the widest range of flow: The SAMPI meter has an ideal combination of minimum seal or slippage area with lowest pressure differential across the seal. This results in better accuracy over a wide range of flow than available in other type of commercially produced positive displacement meters.
  • Accuracy regardless of pressure fluctuations: With the SAMPI meter's unique dual-case design, the bearing surfaces of the meter element are internally and externally subjected to the same system pressure. Therefore, the meter element cannot be stretched or distorted to cause changes in seal area that would adversely affect accuracy.
  • Low Maintenance cost.
  • Low pressure loss.
  • Self-contained operation without electrical power.
  • Available with traditional mechanical seals or with glandless magnetic driven pulse output device.
  • Weights & Measures approval (world-wide) for custody transfer.
  • Electronic accessories designed and approved to ATEX 94/9 normative.
  • Can be partnered with Liquip's DFV electronic register for an automatic register head.
Technical Information

Sizes
1" 1/2 up to 4".

Flow Rates
19 L/min - 3,780 L/min.

End Connections
ANSI Flanged, NPT, BSPT, Slip Weld.

Pressure Ratings
Cast Case: 10 & 25 bar (150 & 350 PSI) non-shock working pressure.
Two Case Steel Case: 10/10, 10/21, 20/20, 20/50 bar (150/150, 150/275, 300/300, 300/720 PSI); 40/100 bar (600/1440 PSI) ANSI non-shock working pressure.

Materials
-Meter Body, Rotor and Vanes: Aluminium, Hard Anodized Aluminium, Cast Iron, Steel, Stainless Steel.
-Seals: Buna "N", Viton®, Teflon®.

Accuracy (Mechanical Registration)
Capable of ±0.125% over a 5:1 range.
Capable of ±0.22% over a 10:1 range.
Capable of ±0.5% over a 40:1 range.

Repeatability (Mechanical Registration)
0.05% (±0.025%) of reading over entire range.

Model Flange Size Max Nom. Flow Rate
SM5/M5 1½" or 2" 227 L/Min
SM7/M7 2"or 1½" 500 L/Min
SM10/M10 2" 550 L/Min
SM15/M15 3" or 2" 1,000 L/Min
SM25/M25 3" 1,150 L/Min
SM30/M30 4" or 3" 1,700 L/Min
M40* 4" 1,700 L/Min
SM50 Gravity 4" 1,300 L/Min
M60* 4" or 6"  2,800 L/Min
M80* 6" 3,300 L/Min

*Contact Liquip for approval status.



Ordering Information

Common Models:

Item Description

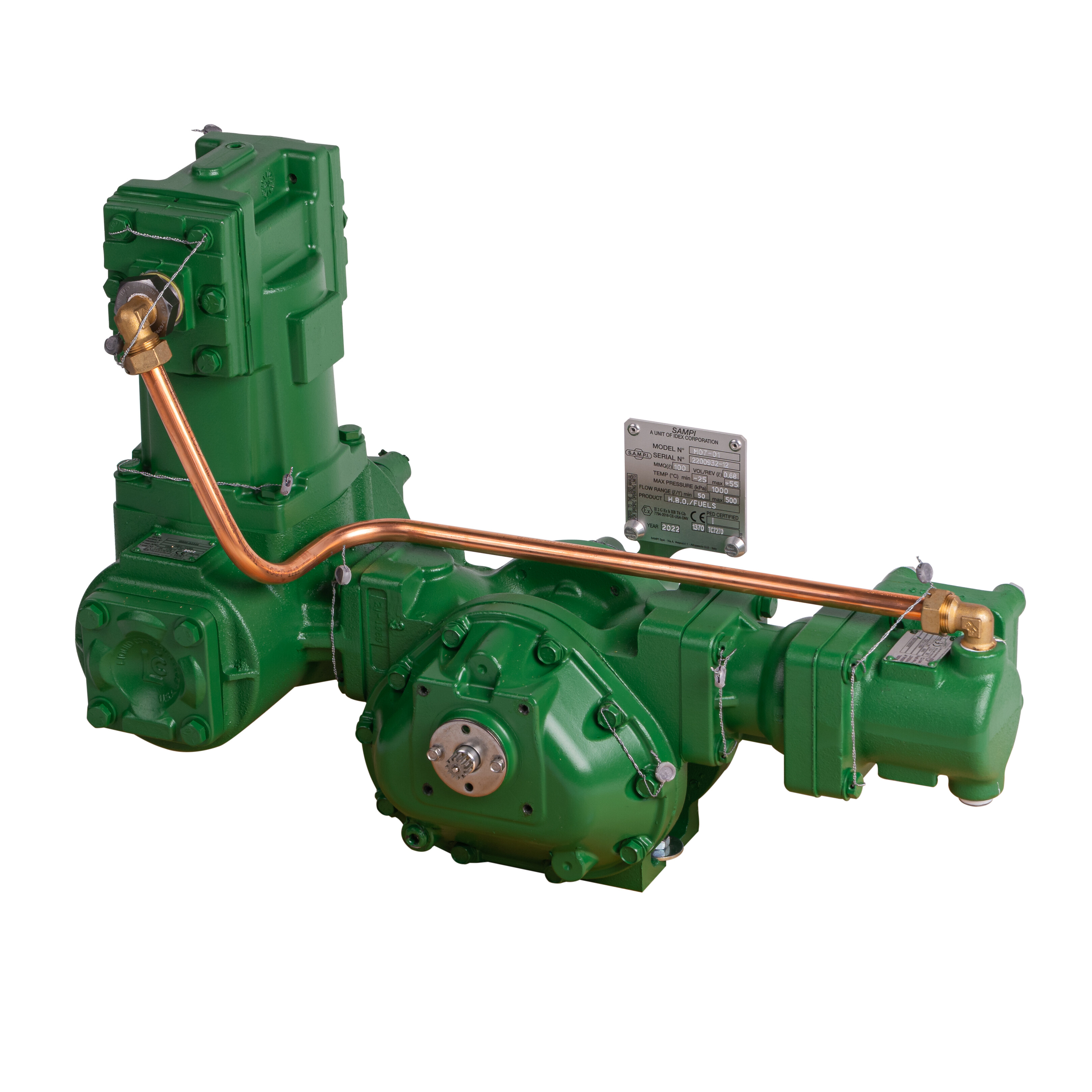

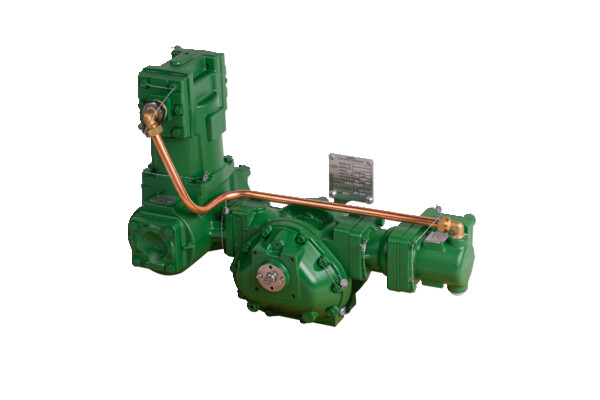

SM_07SX01M2 METER M7 SAMPI BARE SHAFT C/W FLANGE
SM_07CX0100 METER M7 SAMPI A/E ACV PLAIN C/W FLANGE
SM_07CX0200 METER M7 SAMPI CLASS 2 C/W FLANGE
SM_07SX02M2 METER M7 SAMPI AVIATION
SM7P1 SM7 METER CHAMBER (BODY) ONLY, CLASS 1



Note: For Spare Parts and Accessories please contact the Liquip Sales team
