LYNX Series Bottom Loading Coupler

Not Just Better In Every Way. The Best In Every Way.

The LYNX Series combines all of the best features of API couplers in one impressive device to provide a superior and effortless bottom loading experience.

Featuring stainless-steel components and coming in at 8.6kg (19 lbs), the LYNX Series coupler is impressive by any measure.

Count on LYNX for years of service and to help minimize fluid loss.

Fast Disassembly, Less Downtime
If you have 30 seconds and a screwdriver, you can disassemble LYNX. Thanks to a U-pin design, loading-arm operators can perform coupler maintenance without special tools and do it quickly.

Note: 5 year extended warranty is applicable to North America only.

Suitable for :

Features & Benefits

Safety and Reliability

  • Optimised design to bring your liquid terminals and tank trucks the very best in dry-break API technology.
  • Minimal product leakage during disconnect increases site safety.
  • Low risk of leakage because of a proven seal design.
  • Four, "true interlocking" stainless steel latches ensure secure coupling and maximum safety.
  • Lightweight without reducing safety and reliability.
  • High-quality components including a stainless-steel collar and hard anodized aluminum body for increased service durability and life.
  • Ultra-durable stainless-steel collar to its ability to protect your loading-arm connection even when facing surge pressures up to 3,400 kPa
  • Proven seal design

Performance and Convenience

  • Quick and easy disassembly of entire coupler through U-pin design.
  • U-pin is secured when the TTMA flange is fastened to prevent the pin from coming out during service.
  • Fast in-field replacement of main seals, on or off the arm.
  • Two operating handle sizes to suit customer preference.
  • Nominal product leakage during disconnect increases site safety.
  • Collar designed to ensure minimal distortion of critical latching face.
  • Easy to operate handle with a noticeable positive lock.
  • A variety of seals available to suit a range of applications

Comfort and Style

  • Automatic latching.
  • Ergonomic operating handle and carry loop results in less physical strain on users.
  • Two operating handle sizes to suit customer preference.
Technical Information
Part Description
Handle Length Short 150mm (5.9") or
Long 200mm (7.8")
Seal Options

-Viton B.
-Viton GFLT (recommended for ethanol blends).
-FFKM.
-NBR (Nitrile/Buna).
-EPDM
-Tecnoflon (Ultra Low Temperature)

Others available upon request.
Max Working Pressure 80 psi (5.5 bar) (550 kPa).
Product Test Pressure 119 psi (8.2 bar) (820 kPa).
Design Pressure 363 psi (25 bar) (2,500 kPa).
Max Surge Pressure 493 psi (34 bar) (3,400 kPa).
Operating Temperature Viton B70
-15°C to 90°C (0°F to 200°F).
Viton GFLT
-28°C to 90°C (-20°F to 200°F).
FFKM
-5°C to 80°C (-23°F to 176°F).
Nitrile/Buna
-40°C to 100°C (-40°F to 212°F).
EPDM
-34°C to 149°C (-29°F to 300°F)
Tecnoflon
-40°C to 90°C (-40°F to 200°F).
Design Standard API RP 1004 8th EDITION 2003 - Bottom Loading and Vapor Recovery; AS5602-2009.
Dismantling Removal of one U-pin enables the shaft assembly and main poppet to be withdrawn.
Mounting

By industry standard 4” (100 mm) TTMA Flange.

8 holes Ø7/16” on 5.8” PCD, 6.6” outside diameter (Ø11 mm on 149 mm PCD, 168 mm OD).

Use spring washers when mounting coupler as per common industry practice.
Adjustment or Service

Refer to Maintenance Instructions document.
Weight

LYNX85x Couplers: 8.6kg (19 lbs.)
LYNX86x Couplers: 10.81kg (23.83 lbs.)



Ordering Information

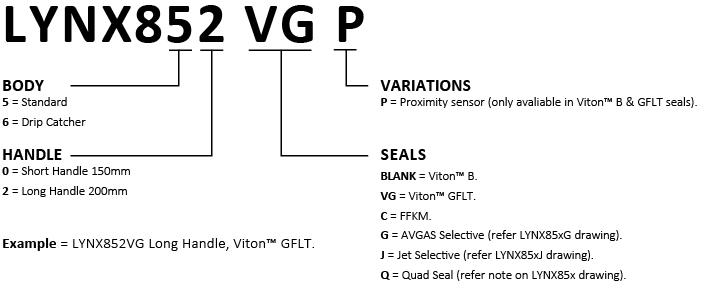

Configurator

asset_image

Commonly Purchased Variants

LYNX850: Female API Coupler, Short Handle, Viton B.

LYNX850VG: Female API Coupler, Short Handle, Viton GFLT.

LYNX850C*: Female API Coupler, Short Handle, FFKM.

LYNX850P: Female API Coupler, Short Handle, Viton B, Proximity sensor.

LYNX850VGP: Female API Coupler, Short Handle, Viton GFLT, Proximity sensor.

LYNX852: Female API Coupler, Long Handle, Viton B.

LYNX852VG: Female API Coupler, Long Handle, Viton GFLT.

LYNX852C*: Female API Coupler, Long Handle, FFKM.

LYNX852G: Female API Coupler, Long Handle, Viton B - AVGAS Selective.

LYNX852J: Female API Coupler, Long Handle, Viton B - Jet Selective.

LYNX852VGP: Female API Coupler, Long Handle, Viton GFLT, Proximity sensor.

LYNX860: Female API Coupler, Short Handle Drip Catcher, Viton B.

LYNX860VG: Female API Coupler, Short Handle Drip Catcher, Viton GFLT.

LYNX862: Female API Coupler, Long Handle Drip Catcher, Viton B.

LYNX862VG: Female API Coupler, Long Handle Drip Catcher, Viton GFLT.

*Product wetted components have been chosen for increased resistance to an wider range of fluids than other LYNX models. The materials used in the "C" versions are listed on the LYNX datasheet. Final product suitability is the responsibility of the end user.

Note: Please see datasheet for other seal options and for a list of spare parts available.


Associated Equipment

LBM800: Liquip Loading Arm Balance Assembly.

LBV450VG: 4" Butterfly Valve, Viton GFLT seals.

BF4-SG-25: 4" TTMA sightglass flange, 25mm thick.

BF4-SG-40: 4" TTMA sightglass flange, 40mm thick.

0657V: 4" TTMA Viton Gasket.

4248: 4" TTMA Klinger Gasket
