Vacuum Breaker

Vacuum breakers fit into top loading valves or the suction side of pumping systems. They ensure the piping systems are able to be drained quickly and completely.

The VB100 Series is ½" vacuum breaker that is fitted with Viton A seals and operates at 1-2 kPa.

The VB100U Series is ½" vacuum breaker that is fitted with Viton A seals and operates at 35 kPa.

Suitable for :

Technical Information

Pressure
VB100, VB100SS and VB100SSVG open at 1-2 kPa vacuum (Gravity draining systems).

VB100U & VB100USS open at 35 kPa vacuum (Pump systems).

Orifice equal to 6mm dia hole.

Operation
Spring loaded poppet opens at a set vaccum to allow air into the high section of the system and removing any vacuum that may ‘hang-up’ a liquid column.

Mounting
Into ½" BSP and NPT female socket.

Ensure the poppet head is level with the inner end of the socket thread inside the pipe when fitted, in order to maximise flow area.

Materials
-Brass body, polyurethane cap, stainless steel spring.
-Poppet:
    Acetal: VB100, VB100SS and VB100SSVG.
   Stainless steel: VB100U and VB100USS.
-Seal is Viton A standard (coloured red).
-VB100SS & VB100USS have a stainless steel body.

Weight
0.14 kg.

Ordering Information

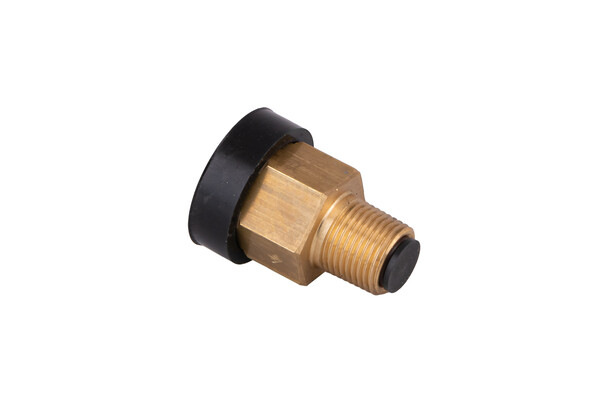

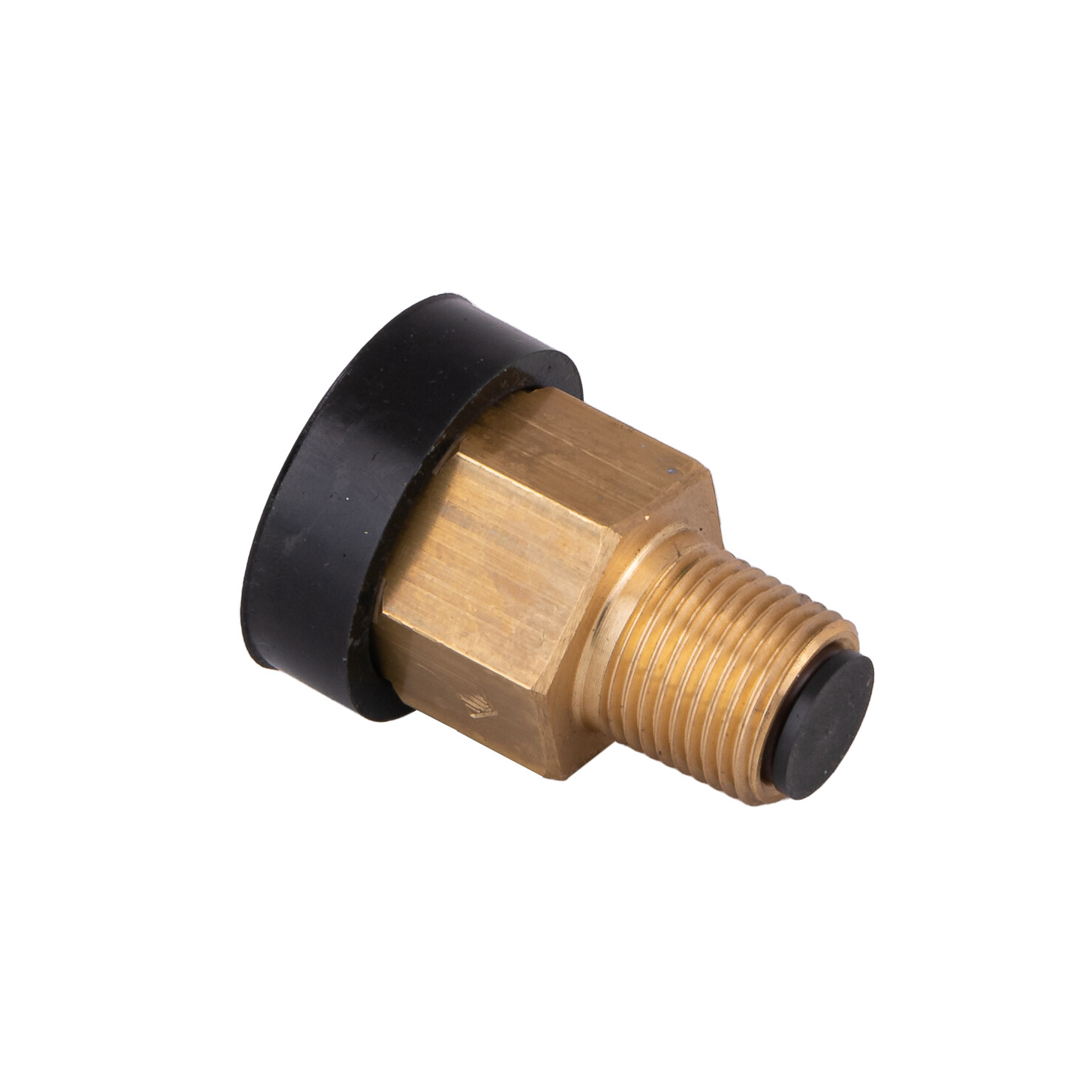

VB100: ½" BSP and NPT Vacuum Breaker Brass, Viton A seals (1-2 kPa).

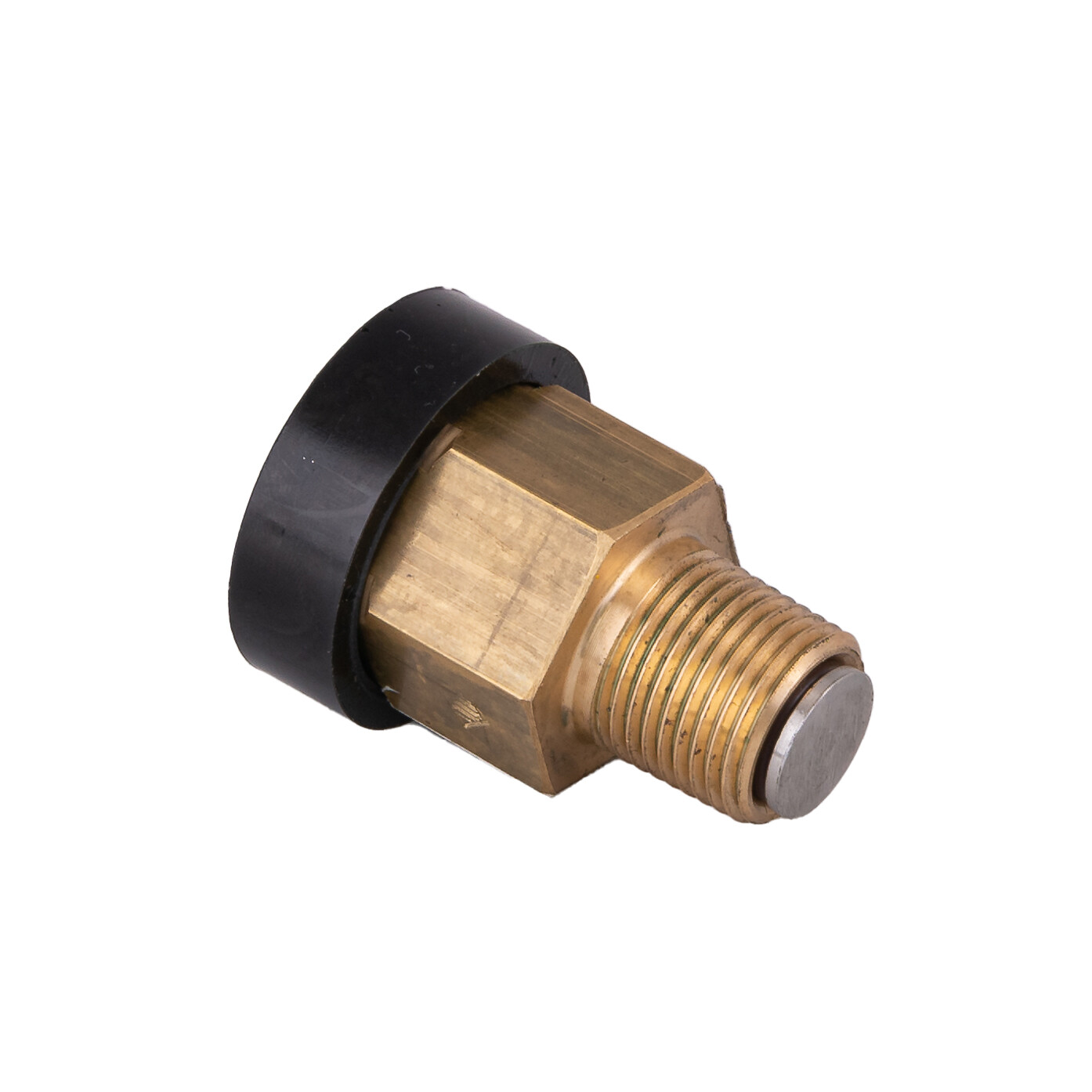

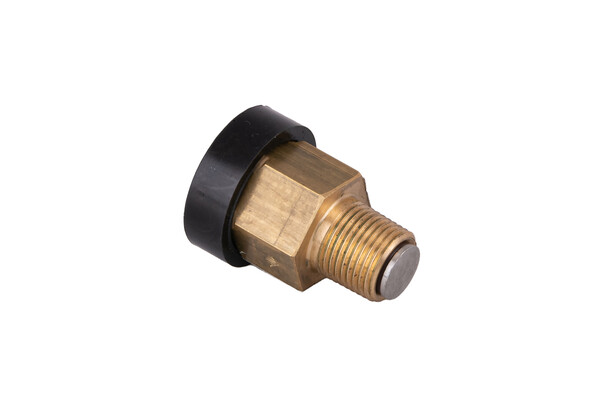

VB100U: ½" BSP and NPT Vacuum Breaker Brass, Viton A seals (35 kPa).

VB100SS: ½" BSP and NPT Vacuum Breaker S/S, Viton A seals  (1-2 kPa).

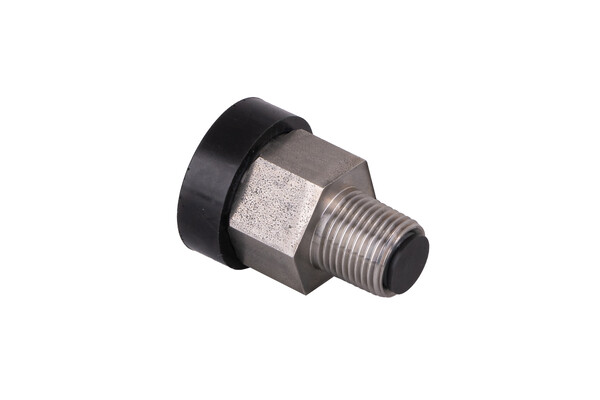

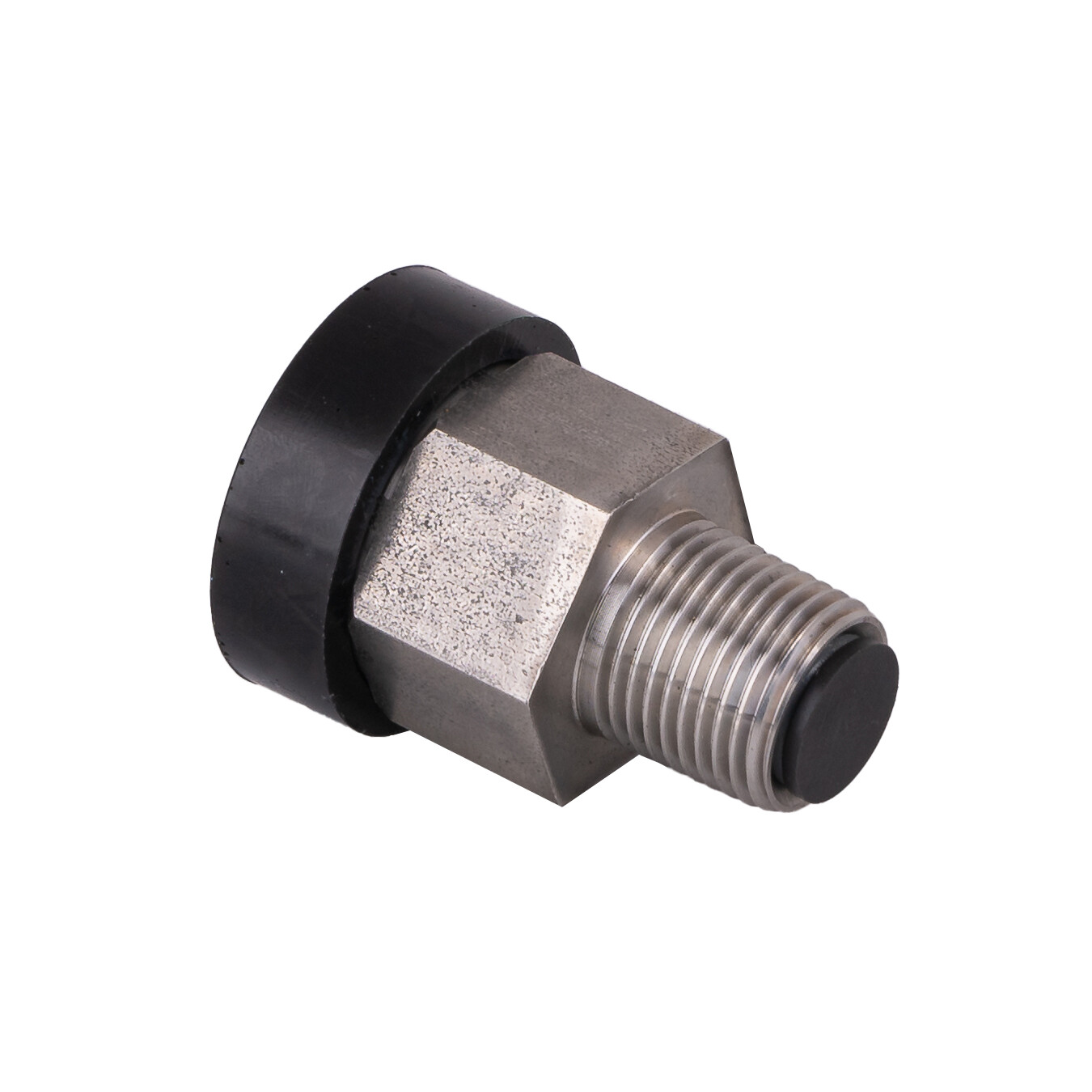

VB100SSVG: ½" BSP and NPT Vacuum Breaker S/S, Viton GFLT seals (1-2 kPa).

VB100USS: ½" BSP and NPT Vacuum Breaker S/S, Viton A seals (35 kPa).
