Coupler Swivels

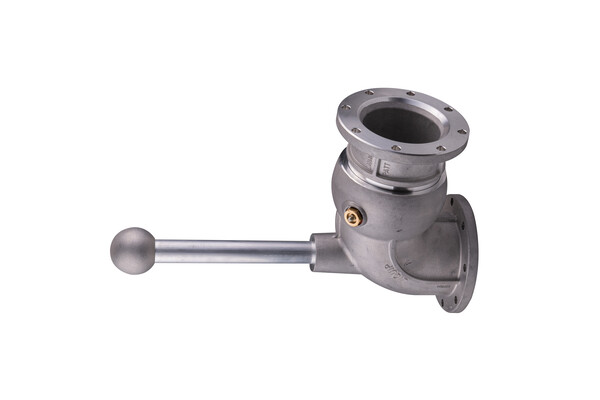

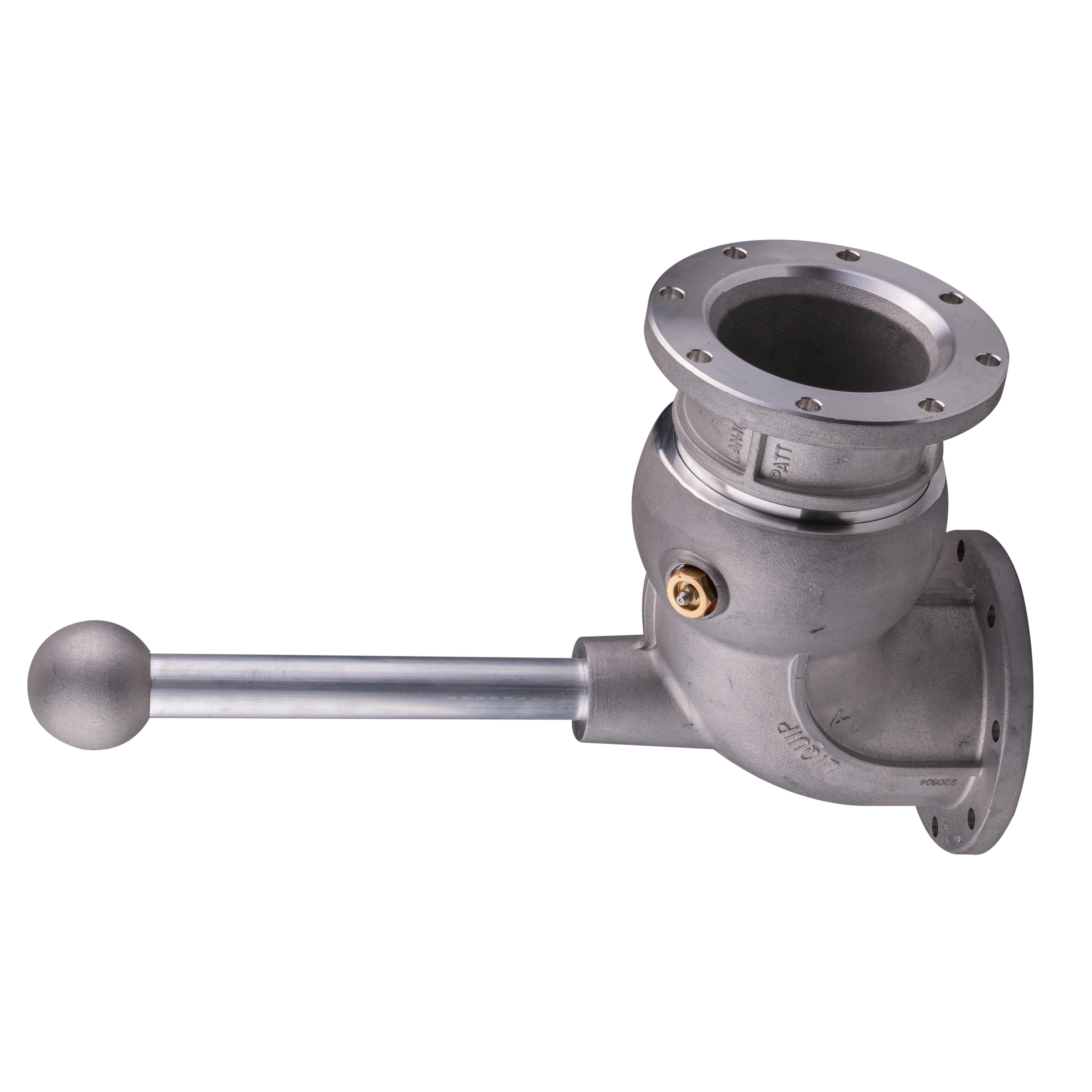

Liquip offers 90° swivels with a handle that is maneuverable for use on the coupler end of bottom-loading arm.

The VNC series allows the loading API coupler to rotate 360o in the horizontal plane so that the APIs on both the truck and terminal end align correctly for a secure connection.

Features & Benefits
  • All aluminium construction.
  • Ball and needle rolling elements for optimum axial and radial load bearing with minimum
    friction.
  • Grease nipple on one side with relief valve mounted opposite for efficient removal of old grease and debris.
  • Dual o-rings for product seal and dust seal respectively.
Technical Information

Handle
Handle can be ball-type or D-handle.

Mounting
Both ends are 100mm (4") TTMA.

Working pressure
1,000 kPa (145 PSI).

Test pressure
1,500 kPa (218 PSI).

Operating temperature
-40° to +90°C (-40° to +200°F) for Viton GFLT grade.

Seals
Viton GFLT grade o-rings (Teflon or other special seals available on request).

Weight
6.0 kg (13lb).

Ordering Information

VNC-A4VG: 4" coupler swivel with Viton GFLT seal.

VNC-A4T: 4" coupler swivel with Teflon seal.

VNC-A4AVI: 4" coupler swivel with Viton GFLT seal & Aviation grease.

VNC-A4DVG:4" coupler swivel with Viton GFLT seal & D-handle.

Associated Equipment

VSS-4: Straight spool piece 200mm (8”) long

VSA-4: 15° angled spool piece 200mm (8”) long.

VSA4-SHORT: 4" aviation selective loading arm coupler spool (15o angle) - 122mm length.

LBV450VG: Butterfly Valve to suit 4” TTMA flange

All Liquip API bottom loading couplers
