Flanged Spools

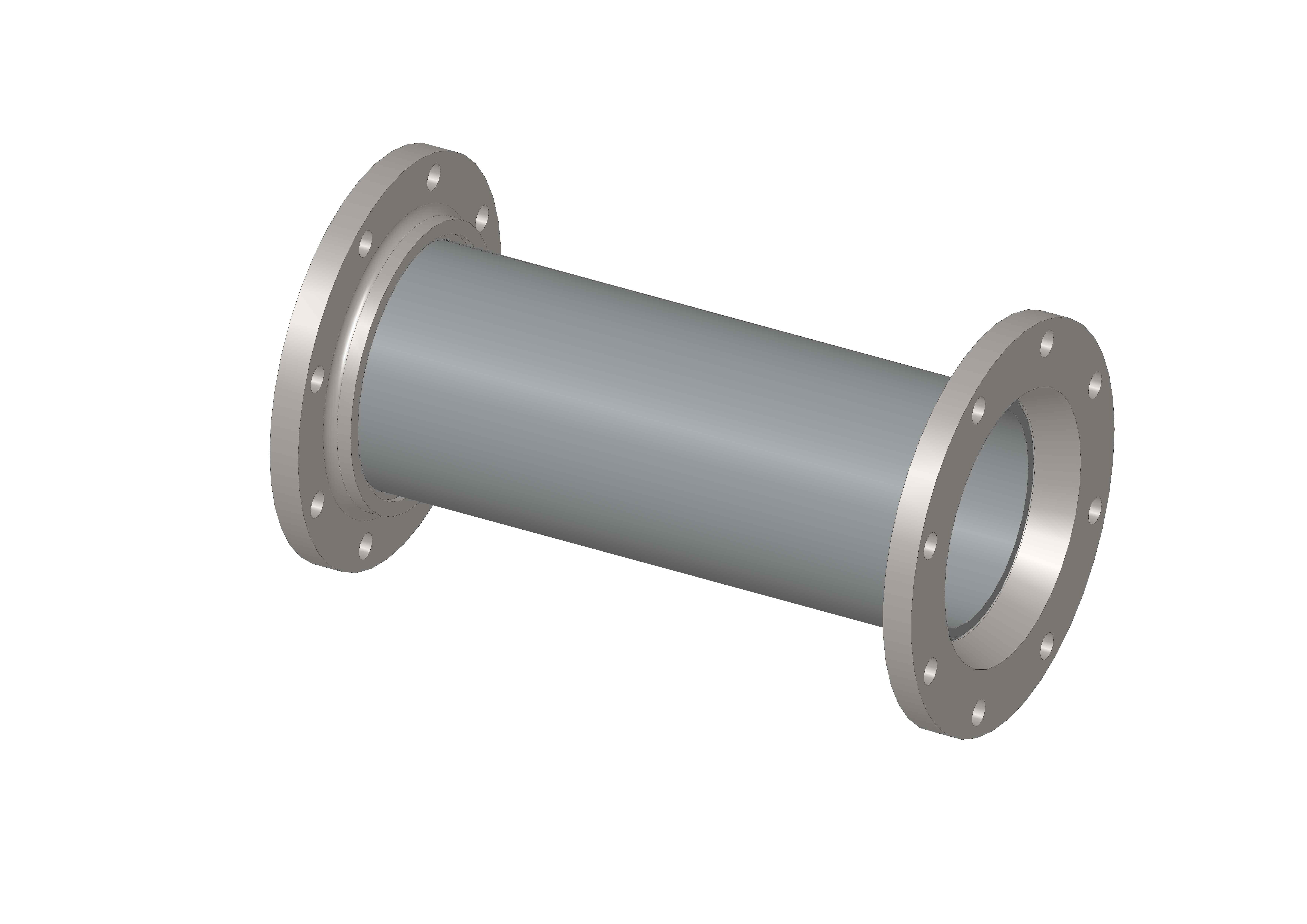

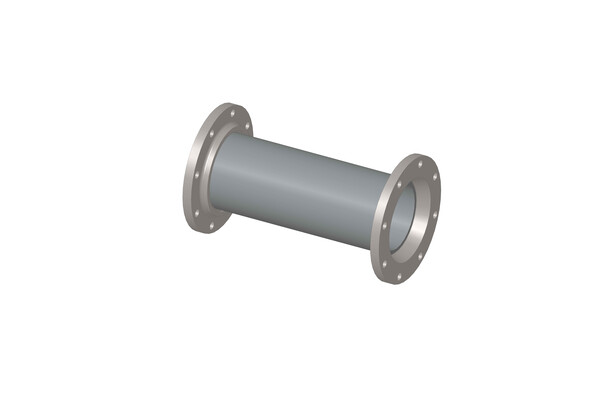

Liquip offers a range of flanged spools which are used on loading arms between swivel joints, riser pipes, drop hoses and couplers.

Liquip spools can be manufactured out of aluminium or steel and can incorporate any flanges, including TTMA or ANSI flanges to suit any loading arm application.

Suitable for :

NB: The use of non-genuine parts can have an impact on the longevity, safety and performance of your loading arm.
Contact Liquip International to ensure you are using genuine spare parts.

Features & Benefits
  • Spools are custom made out of steel or aluminium pipe.
  • Range of fittings available including TTMA and ANSI 150# flange.
  • Spools can be made to any length to suit loading arm applications.
Ordering Information

*Liquip offer a range of standard length spools as per the table below or can customise spool lengths to suit specific requirements.

Item Description Length Flange to Flange (mm) Material Flange Size Flange Type Common Uses
LIQL219A-1280 SPOOL AL LOAD ARM HORIZONTAL 4" 1280mm 1280 Aluminium 4" TTMA Horizontal Spool
LIQL219A-1480 SPOOL AL LOAD ARM HORIZONTAL 4" 1480mm 1480 Aluminium 4" TTMA Horizontal Spool
LIQL219A-680 SPOOL AL LOAD ARM HORIZONTAL 4" 680mm 680 Aluminium 4" TTMA Horizontal Spool
LIQL219A-880 SPOOL AL LOAD ARM HORIZONTAL 4" 880mm 880 Aluminium 4" TTMA Horizontal Spool
LIQL219P-1130 SPOOL M/S LOAD ARM HORIZONTAL 4" 1130mm (PRIMED) 1130 Mild Steel 4" TTMA Horizontal Spool
LIQL220A-1350 SPOOL AL LOAD ARM DROP 4"1350MM 1350 Aluminium 4" TTMA Drop Spool
LIQL220A-1800 SPOOL AL LOAD ARM DROP 4"1800MM 1800 Aluminium 4" TTMA Drop Spool
LIQL220A-2250 SPOOL AL LOAD ARM DROP 4" 2250MM 2250 Aluminium 4" TTMA Drop Spool
LIQL220A-450 SPOOL AL LOAD ARM DROP 4" 450MM 450 Aluminium 4" TTMA Drop Spool

If the above standard spool sizes do not suit your application. Contact Liquip for any loading arm requirements so that Liquip can manufacture spools to suit your applications.
