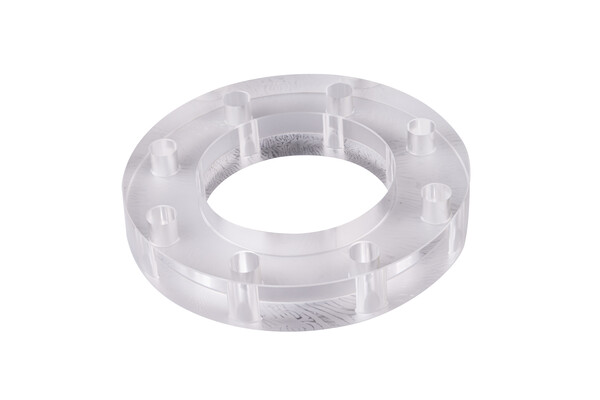

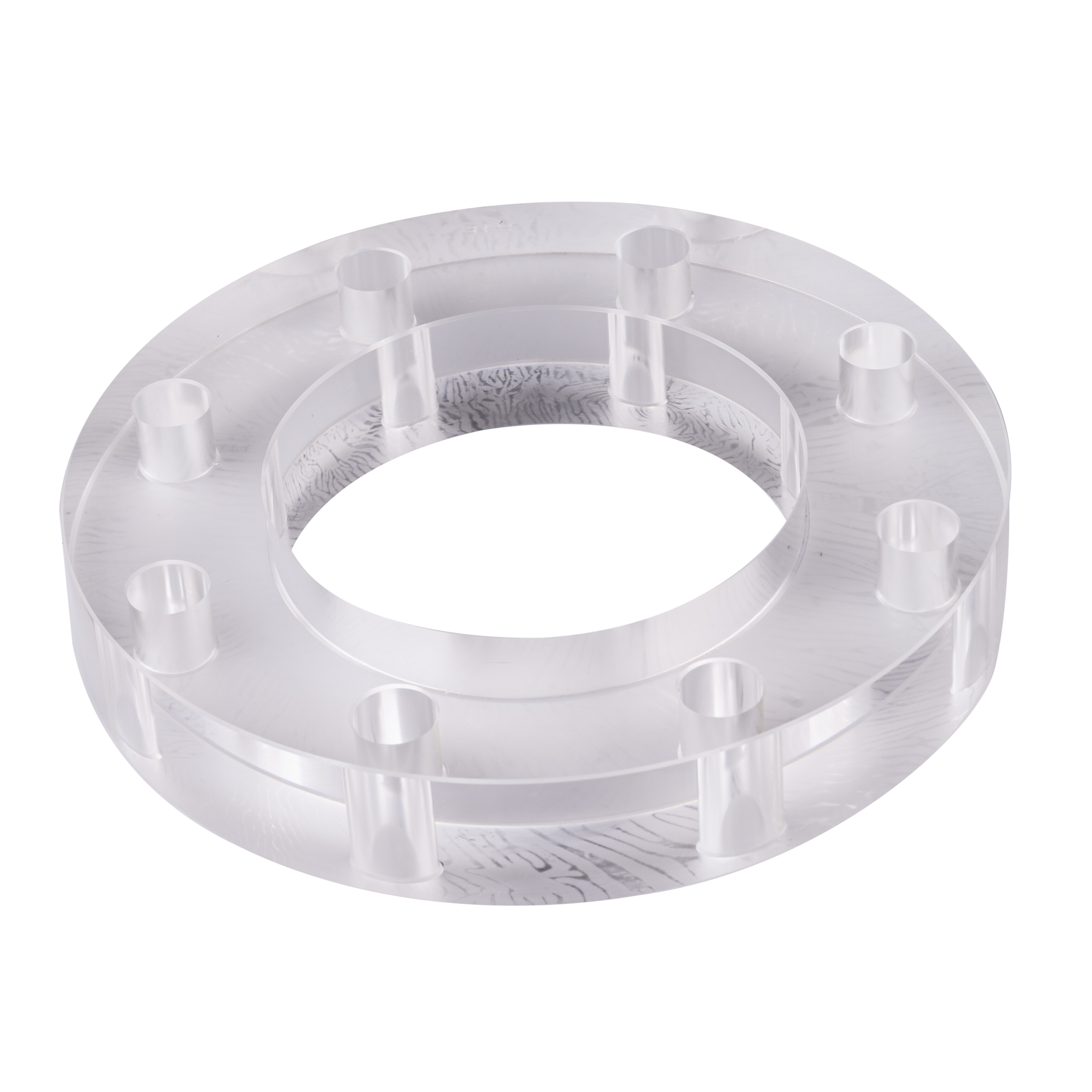

4" ASME Sightglass Flanges

ANSI Sightglass flanges generally bolt below the Liquip balance mechanism in terminal systems and provide the ability to view product in the pipework to determine if a loading arm has product present or if it has been drained.

Suitable for :

Features & Benefits
  • 4” ASME 150# flange bolt pattern.
  • 40mm thick.
  • Flange is 228mm (9") O.D.
  • Each sight glass is date stamped.
  • Provides visual identification of product.
Technical Information

Design pressure
1,000 kPa.

Maximum working temperature
+80°C.

Weight
1.2kg.

Ordering Information

API-SG-150: 4" ASME Sightlgass flange (ASA150 - 40mm thick).
