LBM800 Rotation Limiters

Liquip design and manufacture rotation limiters for use on the LBM800 loading arm balance mechanism. Liquip's LBM800 rotation limiters are used in applications where full rotation of the loading arm is undesirable.

Rotation limiters offer a simple yet effective method to prevent installed arms from clashing with existing objects or equipment in the loading gantry and/or to prevent damage to loading arm cabling or tracing that could caused through over extension of the loading arm.

LBM800 rotation limiters are supplied ready to install on either upward or downward feed balance mechanisms.

Suitable for:

Features & Benefits
  • Stainless Steel construction for durability and extended service life.
  • Two-piece design (LBM800-RLB) or Three-piece deisgn (LBM800-RLU) for quick and simple installation on new or existing arms.
  • Easily retrofitted to existing loading arms with an LBM800 balance mechanism.
  • Prevents installed arms from clashing with existing objects or equipment in the loading gantry.
  • Prevents damage to loading arm cabling or tracing that could caused through over extension of the loading arm.
Ordering Information

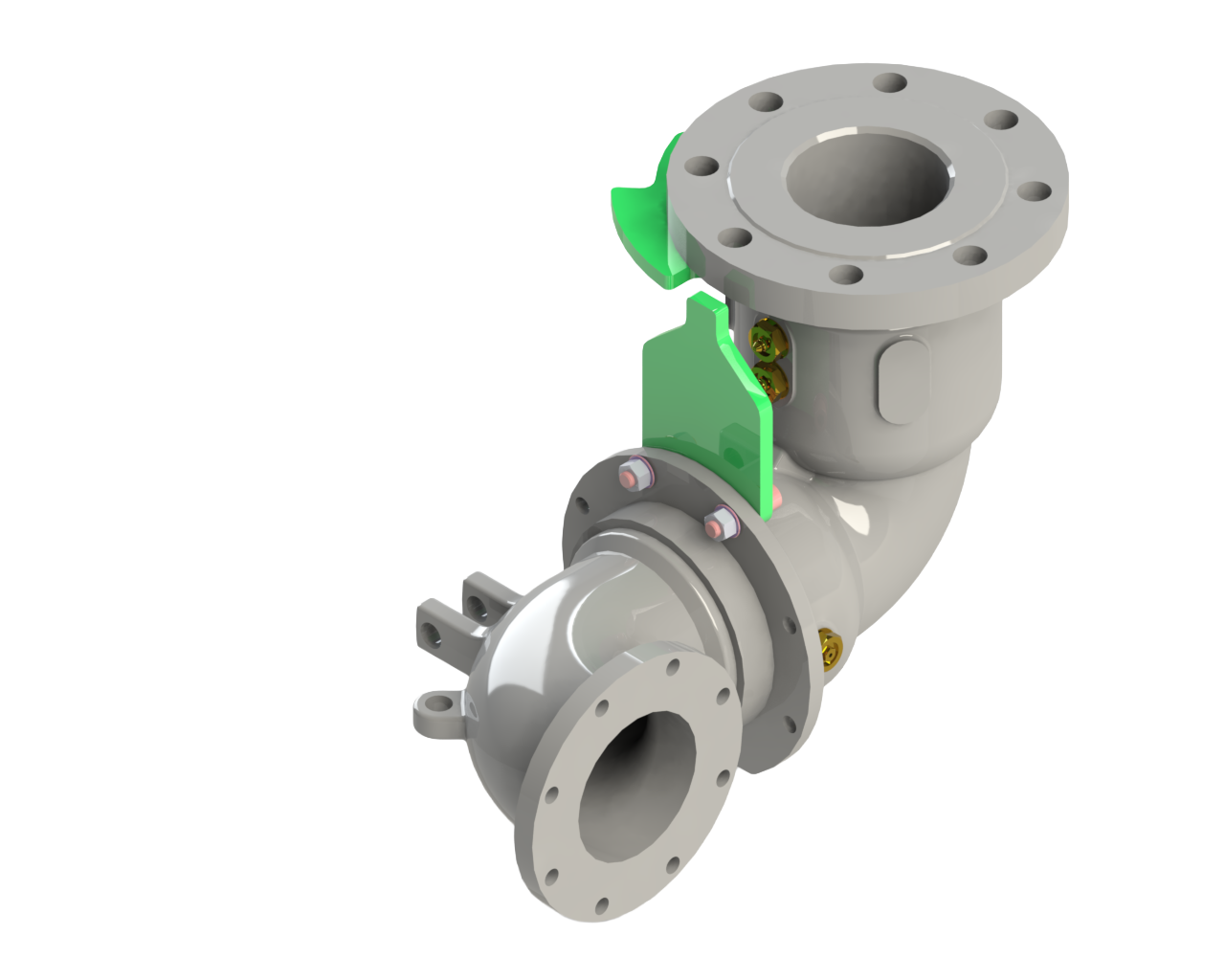

LBM800-RLB: S/S Rotation Limiter to Suit LBM800 (Downward feed).

LBM800-RLU: S/S Rotation Limiter to Suit LBM800 (Upward feed).

Associated Equipment

LBM800: Standard Balance Mechanism.

LBM800C: Chemical Balance Mechanism.

LBM800AVI: Aviation Balance Mechanism.

LBM800-LR: LBM800 Long Reach (Top Load Balance Assembly).

LBM800-1Z: LBM800 with 2 x 2800N Struts.

LBM800-2Z: LBM800 with 2 x 5200N Struts.

LBM800-3Z: LBM800 with 2800N & 5200N Strut.
