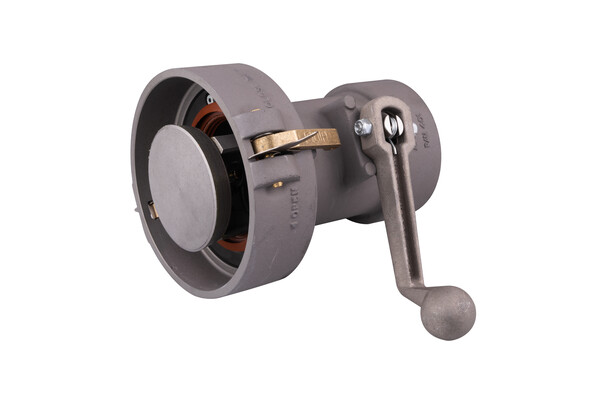

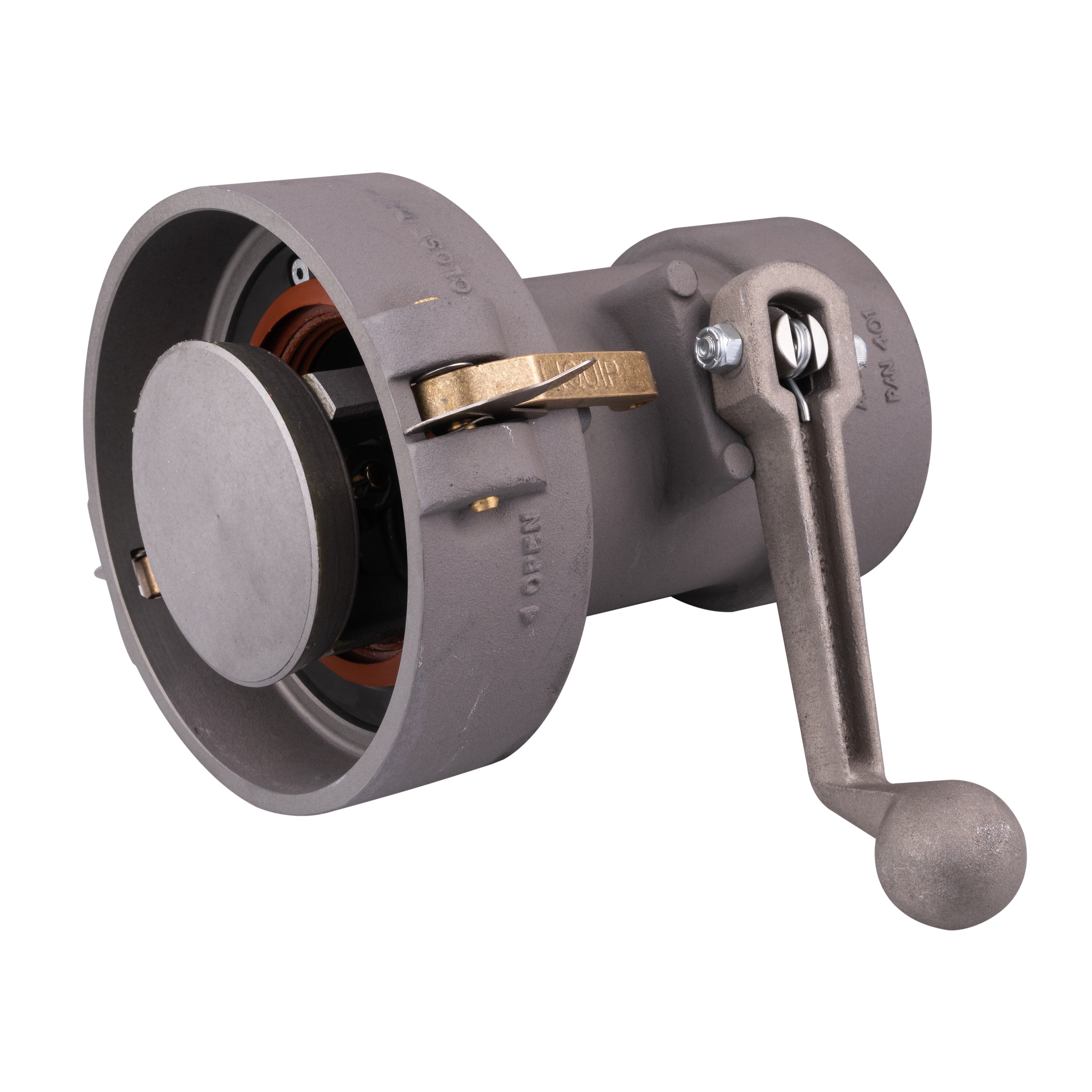

Rail Car API Couplers

A drybreak coupler intended for gravity discharge only to fit API standard bottom loading adaptors. Suitable for unloading rail cars or use on jumper hoses to pumping systems

Features & Benefits
  • Lightweight simple & inexpensive option to standard API bottom loading coupler.
  • Quick and easy disassembly process.
  • Cam levers securely clamp the coupler onto API adaptor.
  • Opening the operating handle will open both poppets on the coupler and adaptor.

Technical Information

Maximum coupling pressure: 350kPa.

Product retention to: 500kPa.

Thread outlet:100mm BSP female

Bore: 100mm bore throughout.



Ordering Information

APIRC: 100mm Female API rail coupler.

Associated Equipment

LBV450VG: 4" Butterfly Valve, Viton GFLT seals.

BF4-SG-25: 4" TTMA sightglass flange, 25mm thick.

BF4-SG-40: 4" TTMA sightglass flange, 40mm thick.

0657V: 4: TTMA Viton Gasket.
