700ESL
Design Parameters
Dimensions
Materials
| Size In Inches (Nominal) | 2" | |
|---|---|---|
| A | Top of body to centerline of elbow | 9-9/16" |
| B | Centerline of elbow to end of elbow | 2-3/4" |
| C | Distance across cam arms when closed | 4-3/8" |
| C1 | Distance across cam arms when open | 8" |
| D | Centerline of stem to end of handle | 4-5/8" |
| E | Diameter of coupler end | 3-33/64" |
| F | Length of unit | 11-3/16" |
| G | Centerline of coupler to outside of handle | 3-5/8" |
| H | Pipe thread (NPT) | 2" |
| J | Distance across flats of octagon | 3" |
Parts Breakdown
1700ES
Dimensions
Parts Breakdown

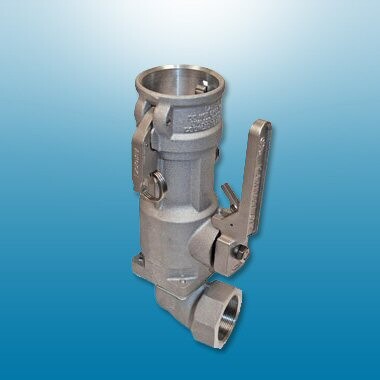

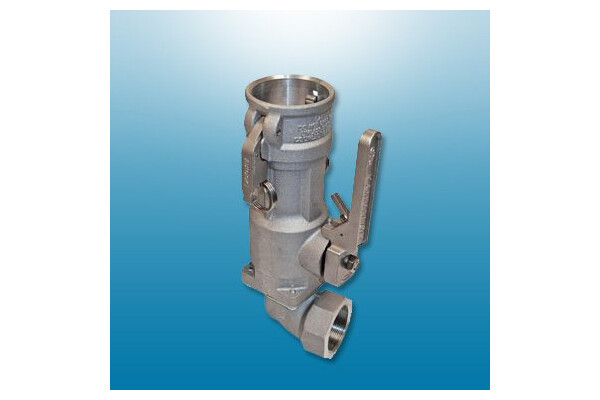

2” ES KAMVALOK COUPLER PARTS LIST
Temperature/Pressure Chart
Kamvalok Operations
Approvals
| AAR Number | Description |
|---|---|
| E129504 | 1600AN Series Kamvalok Adpater – Threaded |
| E129505 | 1600ANF Series Kamvalok Adapter – Flanged |
| E129507 | 634B/733DCL Series Kamlok/Autolok Dust Caps |
| CRN Number | Region | Description |
|---|---|---|
| OA4911.5R1 | Ontario | 1.5”, 2”, 3” Aluminum and SST Kamvalok |
