1600AN Series Kamvalok Adaptor

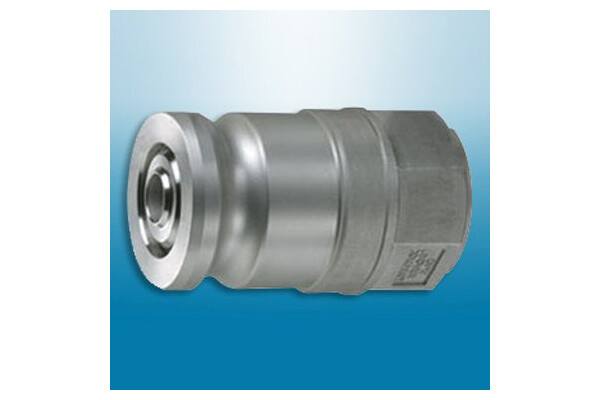

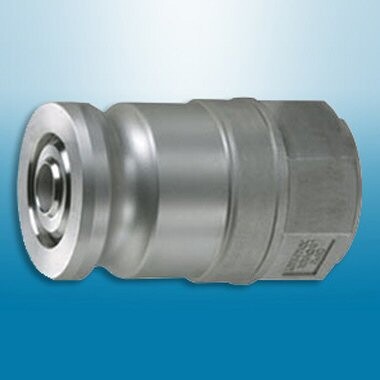

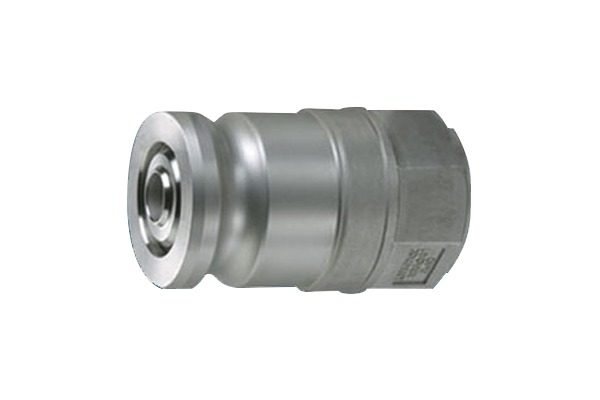

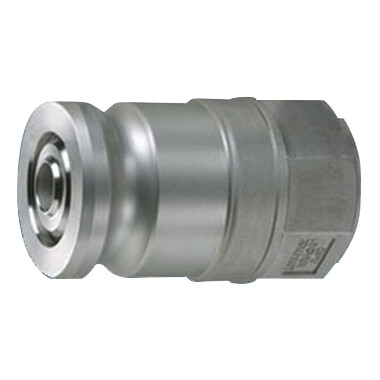

The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok® Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and a tight seal.

Why Use Kamvaloks?

Kamvalok Applications

Features & Benefits
  • Available in 1 ½”, 2” & 3” Sizes
  • Heavy-Duty Construction – Available in aluminum, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel)
  • Female Threads – Can be fitted to either a male pipe end or to a hose fitting
  • Spring-Loaded Poppet Design – Assures fast closing and a tight seal
  • Wide Range of Seals Available – Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®
  • Single Piece Design – Eliminates a possible leak path.
  • Spill Prevention – Poppet-actuated design can only be opened with a Kamvalok® coupling; designed to provide a tight seal when closed.
  • Reliability of Operation – The simple spring-loaded poppet design and heavy-duty construction provide for reliable, long-life operation.
  • Optimum Flow Rate – Even flow and low pressure drop are achieved by a built-in deflector that reduces turbulence.
Technical Information

Available sizes
Available in 1½”, 2" and 3” Sizes.

Housing Materials
Available in aluminium, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel).

Seal Materials
Range of seals including: Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®.

Thread
Female Threads – Can be fitted to either a male pipe end or to a hose fitting.

Dimensions



  1 1/2" 2" 3"
A 4-3/4" 4-15/16" 6-17/32"
B 2-1/2" 3-1/4" 4-1/2"
C 1-1/2" 2" 3"
D 2-21/32" 3-1/4" 4-7/8"

Repair Kits

Coming soon

Parts Breakdown

Coming soon

Temperature/Pressure Chart

chart-1700dl-d2000-temp-pressure

Flow Chart

Coming soon

Temperature Chart

Coming soon

Kamvalok Operation

Approvals

AAR Number Description
E129504 1600AN Series Kamvalok Adpater – Threaded
E129505 1600ANF Series Kamvalok Adapter – Flanged
E129507 634B/733DCL Series Kamlok/Autolok Dust Caps


CRN Number Region Description
OA4911.52 Alberta 1.5”, 2”, 3” Aluminum and SST Kamvalok
OA4911.5R1 Ontario 1.5”, 2”, 3” Aluminum and SST Kamvalok

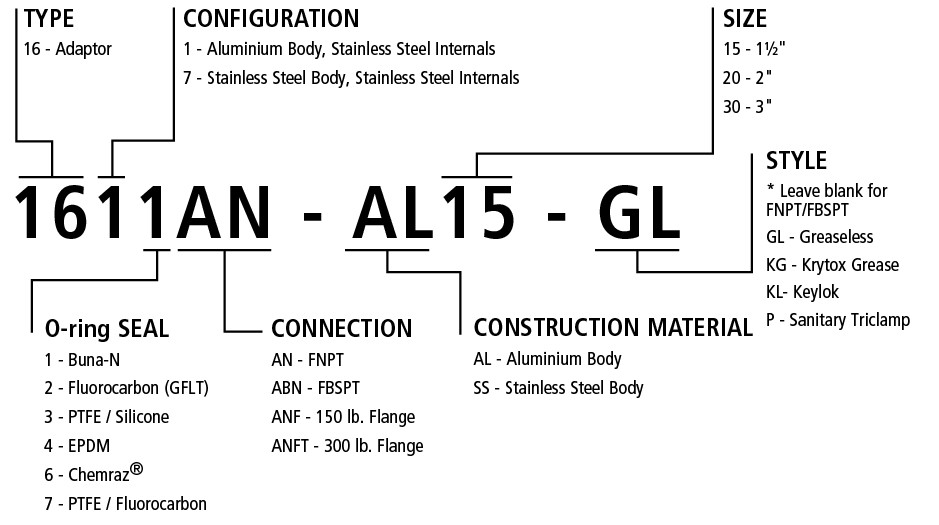

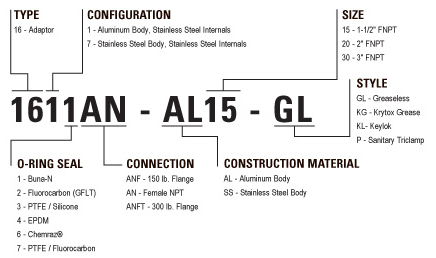

Ordering Information

Common Models

1612ABN-AL15: 1½" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.
1611ABN-AL20: 2" Kamvalok Adaptor, Aluminium, Buna, BSPT thread.
1612ABN-AL20: 2" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.
1612AN-AL20: 2" Kamvalok Adaptor, Aluminium, Viton, FNPT thread.
1613ABN-AL20: 2" Kamvalok Adaptor, Aluminium,  TFE/SIL, BSPT thread.
1612ABN-AL30: 3" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.

1672ABN-SS15: 1½" Kamvalok Adaptor, SST, Viton, BSPT thread.
1672AN-SS20: 2" Kamvalok Adaptor, SST, Viton, FNPT thread.
1672ABN-SS20: 2" Kamvalok Adaptor, SST, Viton, BSPT thread.
1672AN-SS30: 3" Kamvalok Adpator, SST, Viton, FNPT thread.
1673ABN-SS30: 3" Kamvalok Adaptor, SST, PFTE, BSPT thread.

Full Range



1600 Series

For the KAMVALOK 3” Adaptor you will need 4” Camlock Dust Cap and 3” Pipe Thread.

For the KAMVALOK 2” Adaptor you will need 2 ½ ” Camlock Dust Cap and 2 ½ ” Pipe Thread.

For the KAMVALOK 1 ½ ” Adaptor you will need 2” Camlock Dust Cap and 1 ½ ” Pipe Thread.
