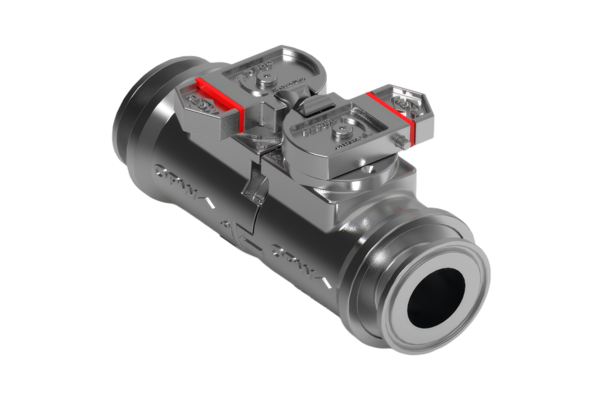

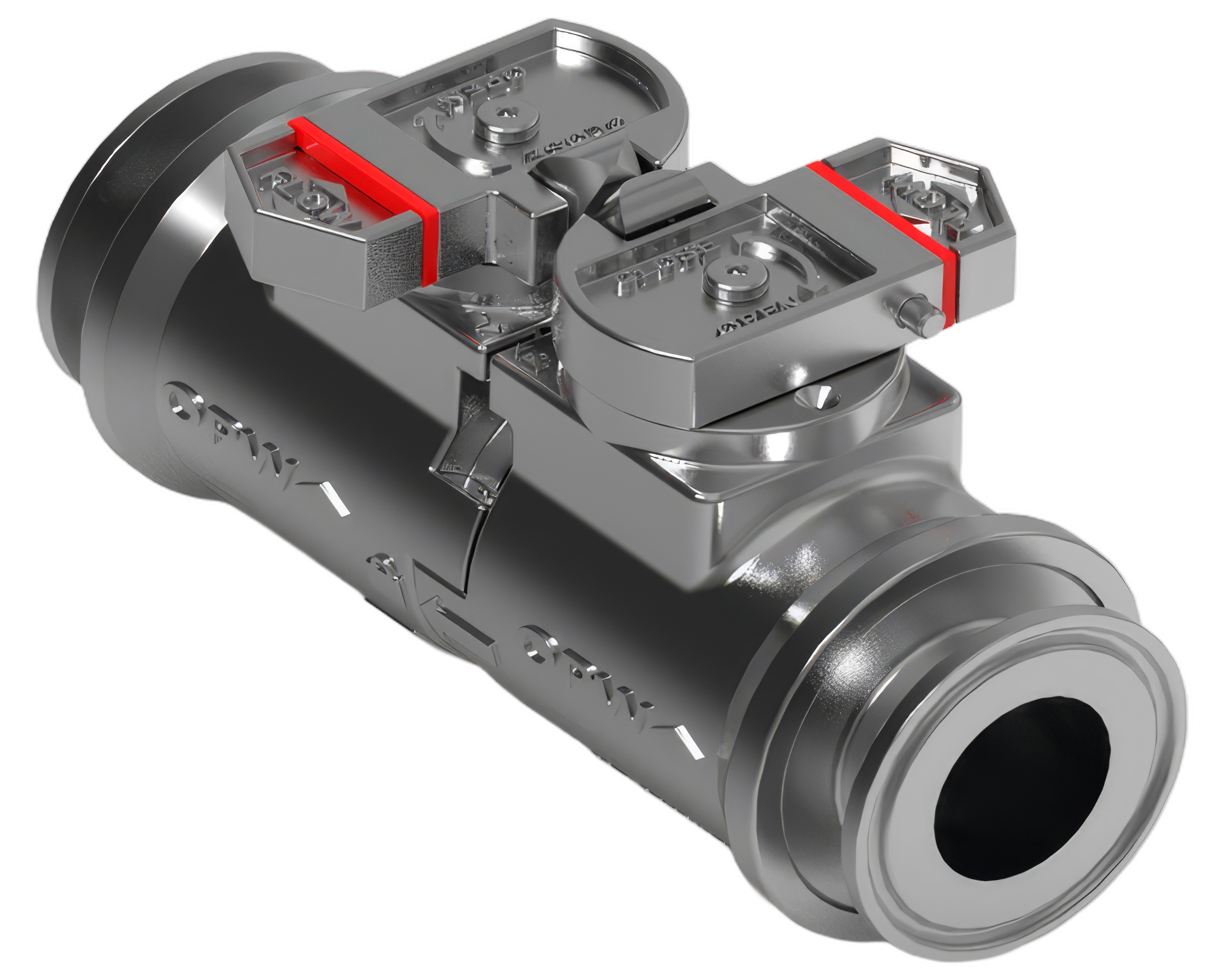

Hyperflow™ Data Centre Coupler

Advanced Performance for High-Flow Data Center Applications.
The HyperFlow™ High-Flow Coupler is engineered for safety and reliability in highperformance liquid-cooled data center applications.

With a Cv of 48 and maximum flow rate of 100 gpm, HyperFlow is designed for maximum flow with minimal pressure drop.

Connection is fast, easy and secure, with a 2X Safety Locking System that eliminates spills by preventing accidental decoupling and opening.

Features & Benefits
  • Full port design aligns with the hose diameter to provide a Cv rating of 48 and a maximum flow rate of 100 gpm.
  • Coupler halves connect easily with a simple twist, ideal for overhead applications and tight spaces.
  • The patent-pending system consists of two identical coupler halves that interlock,held together with four locking tabs.
  • 2X Safety Locking System prevents disconnected valves from accidentally opening, and connected valves from accidentally disconnecting.
  • Coupler body conforms to the pipe diameter, maximizing available space in the server cabinet and server room.
  • Each coupler includes red and blue temperature indicator bands, which can be added to the handle for easy identification of the fluid line temperature.
Technical Information

Performance Specification:

Hyperflow™ Connected/Disconnected
Coupler Size Valve Opening  Fluid Loss at Disconnect Flow Rate
GPM		 Flow Rate
LPM		 Flow Rate
Cv		 Max Operating Pressure BAR Max Operating Pressure PSI Min Burst Pressure BAR Min Burst Pressure PSI
1" 1.049" 3 ml 100 379 48 10 150 20 300


Seal Specification:

  Temperature Range
Material Fahrenheit° Celsius°
EPDM-P -40 to +302 -40 to +150


Technical Drawings:

Product Information:

  Overall Length Body Diameter Overall Height
Part Number Body Size End Connection* In mm In mm In mm
HF16A-0104 1" FNPT 3.21 81.53 2.34 59.44 3.13 79.50
HF16F-0104 1" Sanitary Flange 3.27 83.06 2.34 59.44 3.13 79.50
HF16H-0104 1" Hose Shank 4.97 126.24 2.34 59.44 3.13 79.50

*Custom options are available. Contact your Sales Representative for details.

Flow Rate vs. Pressure Drop
