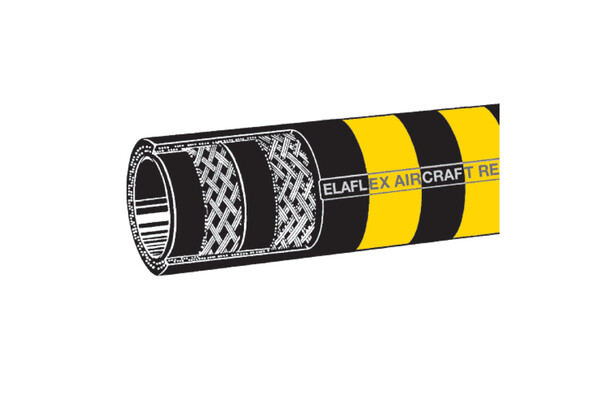

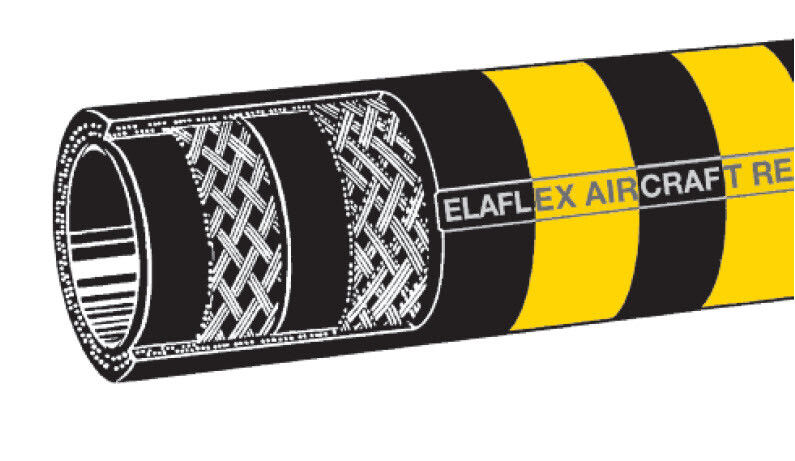

Elaflex Aviation Hose

Yellow band aircraft refuelling hoses, suitable for all aviation gasoline and jet fuels (JET-A1), anti-icings fluids and motor oils.

Specified by almost all major oil companies.

NOTE: Not for suction. Burst pressure > 80 bar / 1200psi.
the hose does not kink with a permanent pressure of at least 0.5 bar.

Note: Liquip can only ship Elaflex Parts to Australia, New Zealand and the Pacific Islands.

Features & Benefits
  • Elaflex standard type "HD-C" with two textile braids.
  • Light weight, flexible hose for all purposes.
  • Holds various European, Australian and American approvals.
  • Full coils of hose are offered or cut lengths can be provided upon request.
Technical Information

Temperature Range
-30oC up to +70oC.

Electrical Resistance
Between 103 and 106 Ohm.

Lining
Nitrile rubber (NBR) seamless tube, anitstatic, no fuel solubility.

Reinforcement
Textile braids without metallic strands.

Cover
Chloroprene (CR), electrically conductive, ozone and flame resistant, highly abrasion resistant.

Approvals
Approved to EI1529 C, EN1361 (European), AS2683 (Australian), NFPA 407 and API1529 (American) standards.

Ordering Information
Part Hose Size ID (inches) Hose Size ID (mm) Hose Size OD (mm) Working Pressure (bar) Test Pressure (bar) Max Vacuum (bar) Min Reel Diametered (mm) Coil Length Options (m) Approx Weight (kg/m)

3343 1 25 37 20 40 0.5 200 30, 40, 50,60,80 0.8
3344 1 ¼ 32 44 20 40 0.4 225 30, 40, 50,60,80 1.0
3345 1 ½ 38 51 20 40 0.3 270 30, 40, 50,60,80 1.2
3346 2 50 66 20 40 0.3 400 30, 40, 50,60,80 1.9
3347 2 ½ 63 79 20 40 0.2 600 30, 40 2.4
3348 3 75 91 20 40 - 600 40 2.8
3349 4 100 117 20 40 - 900 40 3.7
