Portable Fuel Storage SBT

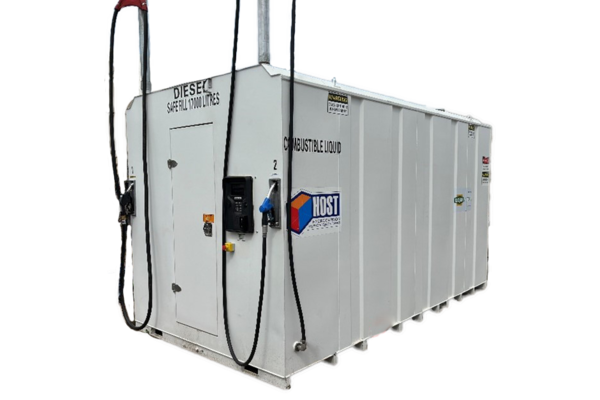

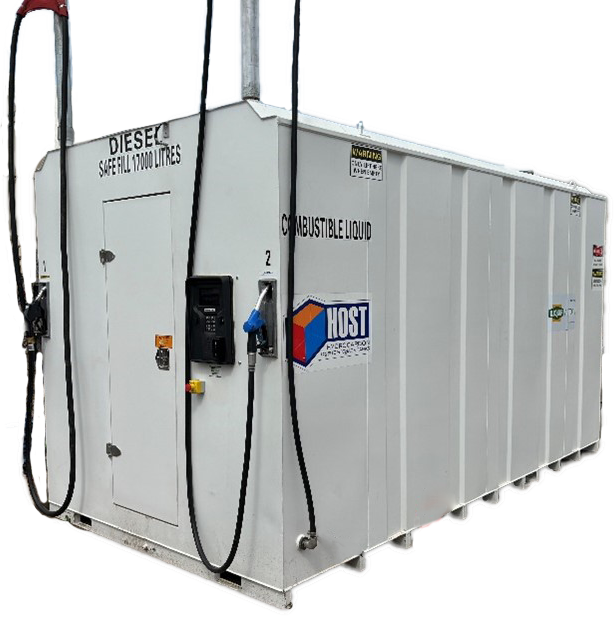

The PFS Self-Bunded Diesel and Diesel/AdBlue tanks offer a highly efficient, space-saving storage solution, perfect for transport and civil construction depots where space is limited.
Designed for durability and ease of use, these self-bunded static storage tanks reduce installation costs, require minimal maintenance, and deliver significant time and cost savings.
Each tank can can be customised with various options, including pumps ranging from 60LPM - 100LPM, Meters, Fuel Management Systems and Automatic Tank Gauging.

►Available in 13,000,17,000 & 23,000 litre sizes
►Option for an integrated AdBlue tank
►110% containment removes the need for external bunding
►Easily accessible customer reconciliation with built-in FMS
►Ladder access to dipsticks
►Designed and built to Australian Standards
►Range of Meters, FMS’s, & ATG’s can be optioned

Features

Fittings

► DN50 (2”) Flanged 150# Fill Point with Full Bore Ball Valve/Non Return Valve/Male Camlock Fitting/Dust Cap/Mechanical Overfill Protection Valve
► Overfill Alarm 12V - Visible and Audible
► Suction point - DN50 (2”) Flanged 150# Suction Point with Anti Syphon/Foot Valve Assembly
► Spare fittings on top of tank suitable for instrumentation
► Dipstick for Fuel Volume and separate Interstitial dip stick accessible by the rear ladder
► Vent pipe and Vent
► Decals and rear Access Ladder
► Lockable Access door to pump bay
► Paint – Colour White, Hemple dual coat paint with paint thickness to 180μ and sand blasting to SA 2.5 Standards

Versatility

► Incorporated Forklift Tyne pockets in front and rear of Fuel tank for easy offloading and positioning on site
► Hi-Mast Assembly for hose safety and reduction in wear
► Wet tested pump and fuel management system, plug and play setup enabling fast setup
► Available with external 3 pin plug 240V AC connection
Flowrates
► Efficient diesel pumping from 60lpm, 80lpm or 100lpm
► Adblue pumping at 35lpm
► Other products – varying flowrate

Pump systems

► Diesel - 240V AC Single phase turbine or positive displacement pump systems up to 120lpm
► Adblue - 240V AC Single phase dispensing pump at 35lpm
► Other pumps depending on products

Fluids: Suitable for Diesel, Diesel/Adblue, Oils and other petrochemicals
Industries: Suited for use in General Fuel distribution, Transport, Government, Agricultural, Construction, Buses and more
Compliance: Designed and built in accordance with AS1940, AS1692 and AS1657 and UL142
