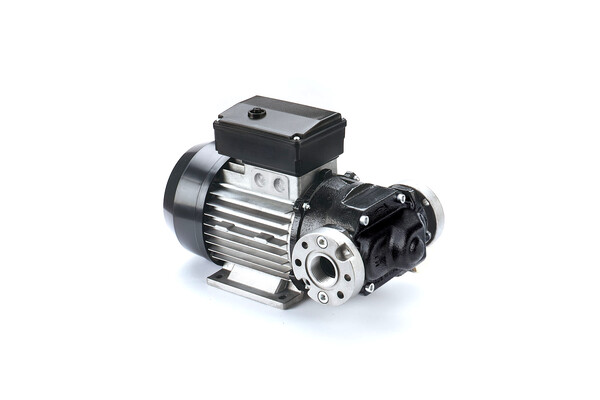

Piusi E80 – E120 Diesel AC Pump

Diesel transfer electric pump. Displacement, self-priming rotary electric vane pumps. Fitted with by-pass valve and elevated reliability seal even at low working temperatures. Compact and easy to install they are ideal for dispensers, fixed fuel transferring systems and other industrial applications.

Sturdy cast iron structure, vane pump with sintered steel rotor and acetal resin vanes, induction motor with aluminium casing. Suitable for continuous use with thermal motor overload protection.



Features & Benefits

• Flow rate up to 100 L/min
• Continuous AC operation
• Noise level below 70 dB
• Made in Italy

Ordering Information

To order please call or e-mail Liquip Victoria and quote the following part numbers:

E 80 M 70 L/min: LV - 000305000
E 80 T 70 L/min: LV - 000307000

E 120 M 100 L/min: LV - 000326000
E 120 T 100 L/min: LV - 000312000

Technical Information
CODE DESCRIPTION FLUIDS L/min gpm Singlephase motor V/Hz Three phase motor V/Hz Poer Watt Amp. max rpm

Inlet
Outlet
BSP (Inch)

 Flange Connecttion Bypass Valve Inlet filter
E80 000305000 E 80 M Diesel 70 18 230/50 - 500 3.5 1400 1 YES YES NO

E80
000307000

 E 80 T Diesel 70 18 - 400/50 550 1.6 1450 1 YES YES NO
E120
000326000		 E 120 M Diesel 100 26 230/50 - 750 5.7 1450 1 YES YES NO
E120
000312000		 E 120 T Diesel 100 26 - 400/50 750 2.2 1450 1 YES YES NO
