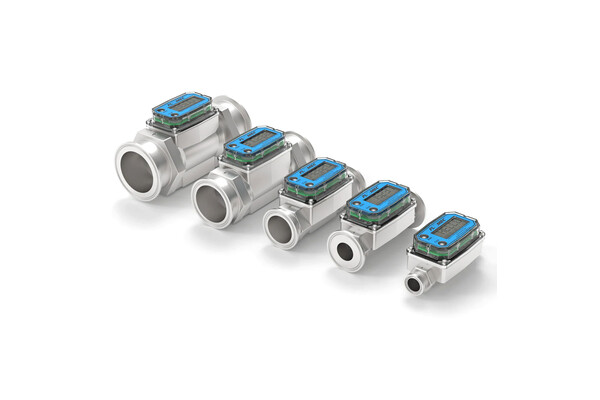

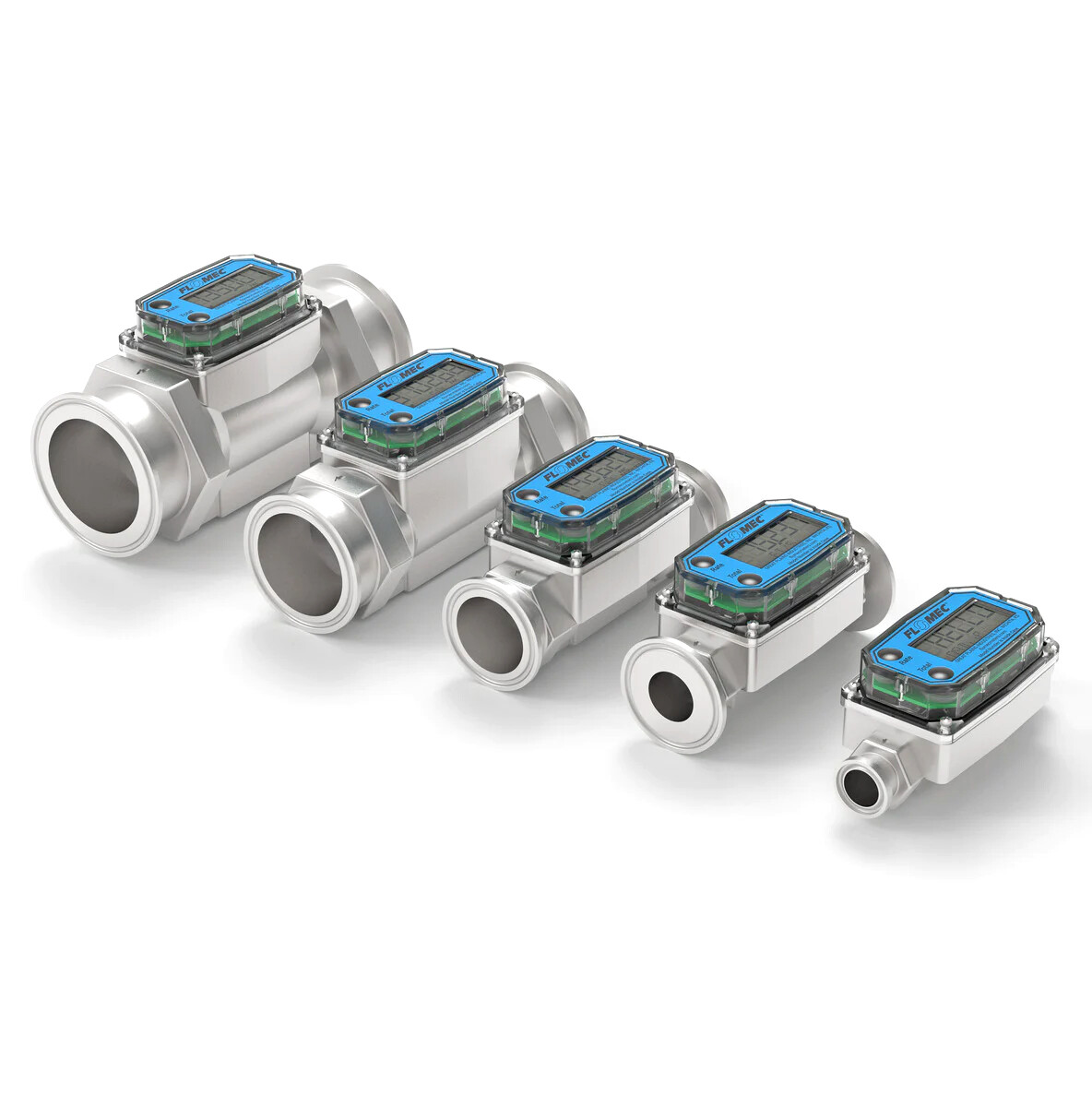

Flomec G2 Series Turbine Flow Meter

Flomec G2 Series Turbine Flow Meter

A full line of FLOMEC® G2 Series Precision Turbine Meters are available in a variety of housing materials. Rugged and dependable, the G2 Series offers:

  • Stainless Steel for most chemicals and fuel products
  • Aluminum for petroleum based products
  • Brass for most water applications
  • PVDF for aggressive chemicals



Features, Benefits & Applications

Features & Benefits

  • Meter is designed for thin fluids < 100 cp.
  • Modular design allows for use with Output Modules, Sensors and Remote Transmitters.
  • 2 Totals (Batch = Resettable, Cumulative = Nonresettable); Rate of Flow, Factory calibrated in gallons and litres. Field calibratable. Includes nonvolatile totals.
  • High accuracy meter
  • Internal parts are simple to replace for easy maintenance.
  • Lithium battery life: 5 year

Sizes & Flowrates

1/2" - 2" (15mm - 50mm) Pipe Sizes | Flows from 3.8 L/min - 760 L/min



Typical Applications:

  • Batching
  • Food & Beverage Processing
  • Blending
  • Fuel Products
  • Water
  • Monitoring Clean Fluids
  • Industrial Fluids
  • Plant Process Water
  • Plating Solutions
  • Chemical Feed Lines
  • Ammonium
  • Harsh Chemicals (Sulfuric Acid & Bleach)
Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Flomec Product Code for the specific meter version you require listed on Datasheet available for download from the resources section.

Technical Information

To view all product specifications and technical data please download the PDF Datasheet from the resources section.
