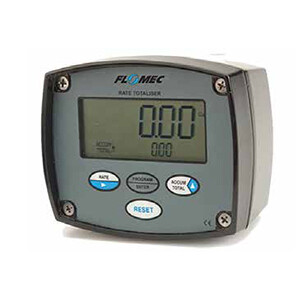

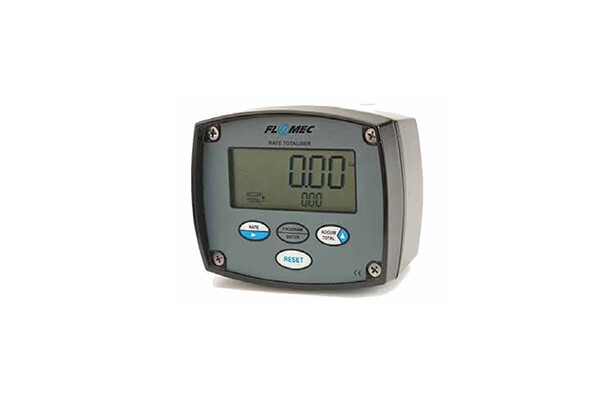

Flomec RT 40 Rate Totaliser

Flomec RT 40 Rate Totaliser

The FLOMEC® RT40 Rate Totaliser is the perfect display for users who require a simple local display with no output signals. The RT40 features a large dual-line backlit LCD, which provides optimal readability from a distance or in low-light conditions. A robust Aluminium enclosure with polycarbonate screen protector makes the product suitable for heavy duty use in mine sites, truck installations, or in any industrial setting.

The RT40 Rate Totaliser is the perfect product for safe-area applications where a local display is required, with no outputs.





Features & Benefits
  • Rugged electronic display perfect for display flow measurements in any tough environment
  • IP65 powder-coated Aluminium enclosure
  • IP67 glass reinforced nylon housing also available, providing a lower cost option while maintaining the robustness of the product.
  • Polycarbonate screen protector maintains readability of the display while protecting from impacts
  • Battery powered with 3 year life span
  • Broad operating temperature range; -20oC to +80oC
  • Two totals (1x resettable, 1x non-resettable), and one flow rate display
  • Totals and flow rate units are selectable for Litres, US Gallons, cubic Metres, kilograms, and pounds.
  • Flowrates can be displayed in /second, /minute, /hour, or /day.
  • Easy and secure programming; PIN protected with simple scrolling English prompts on screen
  • Can be direct mounted on any OM series, DP series, or TP series flowmeter.
  • Can be remote mounted in a panel, or on a wall or pipe (mounting kits purchased separately)
Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Flomec Product Code for the specific meter version you require listed on Datasheet available for download from the resources section.

Technical Information

To view all product specifications and technical data please download the PDF Datasheet from the resources section.
