Sizes
Sizes 1/8” – 3/8” (4mm-10mm) Pipe Sizes | Flows from 0.5L/hr – 550L/hr with Pulse-Out (optional PT100 Output)

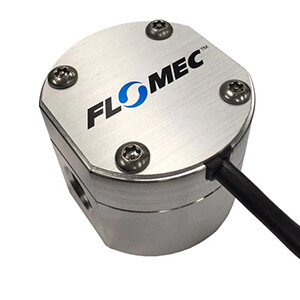

The FLOMEC® EGM004, EGM006, and EGM008 Oval Gear flow meters are well suited to measurement of very low flowrates of various additives, chemicals, fuels, lubricants, and purified waters, all in an economical compact package that is perfect for integration into machines or test equipment. Exceptional accuracy and reliability can be obtained on clean liquids of almost any viscosity.
Product selection is made easy with body, rotor, and seal materials configurable to suit your liquid application. Plus, a standard NPN hall effect output which interfaces with almost any receiving instrument, PLC or other control system.
The optional PT100 temperature output provides a multi-variable measurement device that can reduce installation costs by eliminating an external temperature sensor, improve volume measurement accuracy by allowing corrections for density changes, or provide mass flow measurements (with a suitable receiving instrument or control system).
Applications
- Diesel injector/pump test equipment
- Chemical dispensing equipment
- Diesel fuel consumption monitoring
- Demineralised / RO water dispensing
- Automotive Fluid Dispensing
Sizes
Sizes 1/2” – 3/4” (15mm-20mm) Pipe Sizes | Flows from 1L/min – 80L/min with Pulse-Out (optional PT100 Output)

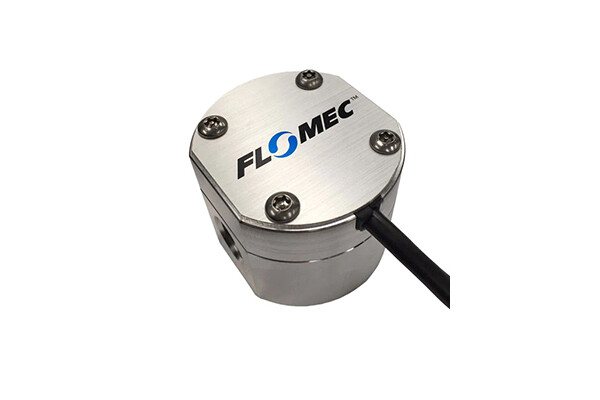

The FLOMEC® EGM015 and EGM020 Oval Gear flow meters are well suited to precise measurement of diesel, lube oils, mildly aggressive chemicals, and various other clean industrial liquids. Flowrates from 1L/min to 80L/min, combined with low pressure drop and an economical compact package, make this product perfect for integration into equipment for dispensing engine and transmission oils, brake fluid, coolant, and many other automotive liquids.
Product selection is made easy with body, rotor, and seal materials configurable to suit your liquid application. Plus, a standard NPN hall effect output which interfaces with almost any receiving instrument, PLC or other control system.
The optional PT100 temperature output provides a multi-variable measurement device that can reduce installation costs by eliminating an external temperature sensor, improve volume measurement accuracy by allowing corrections for density changes, or provide mass flow measurements (with a suitable receiving instrument or control system).
Applications
- Automotive fluid dispensing
- Chemical dispensing equipment
- Diesel fuel consumption monitoring
- Demineralised / RO water dispensing
