Flomec 01A Series Diesel Flow Meter

Flomec 01A Series Diesel Flow Meter

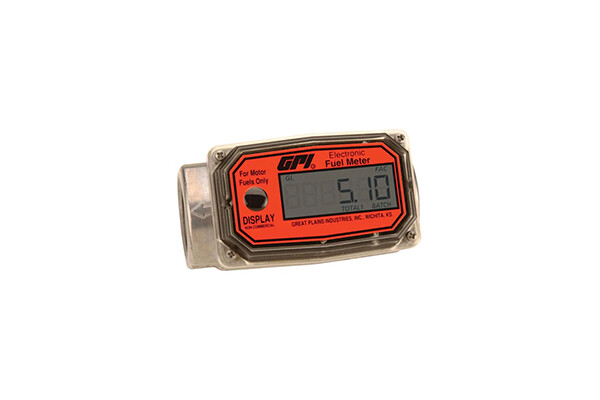

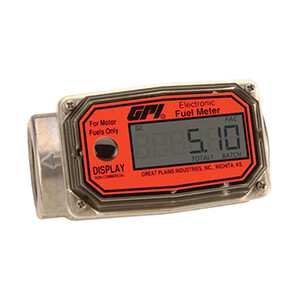

The 01A Series Diesel Flow Meter is a lightweight, accurate, and reliable turbine meter with rugged aluminum housing, sealed electronic circuitry and digital display complete with a protective rubber bumper for enhanced durability in tough environments

Accurate (within 5%) and repeatable (± 0.5%), the 01A Series Digital Diesel Meter works perfectly with diesel and kerosene which makes this digital diesel meter a versatile and economical solution.

Designed with industry in mind, the 01A series is perfect for inline use in gravity fed systems and with a wide range of fuel transfer pumps and comes factory calibrated ready for plug and play. This allows for simple installation for users in a wide variety of installation envronments and requirements.










Specifications & Applications

Specifications

  • For use with diesel only on gravity feed or electric transfer pumps
  • Turbine type meter
  • Flow range: 10 L/min to 100 L/min
  • Available in 1 inch BSPT(f) or NPT inlet/outlet
  • Maximum working pressure of 300psi (21bar)
  • Maximum batch and cumulative total: 9,999L
  • Accurate to ±5%
  • Repeatability: ±0.5%
  • Power: Two alkaline AAA batteries (Average 5 year use)
  • Operating temperature range of between -10ºC to +50ºC
  • Housing: Aluminium
  • Factory calibrated (not field calibratable)

 Applications

  • Fuel Transfer
  • Agricultural Equipment Refueling
  • Depot Refuelling
Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Flomec Product Code for the specific meter version you require listed on Datasheet available for download from the resources section.

Technical Information

To view all product specifications and technical data please download the PDF Datasheet from the resources section.
